Brakes - Squeal Noise on Light Application

GROUP 34
Brakes

Bulletin Number
34 02 94

Woodcliff Lake, NJ
February 1997
Product Engineering

This Service Information bulletin supersedes S.I. 34 02 94 (4126) dated March 1995 which should be removed and discarded from your S.I. binder. It updates the models and type of lubricant used.

SUBJECT:
Brake Squeal

MODEL:
E36 except M3, 318ti

Situation:
E36s equipped with Jurid 190 front brake pads, and built before 12/94, may exhibit a cold brake squeal, especially with light brake applications when the ambient temperature is below 40(F).

Correction:
In case of customer complaint, replace the front caliper mounts with P/N 34 11 1 163 701 and the retaining springs with P/N 34 11 1 163 801. Clean the brake pads and piston mating surface and lubricate the metal-to-metal contact points and the piston-to-pad contact surface with Bostik Never-Seez(R).

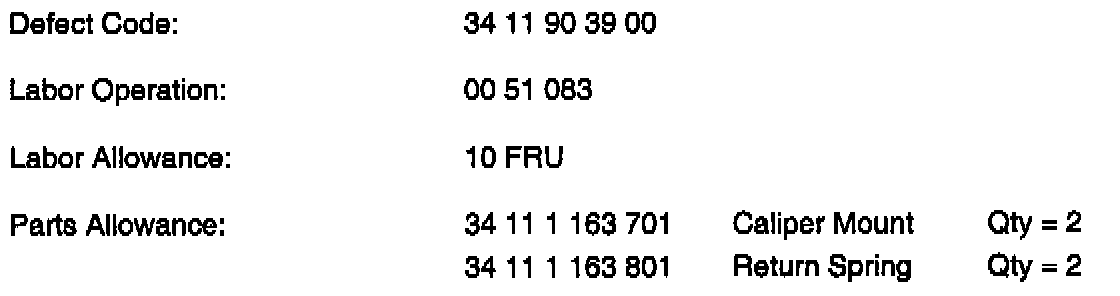

Warranty Status:
Covered under the terms of the BMW New Car Limited Warranty.
