Special Tools - E36 Tools

Group 04
Tools and
Equipment

Bulletin Number
04 12 93 (3833)

Woodcliff Lake, NJ
August 1993
Product Engineering

SUBJECT:
New BMW Special Tools

MODELS:
E36 Cabrio

Situation:
The introduction of the E36 Cabrio has only two new special tools.

Correction:








The tool will be shipped out via the BMW Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

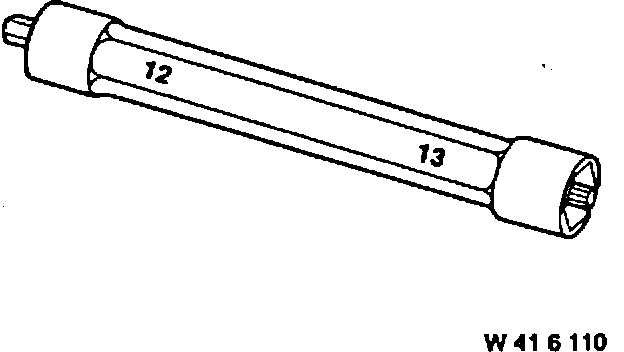

Wrench Used to adjust rear quarter window on E36
P/N 90 88 6 416 110 and E31. Also can be used to adjust engine
Introductory Price = $20.10 hood mounting screws on E31. This tool
replaces special tool 88 88 6 416 100.








The tool will "NOT" be sent out via the BMW Automatic Tool Shipment Program. It may however, be purchased through your PDC.

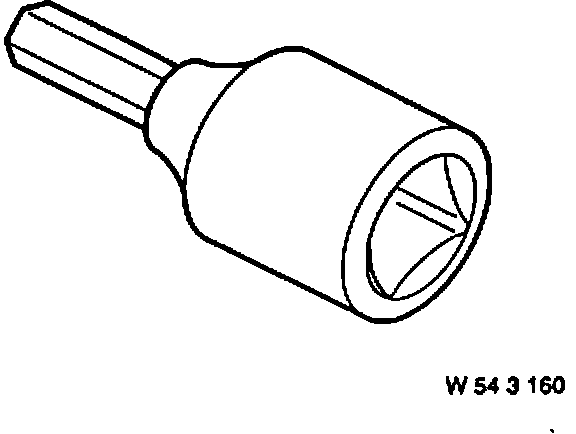

Allen Head Socket (2.5) Used to R&R the headliner tension cable on
P/N 90 88 6 543 160 the E36 Cabrio.
Introductory Price = $5.32
