Headlamp Washer Pump: Locations

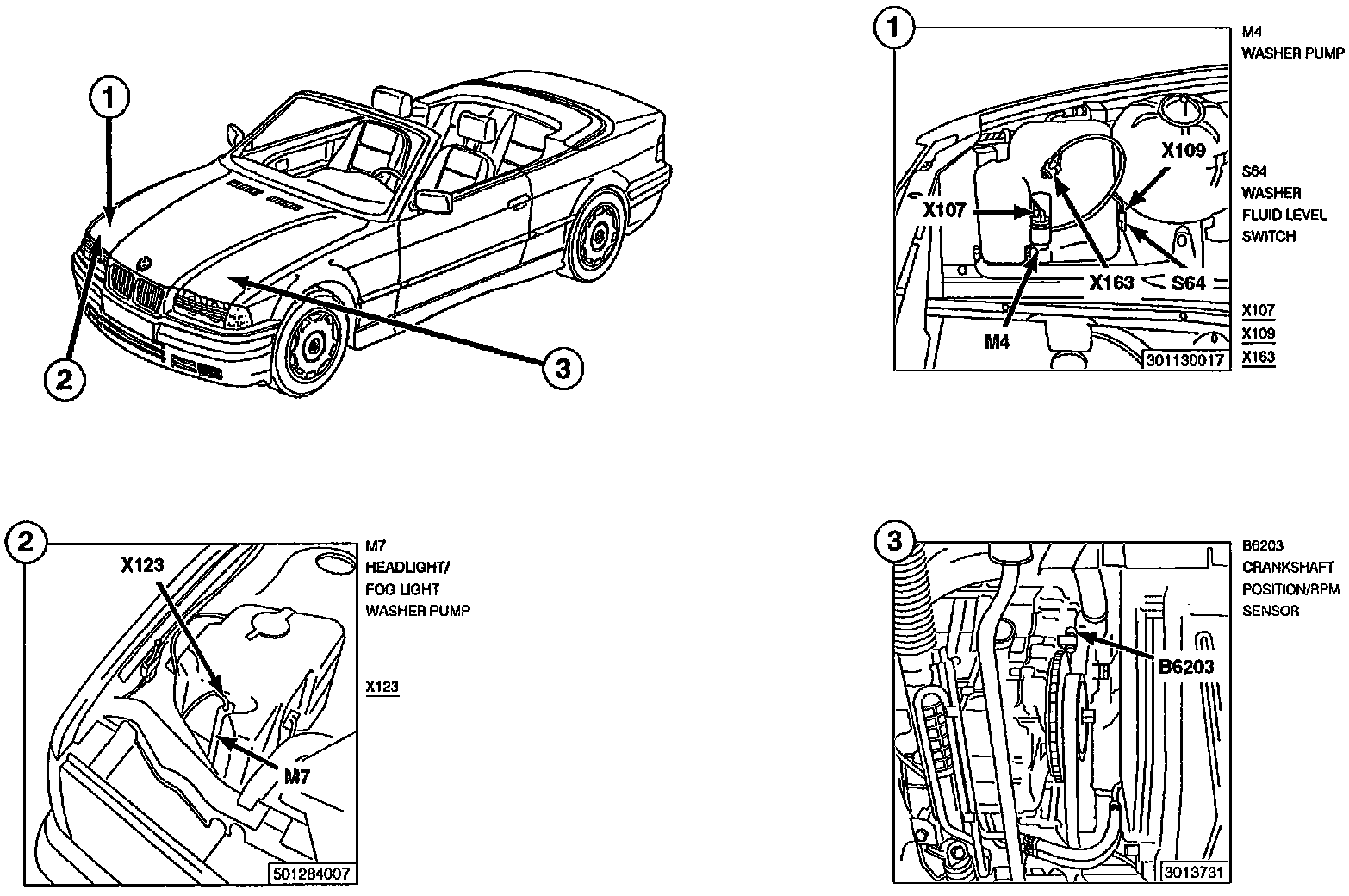

Component/Connector Location Views:

Figure : 2
Component ID : M7, Headlight/fog light washer pump
Location : Front RH side of engine compartment on washer fluid reservoir
