Engine - M52 New Special Tools

Group 04
Tools and Equipment

Bulletin Number
04 14 96

Woodcliff Lake, NJ
March 1996
Product Engineering

SUBJECT:
New BMW Special Tools

MODELS:
M52

Situation:

Distribution of the following tools for the M52 engine will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Please refer to Parts Information bulletin 1-24 dated 4/95 for tool warranty details.

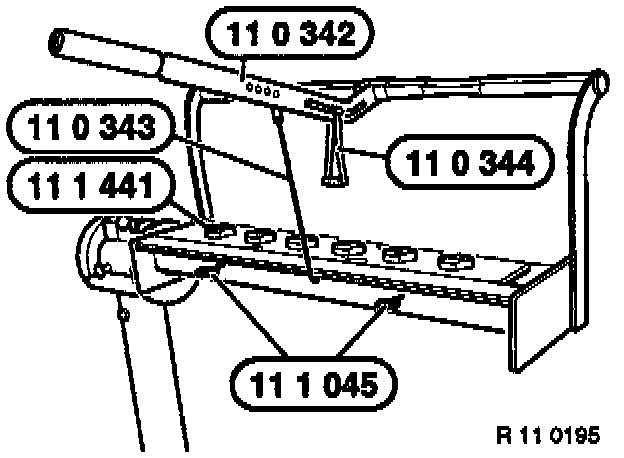

Pressure Lever
P/N 90 88 6 110 342
Introductory Price = $49.80

Used to depress the valve spring compressor (90 88 6 110 344)

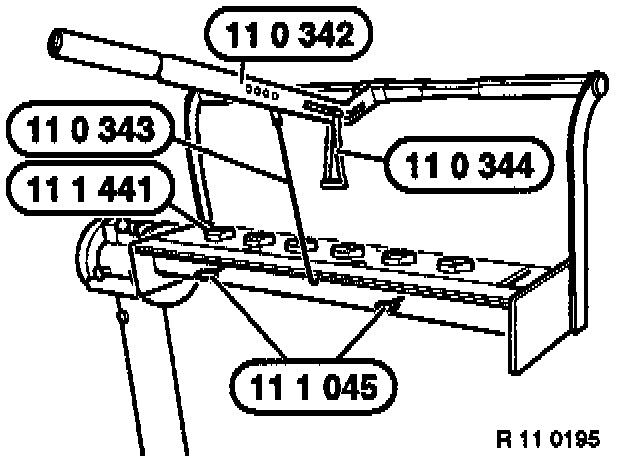

Valve Compressor Hook
P/N 90 88 6 110 343
Introductory Price = $12.05

Used to lock the valve spring in the depressed position.

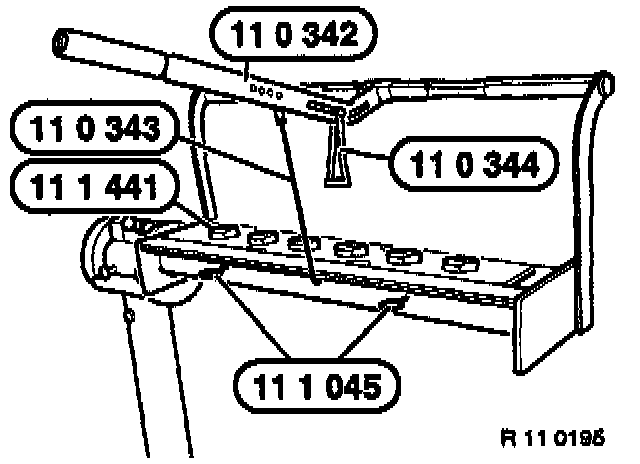

Valve Spring Compressor
P/N 90 88 6 110 344
Introductory Price = $24.40





Used to depress the valve spring.

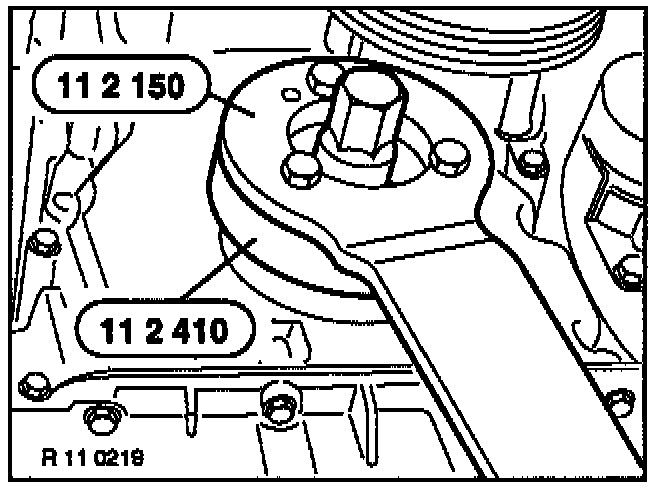

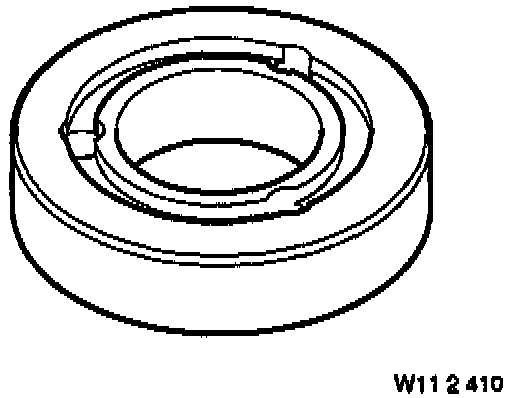

Spacer
P/N 90 88 6 112 410
Introductory Price = $13.15





Used in conjunction with 88 88 6 112 150 to maintain counter pressure when removing the Crankshaft central bolt.
