SpecialTools - New Guide Tube

Group 04
Tools and Equipment

Bulletin Number
04 19 96

Woodcliff Lake, NJ
April 1996
Product Engineering

SUBJECT:
New Guide Tube

MODELS:
M44 & M52

Situation:

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Please refer to Parts Information bulletin 1-24 dated 4/95 for tool warranty details. All prices on this bulletin are introductory prices. Introductory prices are only valid during the Automatic Tool Shipment.

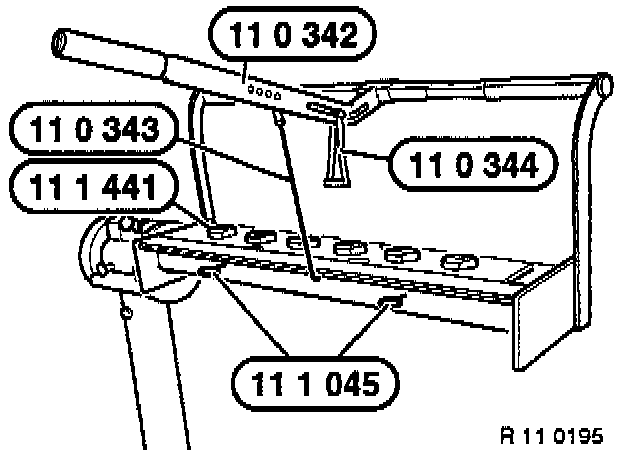

Guide Tube Shaft
P/N 90 88 6 110 192
Price = $10.50

Used with pressure lever 90 88 6 110 342 (refer to Service Information 04 14 96) to depress the valve springs.
