Campaign - Throttle Body Heater, Coolant Hoses

Group 13
Fuel Systems

Bulletin Number
13 02 97

Woodcliff Lake, NJ
August 1997
Product Engineering

PERFORM THE PROCEDURE OUTLINED IN THIS SERVICE INFORMATION ON ALL AFFECTED VEHICLES THE NEXT TIME THEY ARE IN THE SHOP FOR MAINTENANCE OR REPAIRS.

SUBJECT:
Throttle Body Heater - Coolant Hose

MODEL:
E36 with M52 engine

Situation:
An incorrect throttle body coolant return hose may have been installed on a limited number of 328i vehicles in production. This hose does not meet BMW coolant hose specifications and may develop a leak.

Vehicles Affected:
This Service Action involves E36 vehicles with M52 engines produced in 3/97.

In order to determine if a specific vehicle is affected by this Service Action, it will be necessary to utilize the "Service Menu" of the DOS (Dealer Communication System). Based on the response of the system, either proceed with the corrective action or take no further action.

The Chassis Number Ranges listed below are only for informational purposes and are not to be considered as the only deciding factor

Model Chassis Number Ranges

328i/4 AV 20431 - AV 20505
328i/4A AV 51457 - AV 51617

Correction:
Check and if necessary replace the throttle body heater coolant hose on all affected vehicles as outlined below.





Procedure:

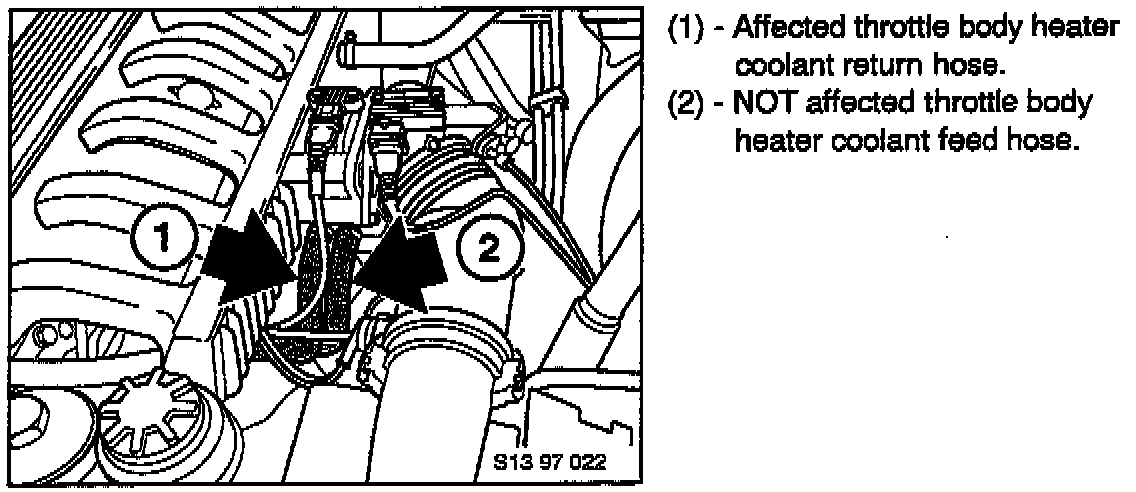

Check the embossed BMW part number on the throttle body heater coolant return hose (1).

^ If the BMW part number is 13 54 1 703 945 the hose is the new style and no further action is necessary.





^ If the part number is 11 15 1 740 393 the hose must be replaced with a new hose part number 13 54 1 703 945.

Note:
If the part number of the installed hose (1) is not visible the hoses can also be identified by the outer surface appearance.

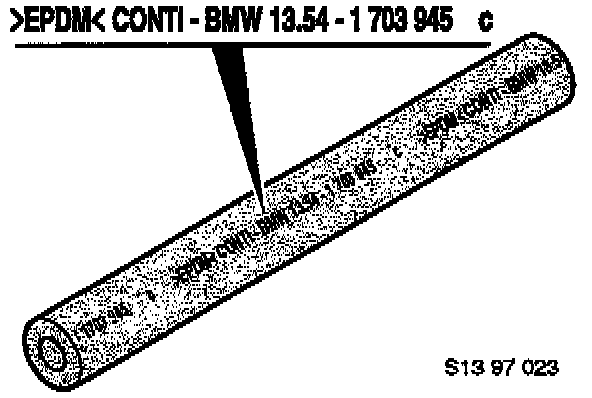

The correct hose (P/N 13 54 1 703 945)has a lightly corrugated surface and is mat gray - black in color.

The incorrect hose (P/N 11 15 1 740 393) has a smooth surface and is glossy black in color.

Since the coolant feed hose (2) is the correct type of hose on all affected vehicles, the surface appearance should be identical when comparing hose (1) with (2).

^ Remove the air cleaner housing with air mass meter and intake bellows boot as outlined in the repair manual, group 1371.

^ Install the new style throttle body heater return hose.

^ Reinstall the air cleaner housing with air mass meter and intake bellows boot. Check and top up coolant if necessary.

Parts Information

Part Number Qty. Description
13541703945 1 Coolant Hose

Service Action Label Instructions:

This Service Action has been assigned code number 199 After the vehicle has been checked, and corrected if necessary, obtain a label (SD 92-085) and:

a) emboss your BMW dealer warranty number in the middle of the label (1);

b) punch out code number 199 printed on the label and,

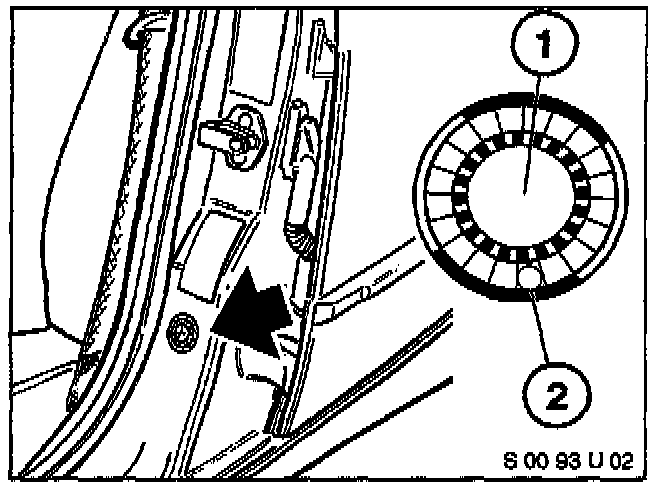

c) affix the label to the B pillar as shown:

If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.

Warranty Information:

Covered under the terms of the BMW New Car Limited Warranty. Reimbursement for this Service Action will be provided through Campaign Entry.

Special Defect Code: 00 13 07001 00

Work Package # 1: Check the throttle body coolant return hose. No
further action required.

Labor Operation: 13 99 000

Labor Allowance: 3 FRU

Work Package # 2: Check and replace the throttle body coolant return
hose.

Labor Operation: 00 51 297

Labor Allowance: 5 FRU

Part Allowance: 13 54 1 703 945 Qty=1
