Parts and Warranty Information

Parts Information:

Part Number Description Quantity

32 32 1 094 182 Non-conductive Rubber Ring 1

61 35 8 362 337 Send/Receive (S/E) Module 1

61 35 8 375 844 EWS II Control Module (E31, E34) 1

61 35 8 375 842 EWS II Control Module (E36, E38, E39) 1

Individual Keys (Ordered by VIN only; refer to S. 1. 61 02 95 [4200]).

Part Number Description

51 21 8 362 276 All E38 with radio remote control (general key)

51 21 8 366 438 All E31 and E34 with radio remote control (general key)

51 21 8 205 310 All models (service key)

51 21 8 205 311 All models without radio remote control (illuminated
general key)

51 21 8 205 312 All models without radio remote control (illuminated key)

51 21 8 205 313 All models (wallet key)

Warranty Information:
Parts and Labor are reimbursable under the terms of the BMW New Car Limited Warranty of 4 years/50,000 miles.

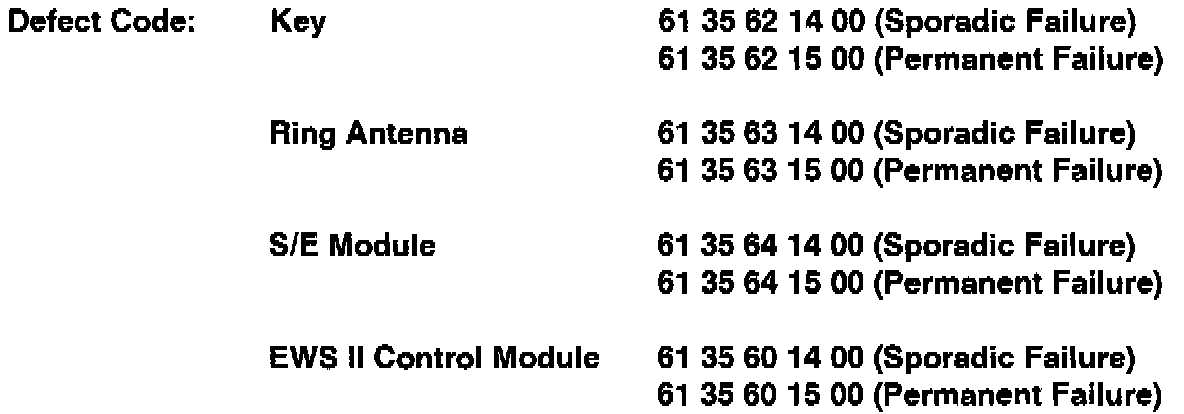

Use the Defect Code appropriate to the cause of the failure.

Labor Operation:
Refer to appropriate Flat Rate Manual

Labor Allowance:
Refer to appropriate Flat Rate Manual
