Home >> BMW >> 1998 >> 328i Convertible (E36) L6-2793cc 2.8L DOHC (M52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Switch

Door Switch

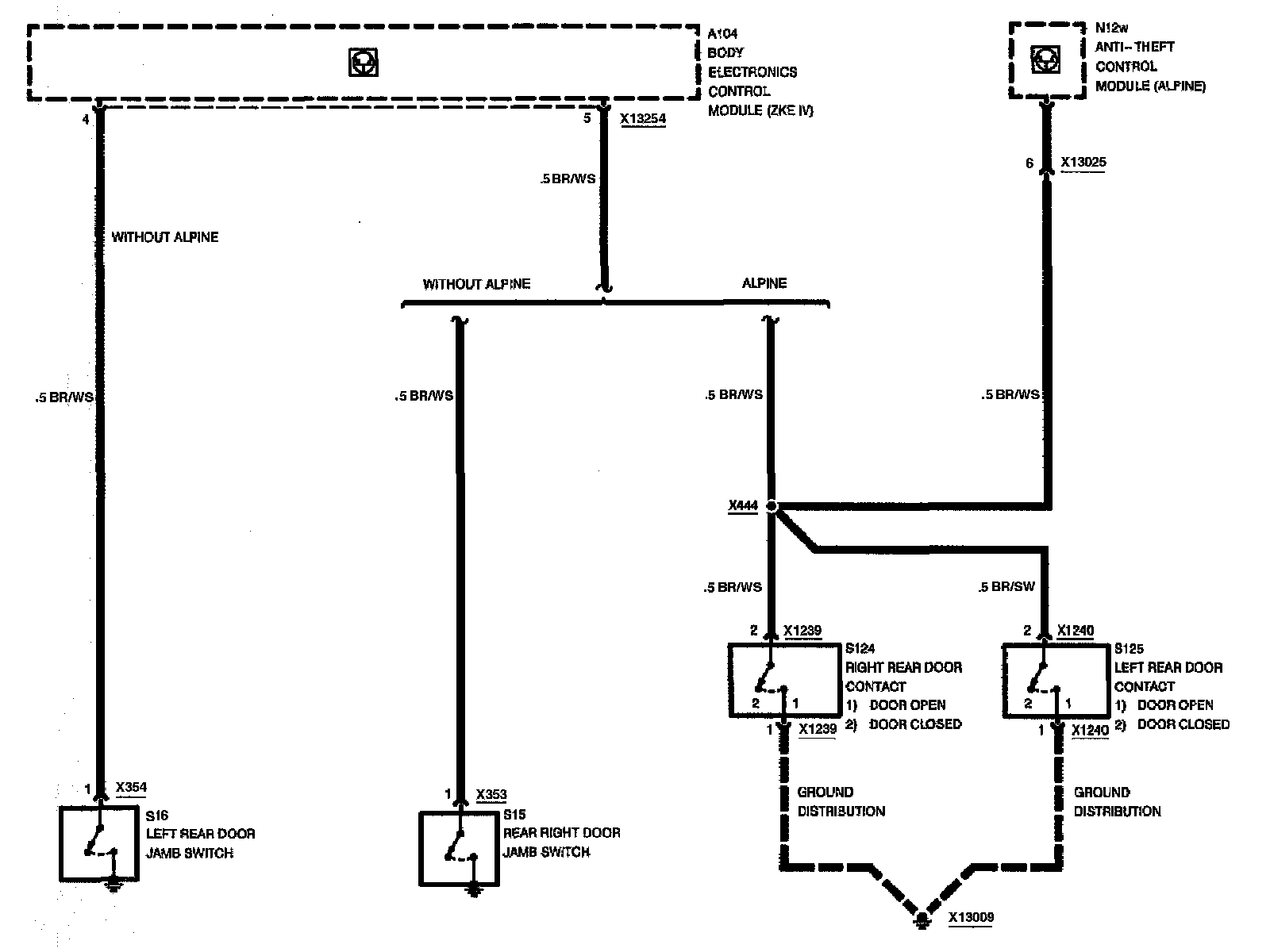

Interior Lights: Rear Door Jamb Switch:
