Instructions For Installing M-Mobility System

M roadster

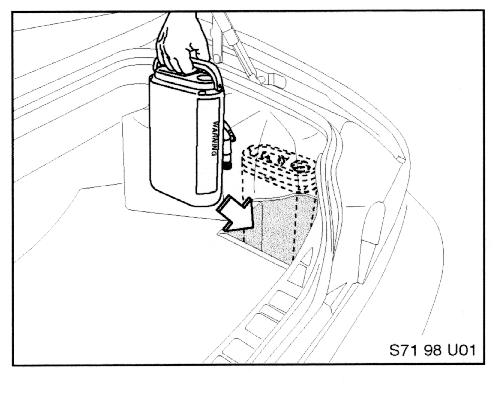

Remove the unit from its shipping container and place it in the receptacle in the right side of the trunk as illustrated. The hoses and wires on the unit must face towards the outside of the car.

M coupe

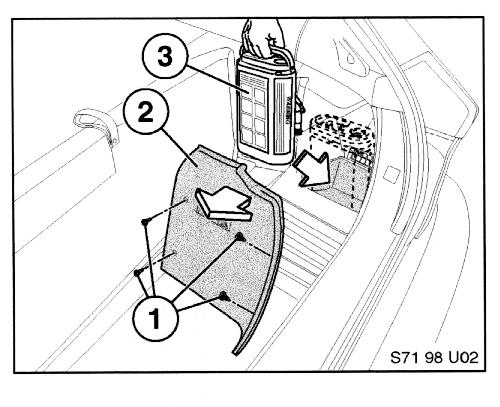

Lift up the cover over tool tray, and use screwdriver from tool kit or a coin to remove the four plastic retainers (1) holding cover (2) in right rear corner of trunk. Remove the unit (3) from its shipping container and place it in the receptacle as illustrated. The hoses and wires on the unit must face towards the outside of the car. Secure unit with the hook and loop strap provided. Reinstall cover and retainers.
