Instrument Cluster - Voltmeters

Group 62
Instruments

Bulletin Number
62 02 99

Woodcliff Lake, NJ
January 1999
Product Engineering

SUBJECT:
Voltmeters for M roadster/coupe in BMW Center Inventory

MODEL:
M roadster/coupe to 10/98

Situation:
M roadsters and M coupes produced prior to October 5,1998 have a blanking plate in the center instrument position of the center console. For vehicles in BMW center inventory, this blanking plate must be replaced with a voltmeter ordered from BMW Parts Department.

Note that owners of vehicles already retailed, are having the voltmeter mailed direct to their home address starting week commencing January 18,1999.

Vehicles Affected:

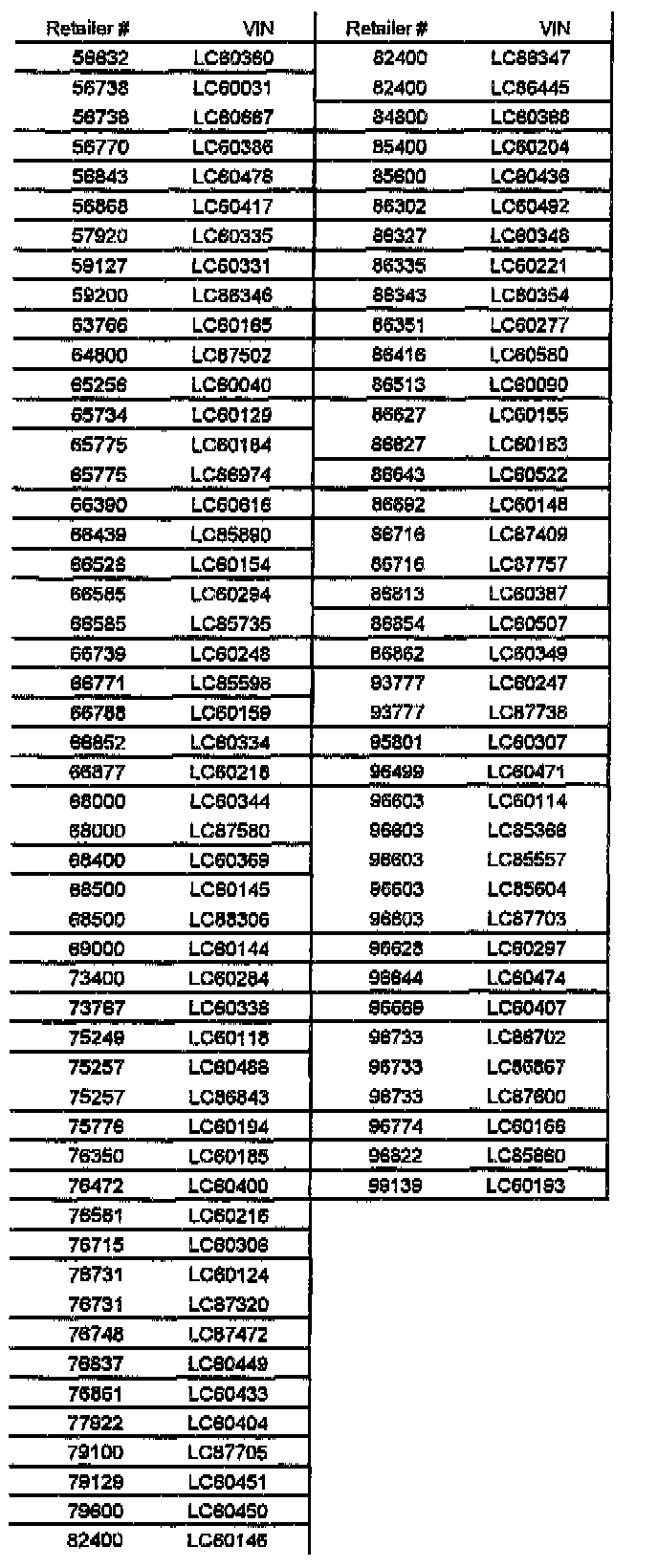

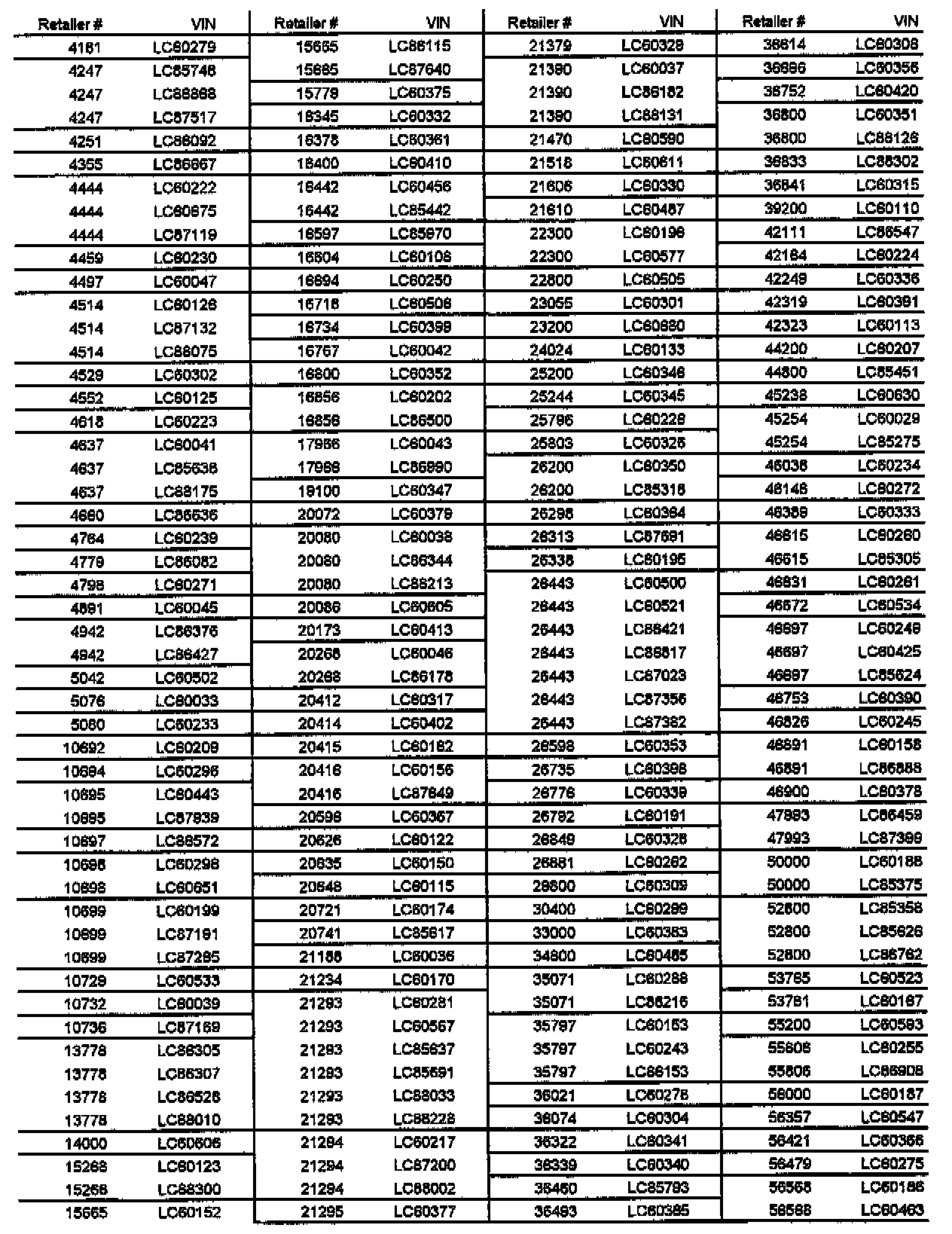

See charts

Procedure:
1. Refer to the charts to determine the number of Voltmeters to be installed at your BMW center.

2. To order a Voltmeter, place a VIN specific VOR order for each Voltmeter needed. Orders will be reviewed and released daily.

3. Follow instructions in SI 62 07 98 (Installation of Voltmeter) to install Voltmeter.

Parts Information:
Part Number Description Qty
62 13 2 695 215 Voltmeter 1
51 16 1 949 793 Trim Cap 2

Warranty Information:
Covered under the terms of the BMW New Car Limited Warranty.

Defect Code: 62 13 77 77 BV

Labor Operation: Voltmeter installation

Labor Operation Labor Allowance
Main Work 62 13 100 6 FRU
Associated Work +62 13 600 4 FRU

Note: The following explanations will spell out the correct use of the work times.

Main Work:
Use this labor operation number when the only repair performed is the listed warranty repair.
OR
+Associated Work:
Use this labor operation number when other repairs or services are performed along with the listed warranty repair. Under no circumstances should both labor operation numbers be claimed. Attempts to claim both times will result in an unnecessary delay in claim processing and payment.
