CD Player - Installation Kit Information
GROUP 65Sound System, Cruise, Alarms, Monitors
Bulletin Number
65 13 98
Woodcliff Lake, NJ
July 1998
Product Engineering
SUBJECT:
New CD Player Installation Kit for the M roadster and Z3 roadster
MODEL:
M roadster, Z3 roadster
Information:

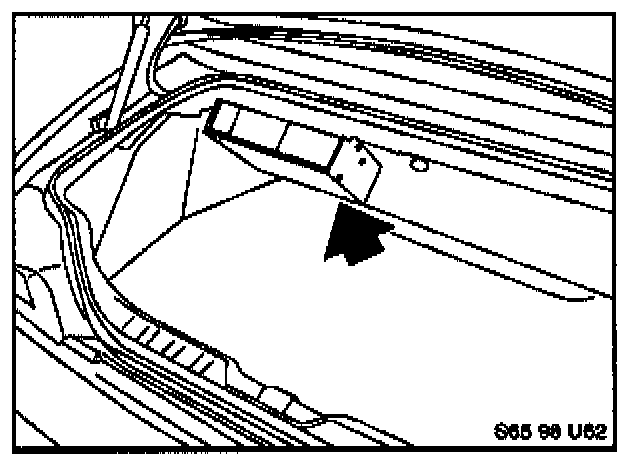

A new CD player mounting kit (P/N 82 11 1 470 374) is available for the M roadster and the Z3 roadster. The new mounting kit will locate the CD player to the left side of the trunk as illustrated. This will increase the storage capacity of the trunk for items such as golf clubs, and will allow mounting of the C.D. player without interference from the Mobility Unit.
The kit contains the bracket mounting flange, CD player mounting bracket, I-Bus harness extension, mounting hardware and installation instructions.

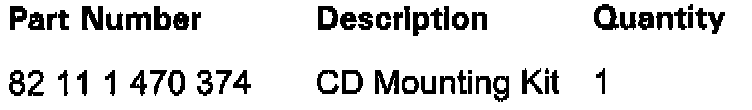

Parts Information:
Warranty Status: Information only.
