Condenser HVAC: Service and Repair

Replacing Condenser

Remove bumper.
Remove center left front radiator grill.
Refrigerant suction drained from the air conditioner.
Remove complete auxiliary fan.

If necessary, replace drier bottle.






Disconnect lines from condenser.

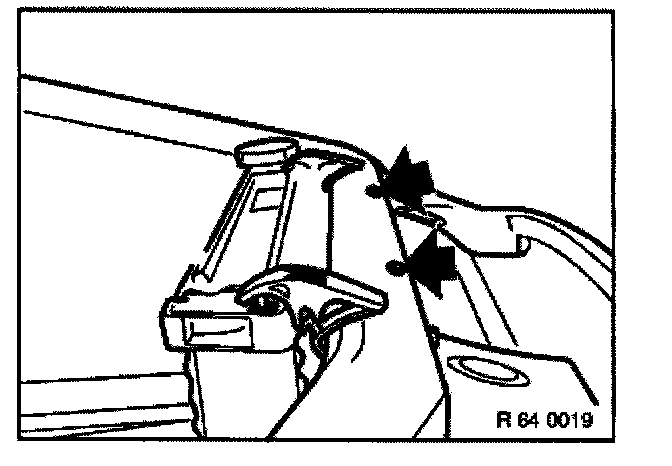

Unfasten screws, lift off condenser and pull downwards to remove.
