Instrument Cluster - ABS And ASC Indicators

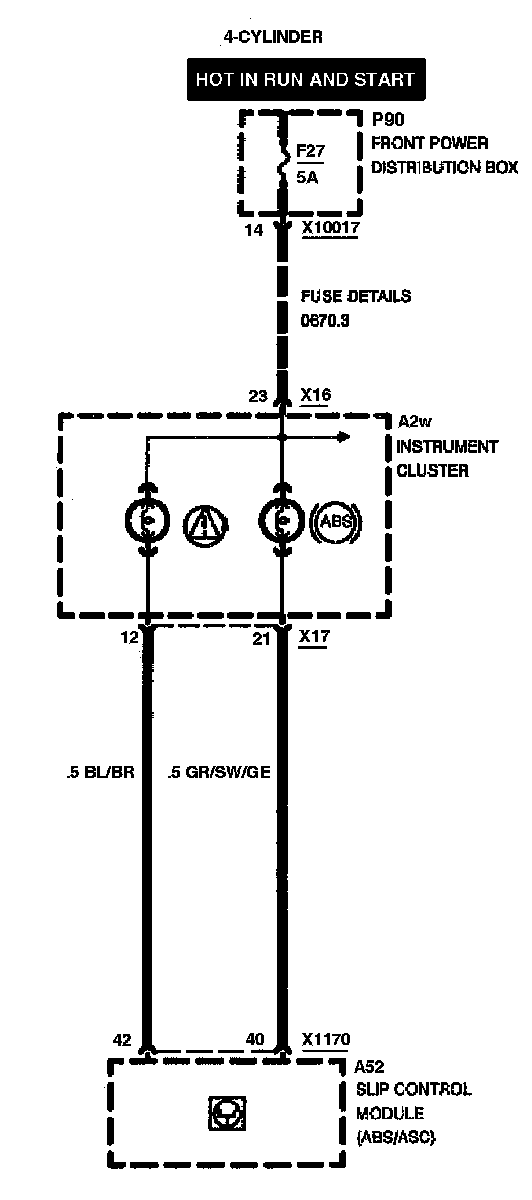

Instrument Cluster: Instrument Cluster - ABS And ASC Indicators:

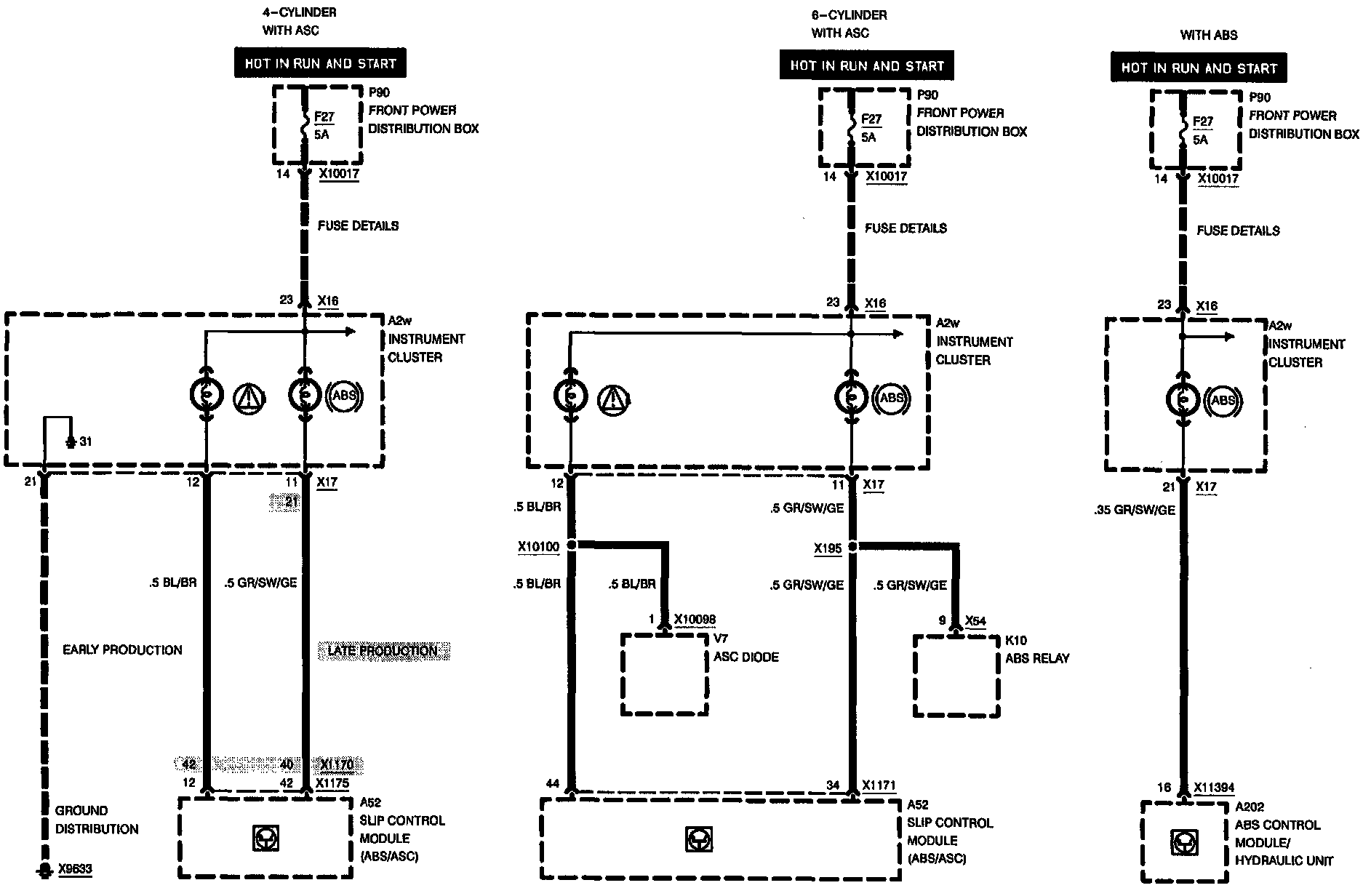

Instrument Cluster: Instrument Cluster - ABS And ASC Indicators:



Instrument Cluster: Instrument Cluster - ABS And ASC Indicators:
