Oil Change In Manual Transmission

Note: Transmission at operating temperature.
Use suitable transmission oil.

Fill quantity, refer to Technical Data, found in Manual Transmission/Transaxle, Specifications.

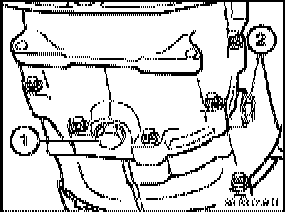

Unfasten drain plug (1) and filler screw (2).
Clean drain plug and screw in.
Tightening torque, refer to Manual Transmission/Transaxle, Specifications.
Top up transmission fluid until it overflows.
Tighten in filler screw (2).
Tightening torque, refer to Manual Transmission/Transaxle, Specifications.
