Clock: Service and Repair

Removing And Installing/Replacing Clock

Z3 Roadster up to 04/99:







Pull out radio cover and if necessary radio (do not disconnect plug connection).

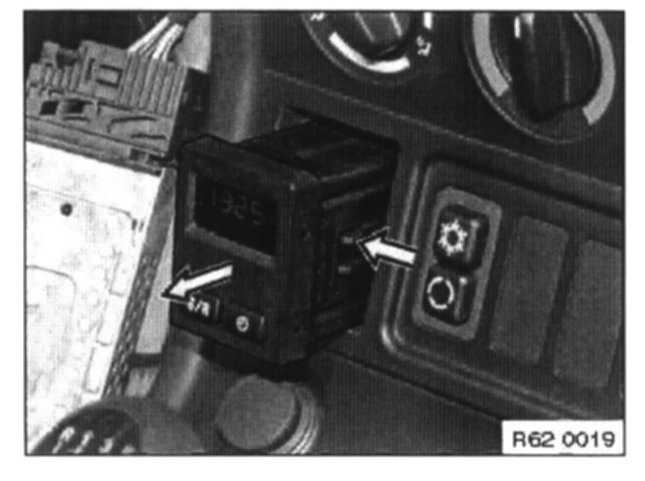

Through radio aperture, press clips together on sides of clock.
Press out clock towards front. Disconnect plug connection.

Z3 Roadster from 04/99:







Remove oddments tray.

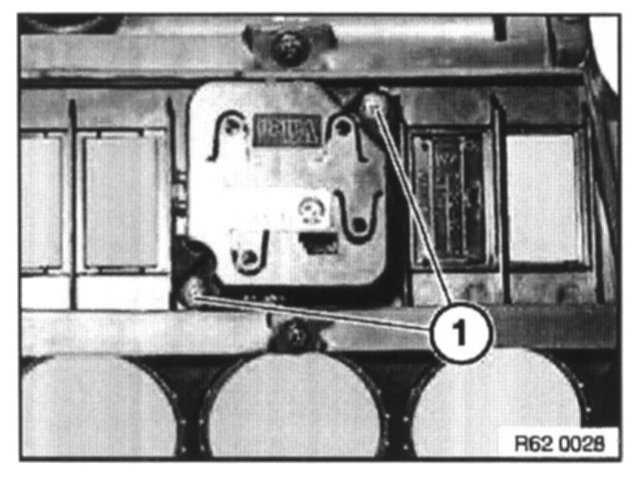

Release screws (1).
Remove clock.

Z3 Coupe:







Pull out radio cover and if necessary radio (do not disconnect plug connection).

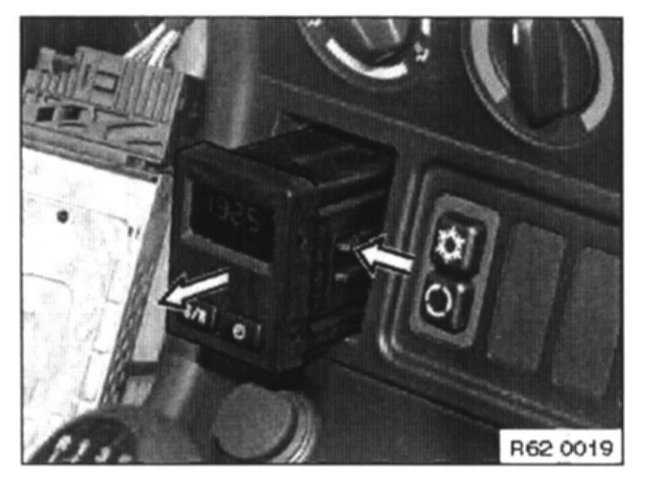

Through radio aperture, press clips together on sides of clock.
Press out clock towards front. Disconnect plug connection.

M Roadster, M Coupe:
This work step is identical to the work step Removing outside temperature gauge.
