Removing and Installing Trim For Instrument Panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

51 45 030 Removing And Installing Trim For Instrument Panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

Removing center console.
Removing airbag module on passenger side.
Removing complete instrument panel.
Unfastening switch for windshield wiper and indicator light from steering column.
Removing light switch.
Removing switch for headlight vertical aim control.
Removing plate for heating control.

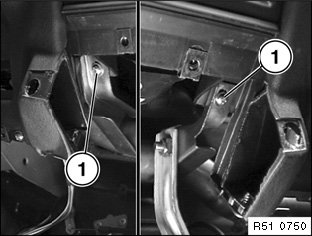

Unfasten left/right screws (1).







Unfasten screws (1) under center of ventilation grill.

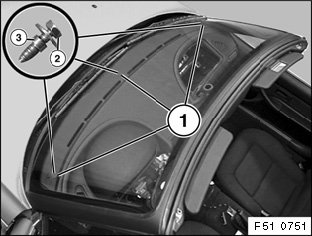

Lift out finisher strips (1) and unfasten screws (2).

Installation:
Screw down screws (2) with spacer sleeve (3).







Lift instrument panel (1) upwards and backwards (A) and remove on passenger side (B).







Installation:

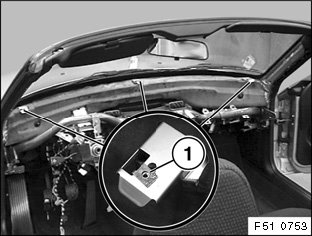

Slide on speed nuts (1).
