Air Conditioning Indicator Lamp: Service and Repair

Indicator Replacement




- Unclip shift-lever cover,
- Remove insulation sheet
- Carefully press hazard warning light switch or window regulator switch downwards to remove from trim.
- Disconnect connect

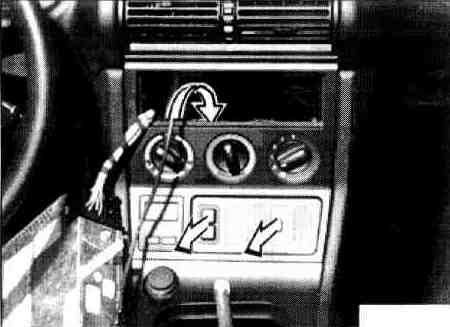

- Remove radio finisher or, if necessary, radio.
- Push a/c switch or indicator lamp forwards through radio aperture to unclip and remove connector.
