Wiper Motor: Service and Repair

Removing And Installing Mounting Bracket For Windshield Wiper System Complete With Motor (Z3 Roadster, Z3 Coupe, M Roadster, M Coupe)

Necessary preliminary tasks:
- Remove grill for air intake/heating.







Unfasten screws.
Feed mounting bracket for wiper system sideways out of upper guide (A) and pull out.

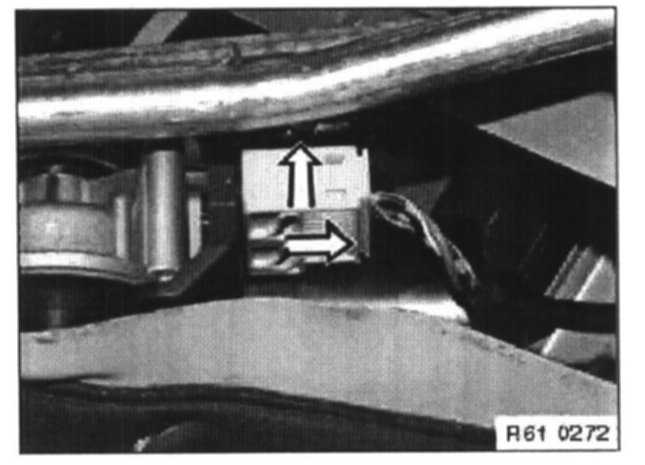

Unlock plug connection, disconnect and remove mounting bracket for wiper system completely.
