Wiper Arm: Service and Repair

Removing And Installing/Replacing Both Windshield Wiper Arms







Detach caps.
Unscrew left and right nuts.

Installation:
Tightening Torque, Driver's side without WCPC = 25 Nm
Passenger's side = 25 Nm






Fold up wiper arms up to end position and detach from drive shaft.

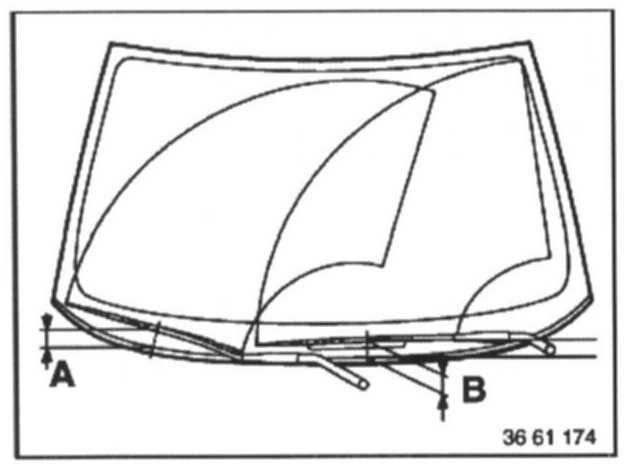

Adjusting dimensions of wiper arms:
Reference points are the mountings of the wiper blades on the wiper arms to the sealing lip of the cowl panel.
A = 45 mm
B = 25mm
