Troubleshooting Automatic Transmission THM-R1

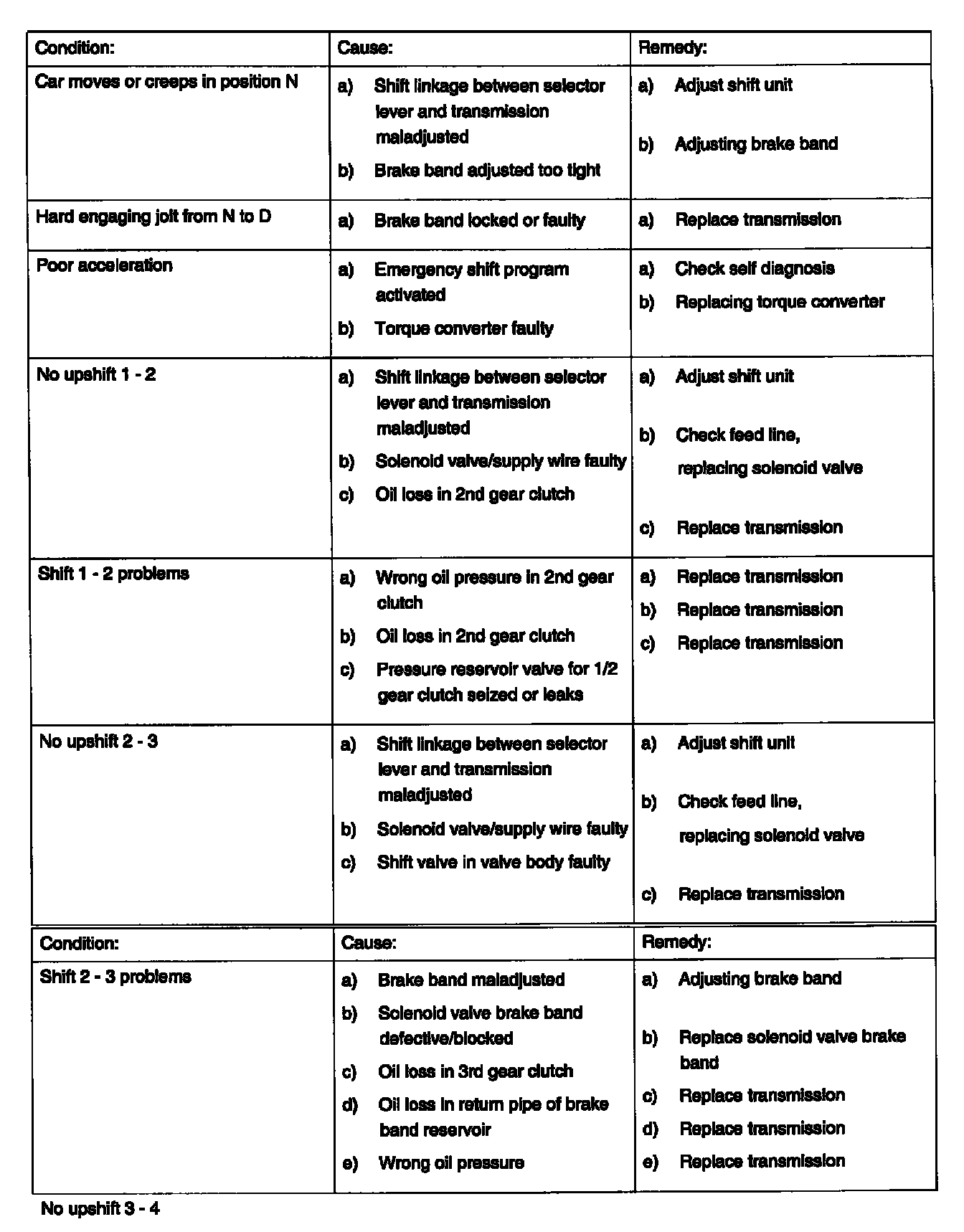

Troubleshooting Chart (Part 1 Of 5):

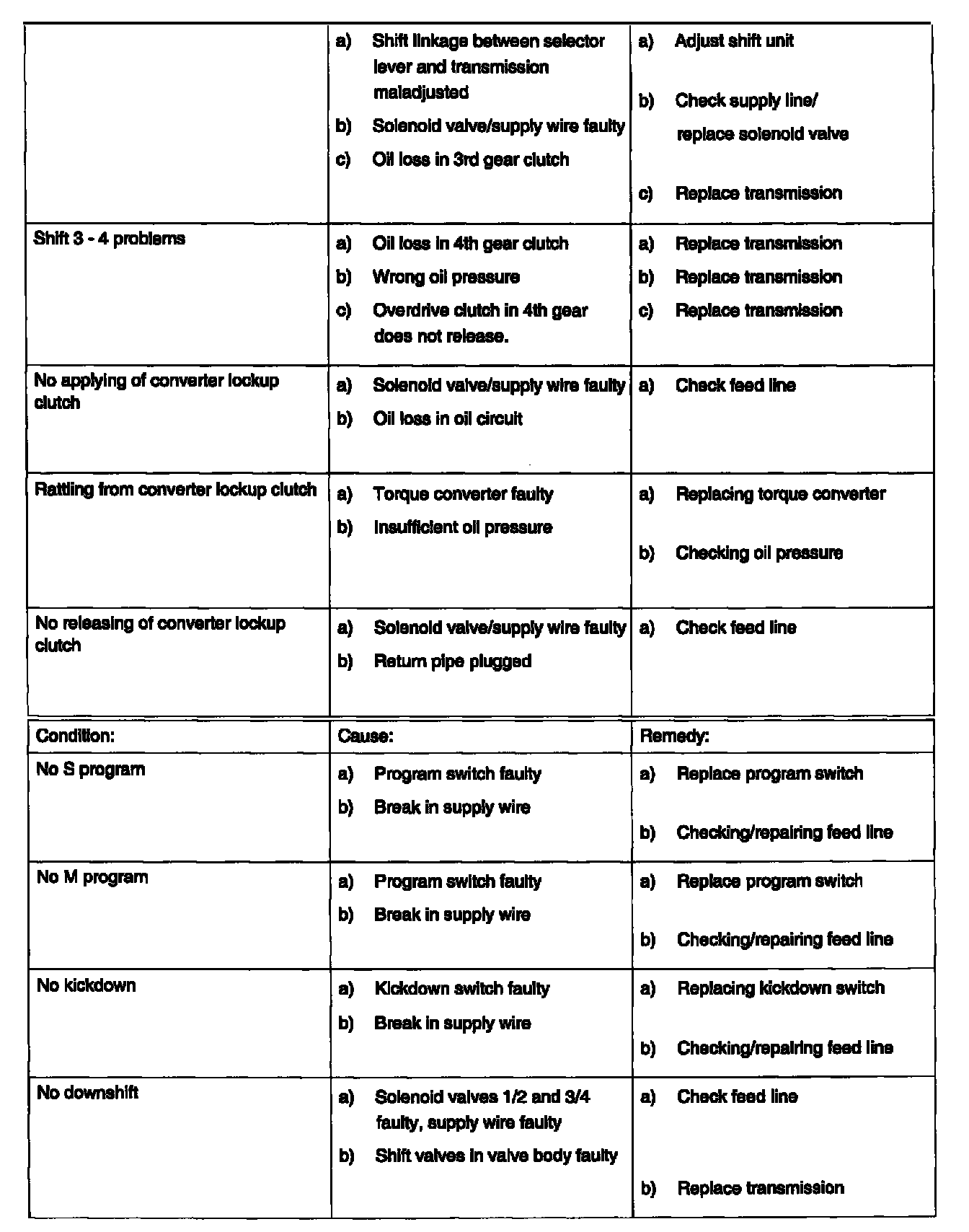

Troubleshooting Chart (Part 2 Of 5):

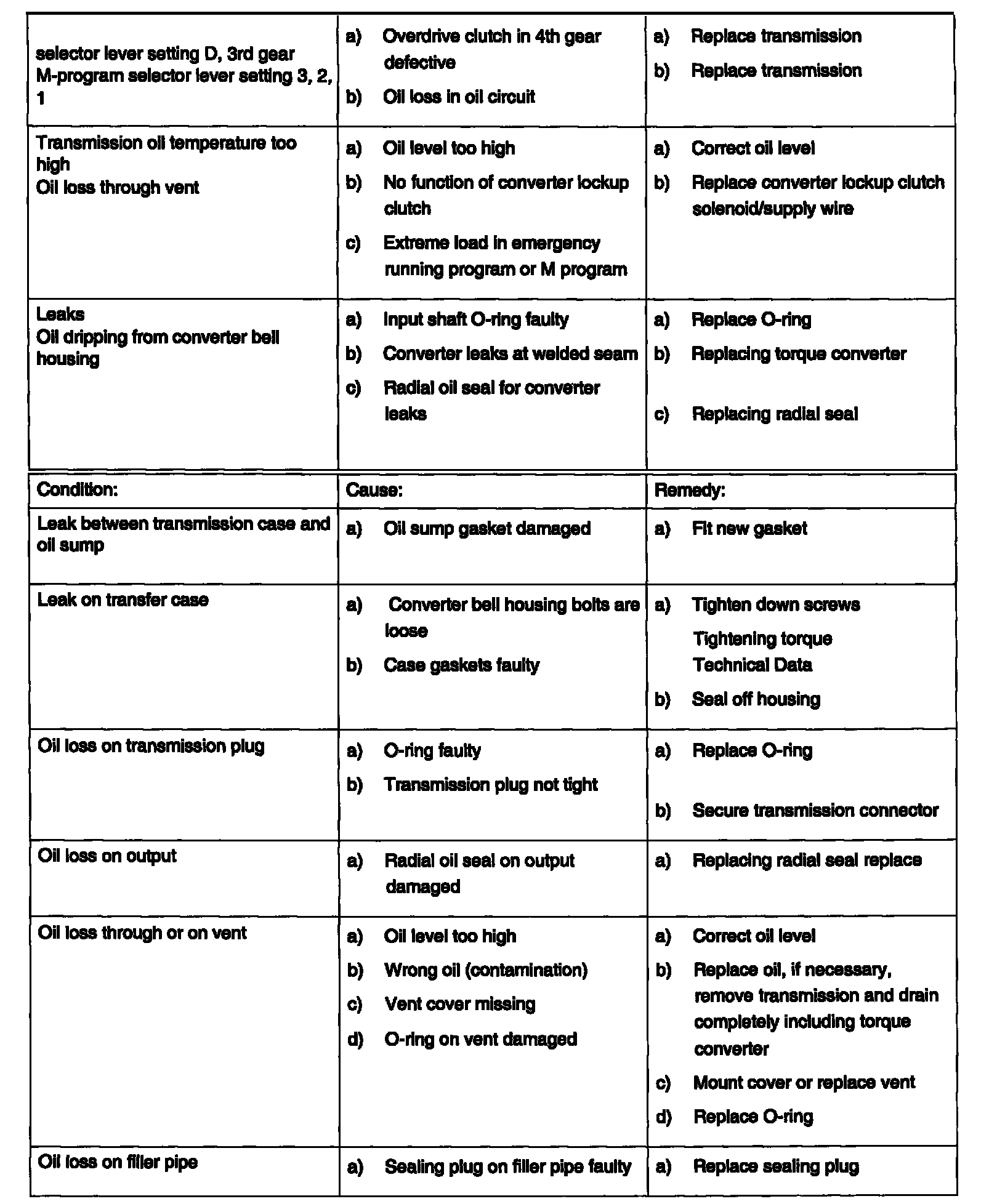

Troubleshooting Chart (Part 3 Of 5):

Troubleshooting Chart (Part 4 Of 5):

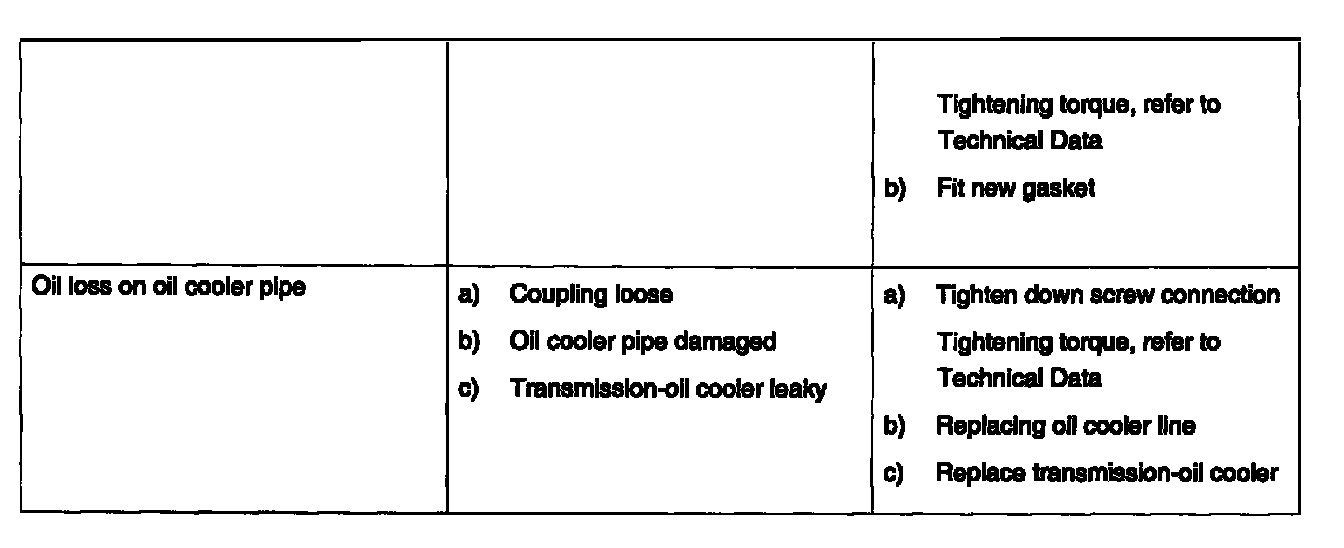

Troubleshooting Chart (Part 5 Of 5):
