Gear Train Arrangement (S5D 260Z/310Z/320Z)


Gear Train Arrangement (S5D 260Z/310Z/320Z)

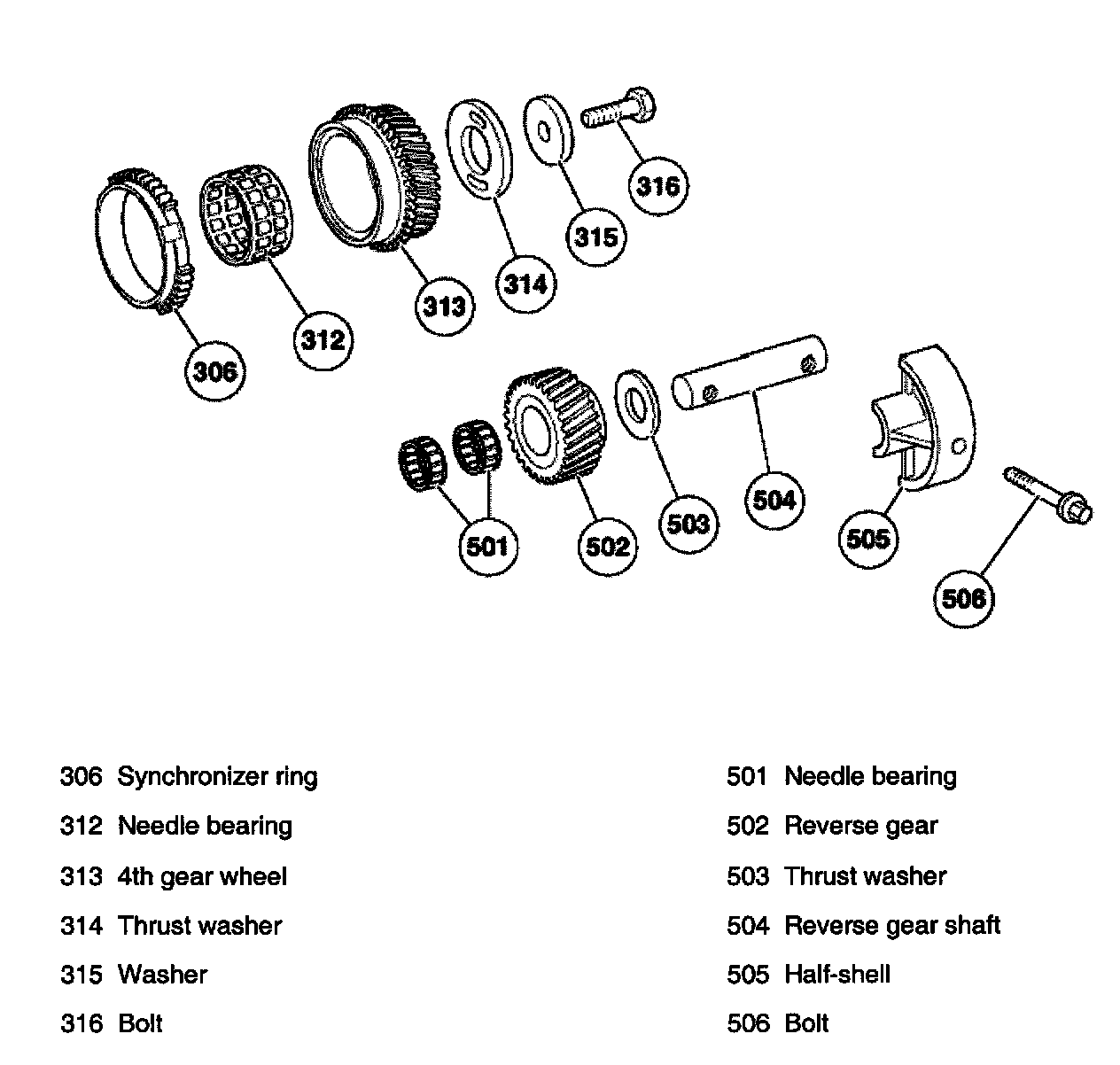

Part 1 Of 5:





Part 2 Of 5:





Part 3 Of 5:





Part 4 Of 5:





Part 5 Of 5:
