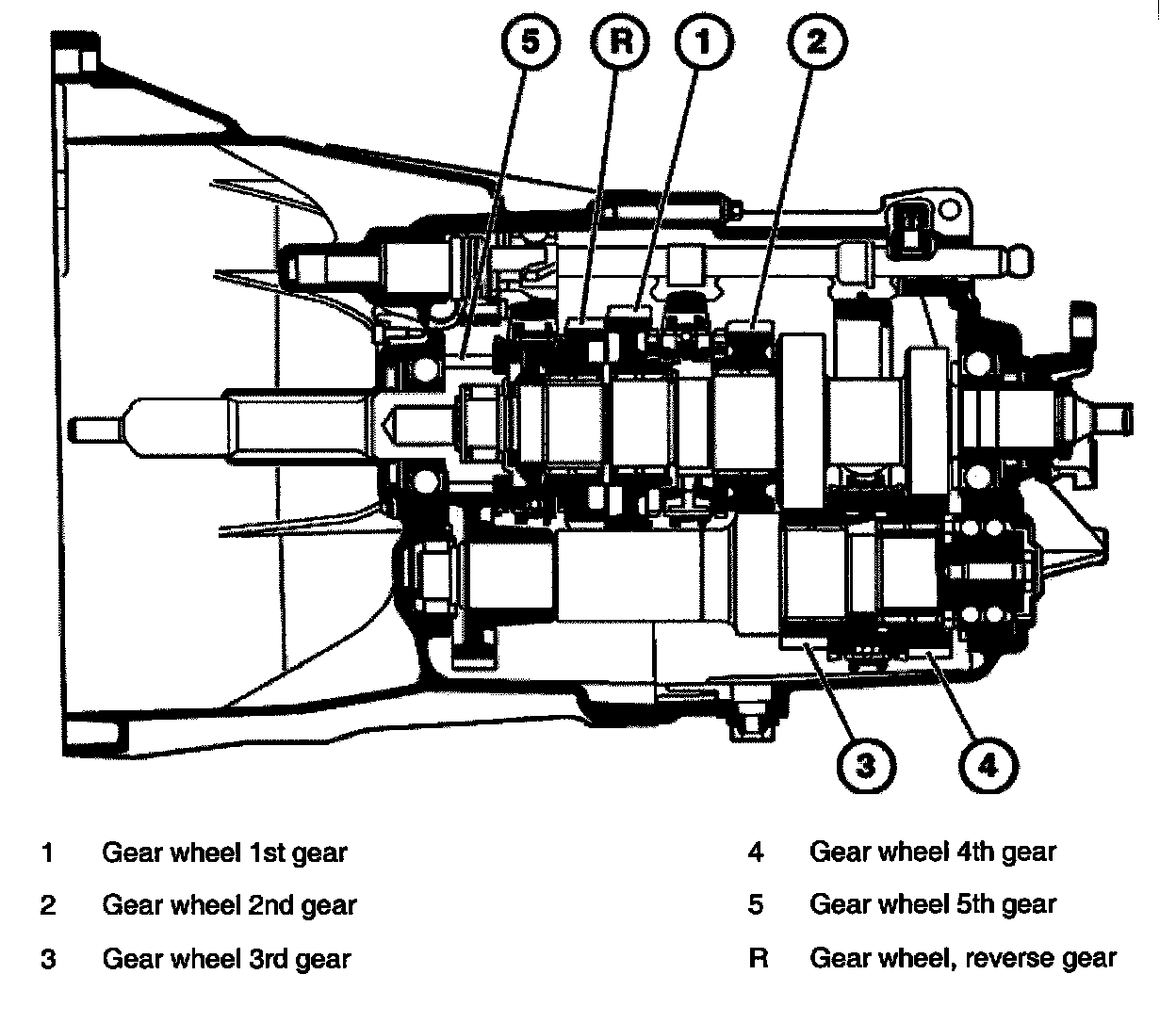

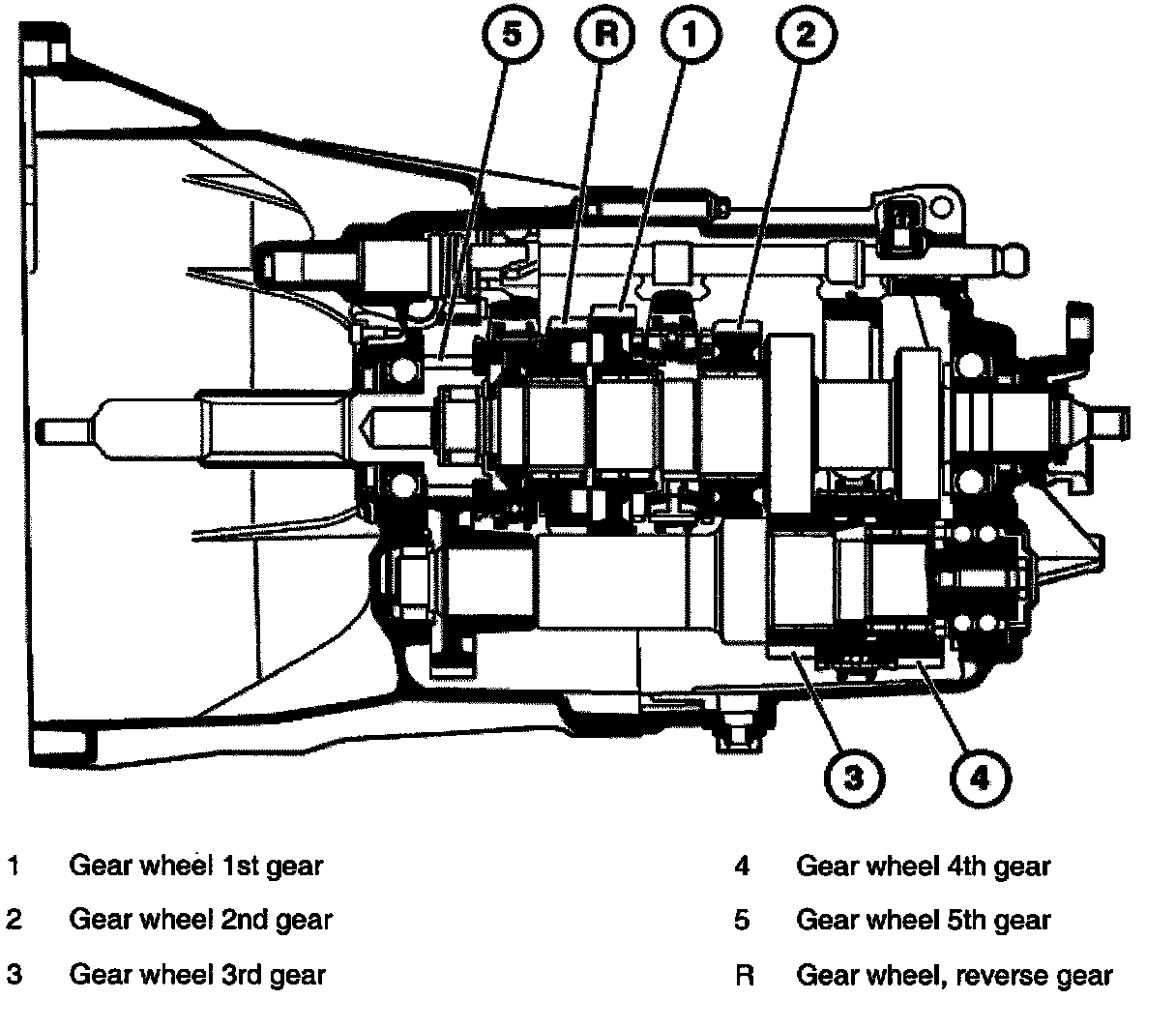

Transmission Arrangement (S5D 260Z/310Z/320Z)
Transmission Arrangement (S5D 260Z/310Z/320Z)
Transmission Arrangement (S5D 260Z/310Z/320Z)
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
