Removing and Installing or Replacing Muffler

64 12 590 - Removing and installing or replacing muffler





Necessary preliminary tasks:
- Remove left underbody paneling Removing and Installing / Replacing Left or Right Underbody Panelling.

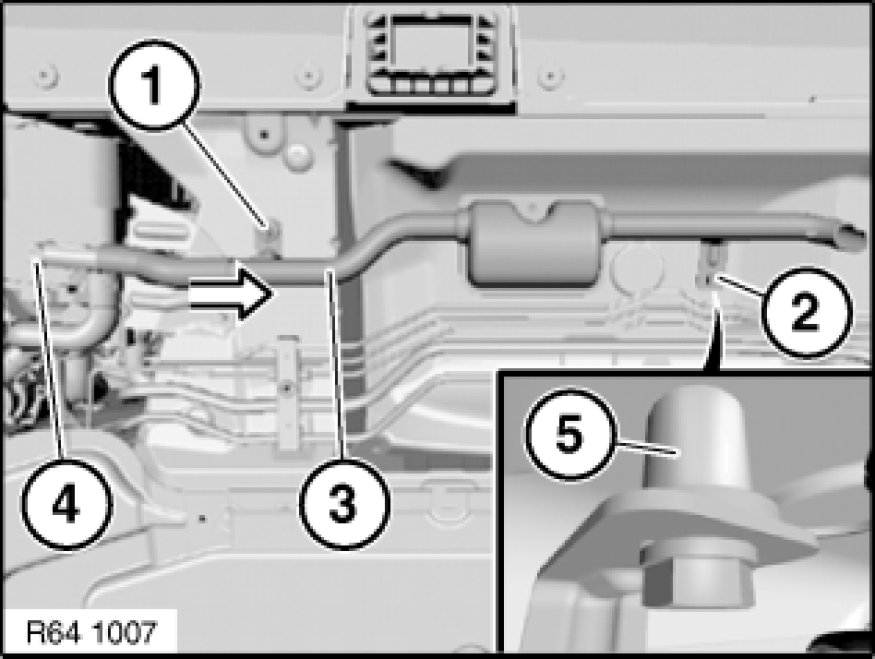

Unscrew nut (1).
Release screw (2).
Withdraw muffler (3) in direction of arrow from exhaust pipe (4).

Installation:
If necessary, replace blind rivet nut (5).
