Electronic Noise Suppressor: Service and Repair

Removing And Installing/Replacing Suppression Filter (Left Or Right)

Remove panel for rear lid upper section at bottom.

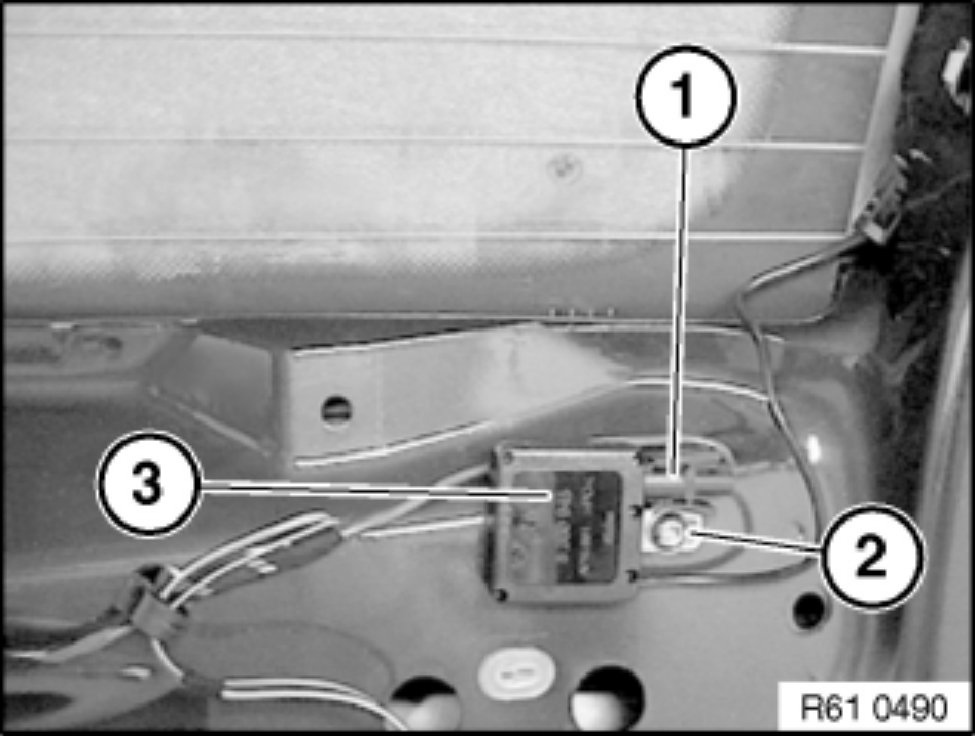

Disconnect plug connections (1).
Release screw (2) and remove suppression filter (3).
