Instruments - Power Folding Mirror Troubleshooting
SI B 51 50 03Body Equipment
August 2005
Technical Service
This Service Information bulletin supersedes S.I. B51 50 03 dated July 2004.
Note:
The changes to this revision are on the attached troubleshooting diagram.
SUBJECT

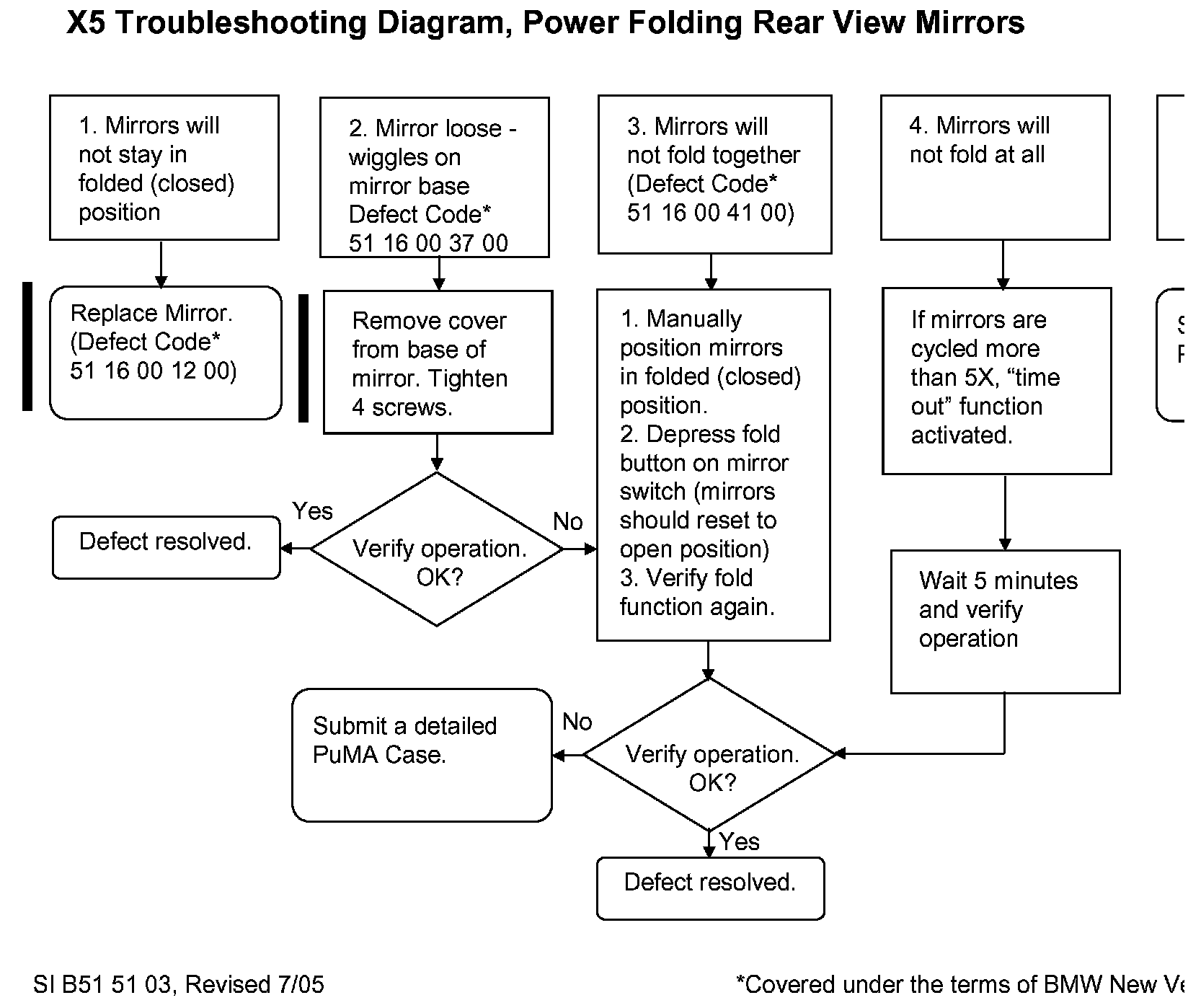

Troubleshooting Diagram, Power Folding Rear View Mirrors
MODEL
E53 X5
SITUATION
On occasion, owners of X5s equipped with Option 430 (Automatic Dimming and Power Folding Mirrors) may encounter problems with the mirrors, which can be difficult for a technician to diagnose.
�K�-:
The troubleshooting diagram has been developed to assist the technician in diagnosing problems with the mirrors. Please make this document available to all Service Advisors also, so that they can use it to accurately record the customer's complaint on the repair order.
WARRANTY INFORMATION
Those items which are normally covered under the terms of the BMW New Vehicle Limited Warranty are so noted on the troubleshooting diagram. In addition, the applicable Defect Codes which should be used on the warranty claim are also noted.
