Windshield Washer Reservoir: Service and Repair

Replacing Fluid Tank For Windshield Washer System

NOTE: Drain fluid tank for windshield washer system







Unscrew nuts (1).

Installation:

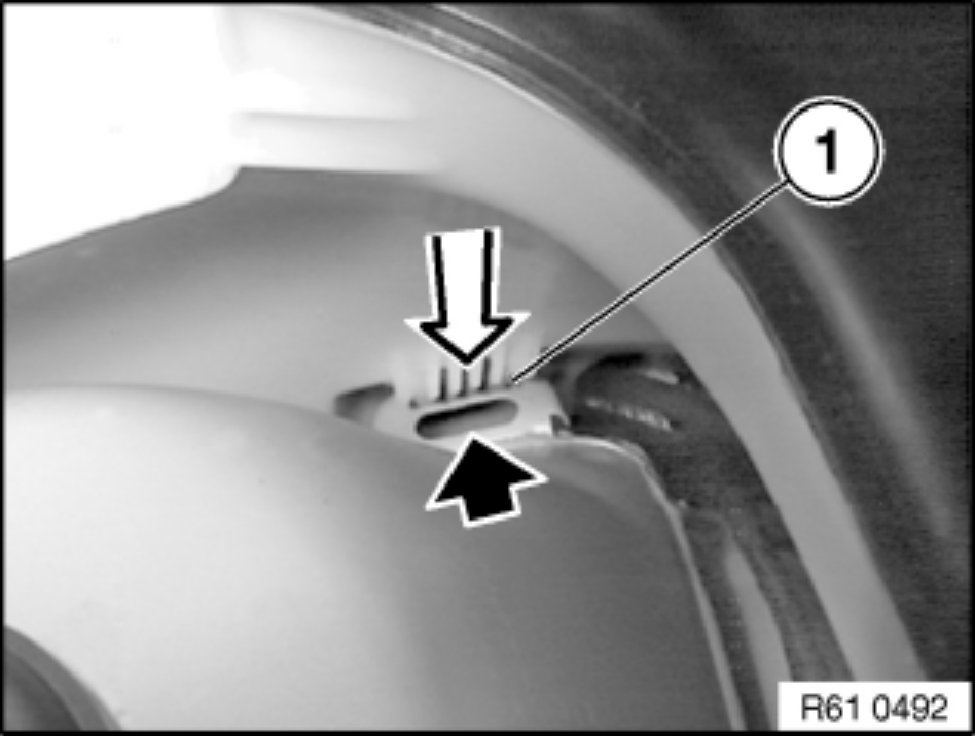

Feed lug (1) into tab.
Press fluid tank for windshield washer system downwards until it is heard snapping into place.

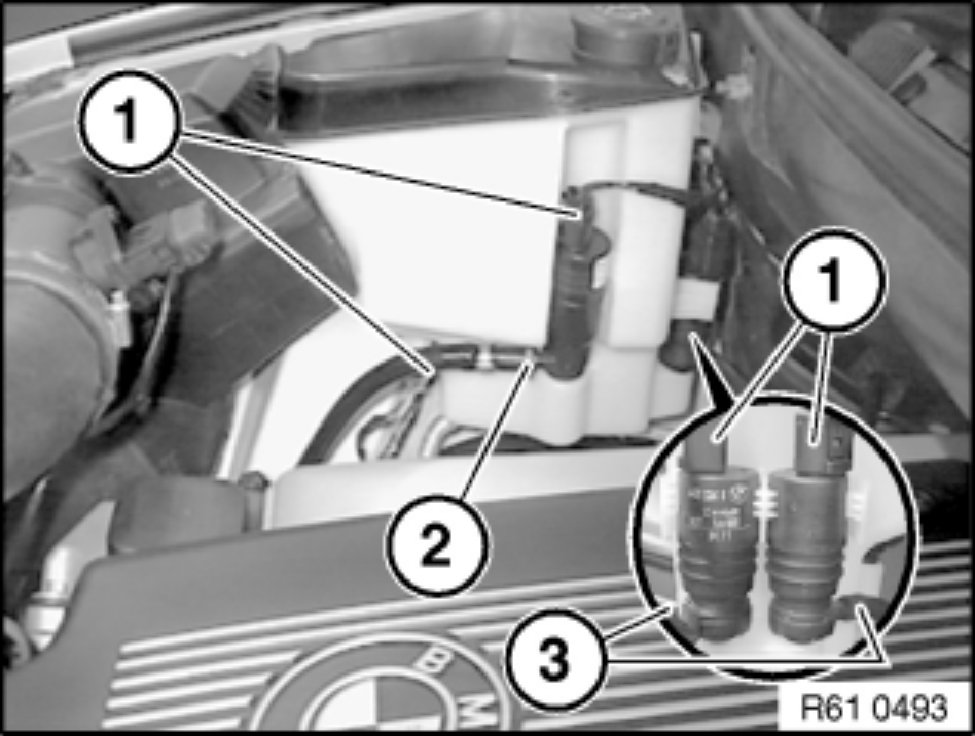

Disconnect plug connections (1).
Unlock hose (2) and detach.
Raise fluid tank for windshield washer system.
Detach hoses (3) and lift out fluid tank for windshield washer system.

Installation:
Make sure hoses are laid without kinks.
Fill fluid tank for windshield washer system.

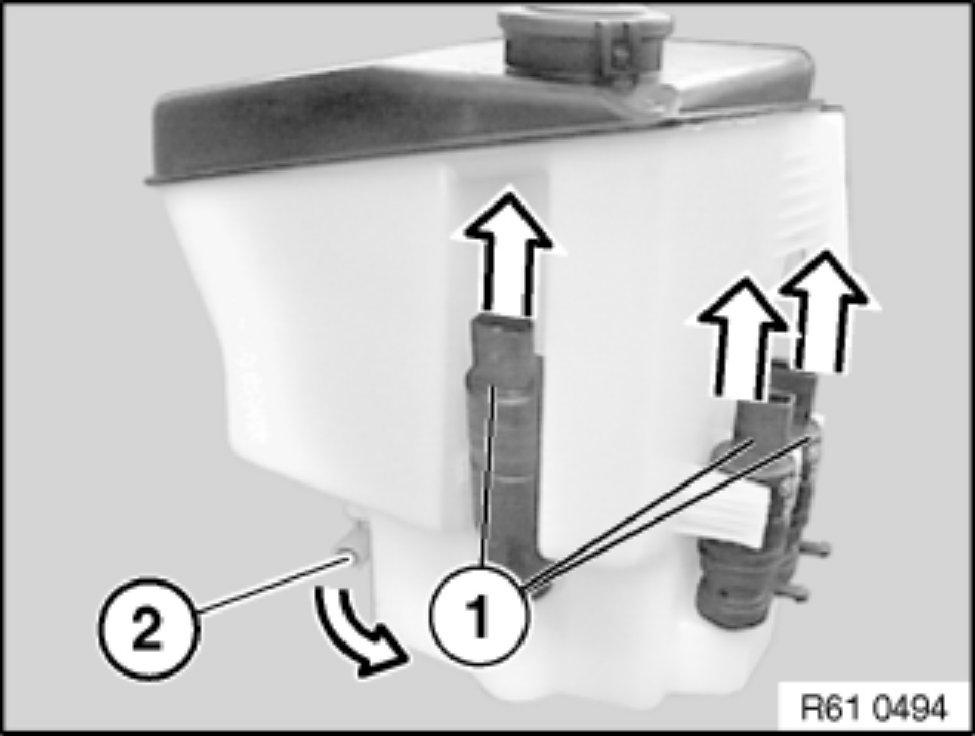

Pull washer pumps (1) vertically upwards and remove.

Installation:
Coat sealing rings of washer pump with anti-friction agent.
Replace sealing rings/strainers on washer pumps.

Turn level switch (2) approx. 90 degrees in direction of arrow and pull out.
Remove cap and strainer for fluid tank of windshield washer system.
