Replacing Limit Switch For Fan of Heater/Air Conditioner

Replacing Limit Switch For Fan Of Heater/Air Conditioner (Climate Control)

Remove right glovebox.
Remove trim on center console.







Unhook holder (1).
Unclip heating duct for right footwell (2) and remove in direction of arrow.

Installation:
Ensure heating channel for right footwell (2) is correctly seated.

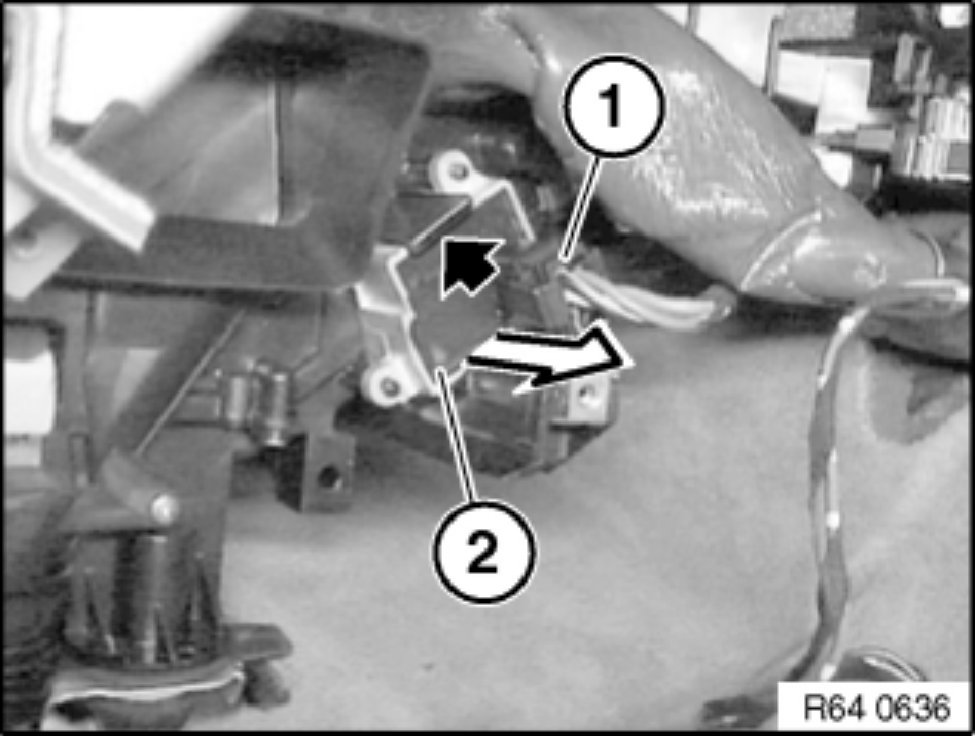

Disconnect plug connection (1).
Unlock limit switch for fan (2) and pull out in direction of arrow.
