Interior - Insufficient Cup Holder Holding Force
SI B51 35 05Body Equipment
October 2005
Technical Service
SUBJECT
Insufficient Holding Force of the Front Cup Holder
MODEL
E53 (X5 SAV)
SITUATION
The customer may complain that the front cupholder no longer holds a cup in place while driving.
CAUSE
The holding clamps of the cupholder are defective and no longer provide tension onto the cup.
CORRECTION

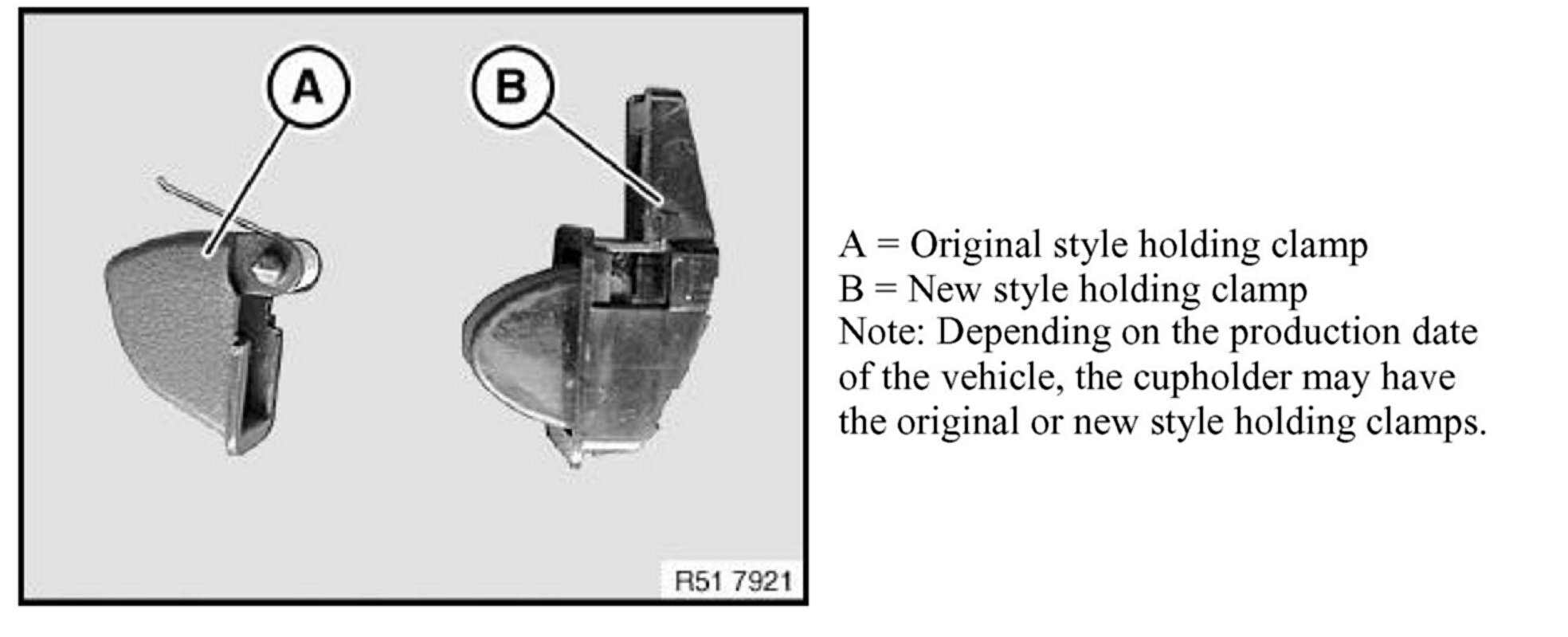

Do not replace the cupholder. The defective holding clamps of the cupholder can be replaced individually.

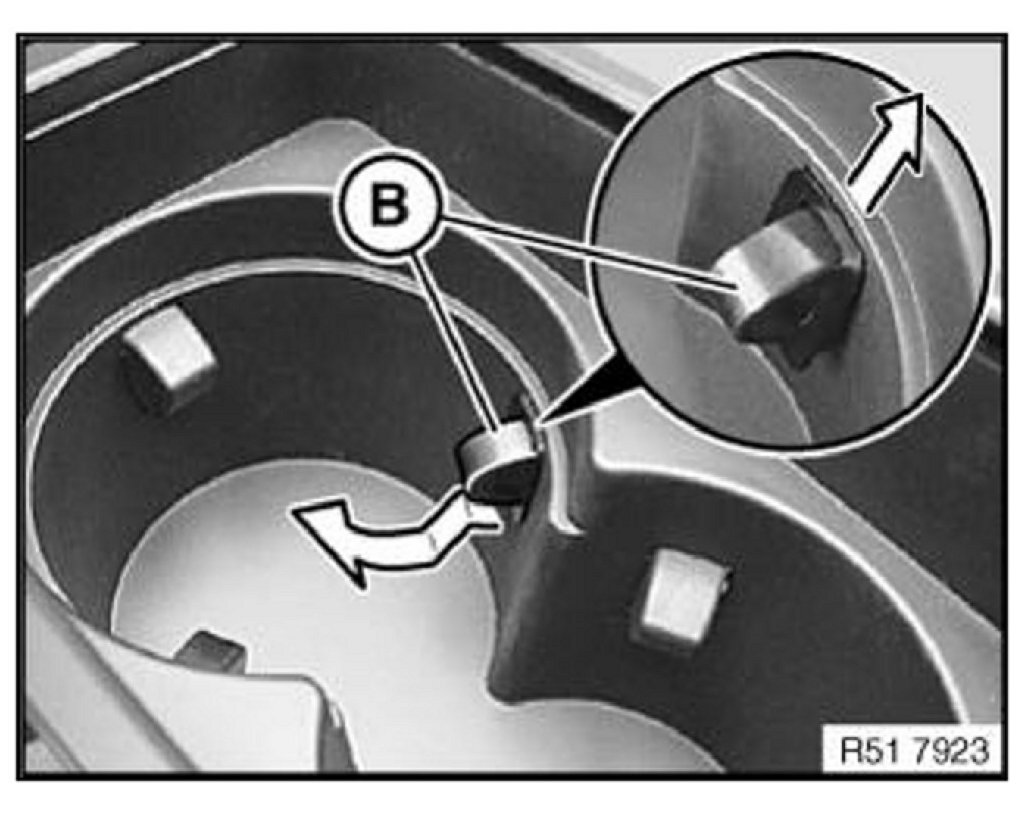

PROCEDURE

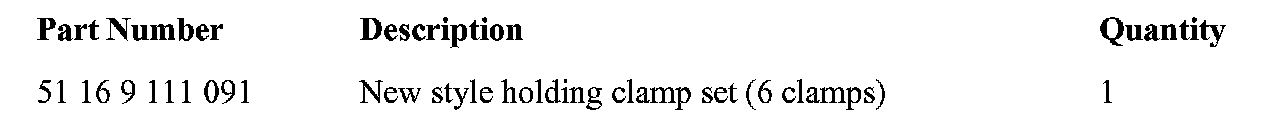

PARTS INFORMATION
