Windshield Washer Spray Nozzle: Adjustments

Adjusting Jet Nozzle For Rear Window Washer Unit

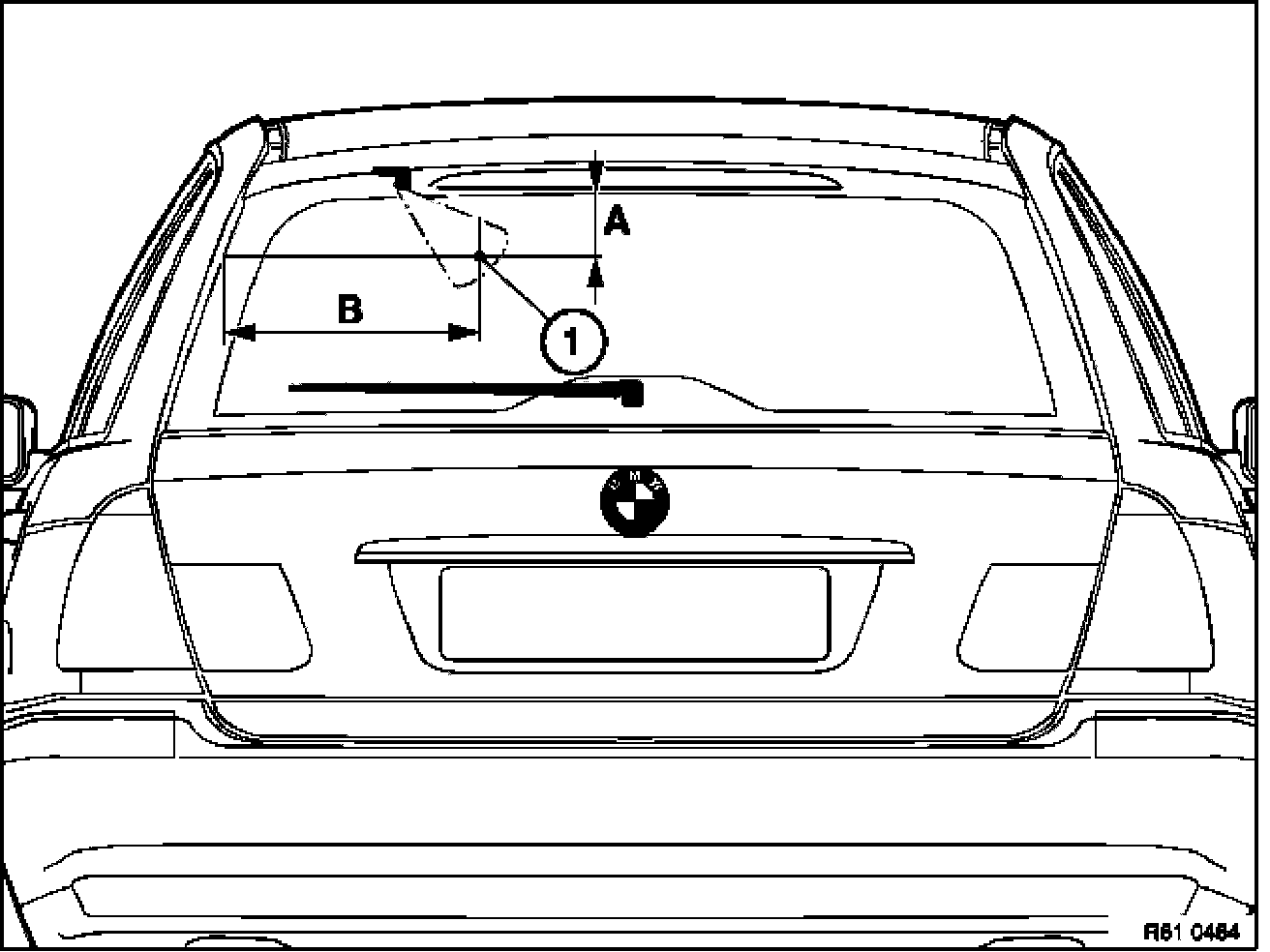

NOTE: The spray must meet the contact point (1).

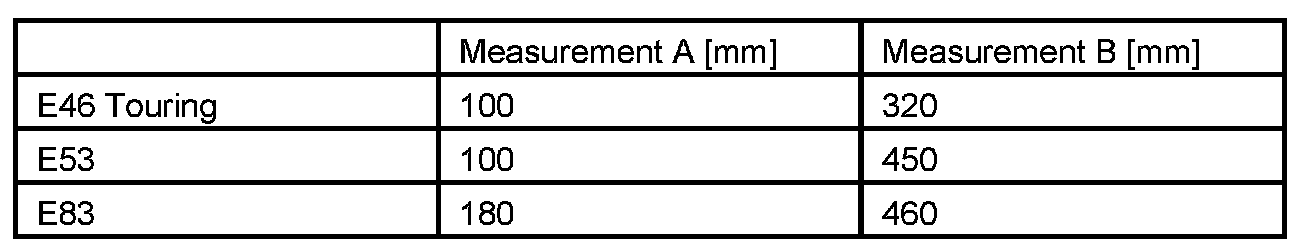

Adjustment measurements:










IMPORTANT: Do not insert any pointed objects in nozzle (risk of damage).

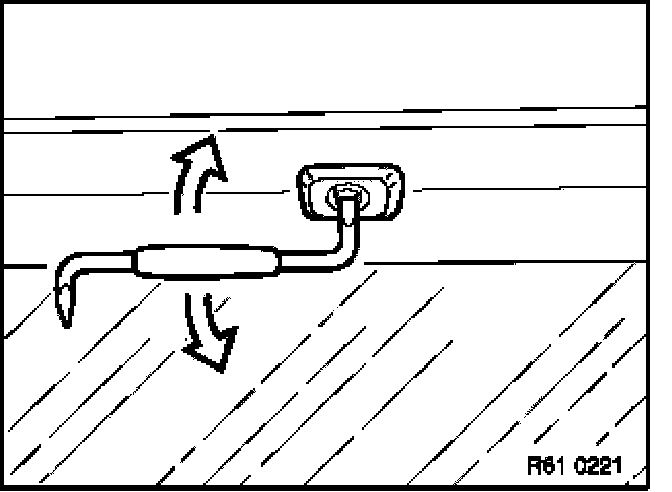

Mark contact point with crepe tape. Adjust jet nozzle with offset screwdriver (3.5 mm) in slot.
