Audio/Cell Phone - Momentary Drop In Volume

SI B 65 11 06
September 2006

Sound System, Cruise, Alarms, Monitors
Technical Service

This Service Information bulletin supersedes S.I. B65 11 06 dated May 2006.

[NEW] designates changes to this revision

SUBJECT
Momentary Drop in Radio/Telephone Volume or Clicking Noise

MODEL
E85 (Z4), E86 (Z4 Coupe) Vehicles produced January 1, 2006 to June 14, 2006

SITUATION
The customer complains of momentary drops in radio or telephone volume for up to 2 seconds at a time. The condition occurs approximately, once every 2 hours. For vehicle with the premium sound system (option 677), a momentary clicking noise is heard, occurring 3-5 times per hour.

CAUSE
Instrument Cluster with SW 10.

Affected P/Ns: 62 11 9 117 274, 62 11 9 117 275, 62 11 9 117 281 or 62 11 9 117 280. The parts may also have been installed on earlier production vehicles as a replacement part.

CORRECTION
Replace Instrument Cluster with revised part SW 10.2.

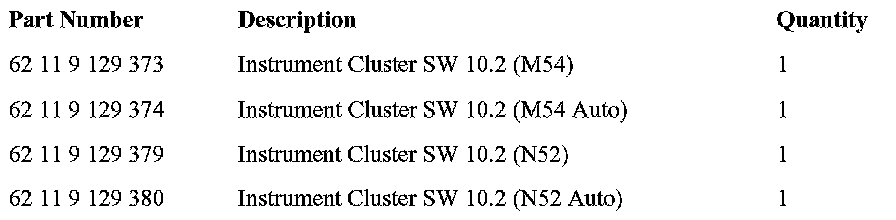

NEW PARTS INFORMATION

NEW WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty.

Defect Code Refer to KSD

Labor Operation: Refer to KSD
Labor Allowance: Refer to KSD
