16 11 350 Replacing Clamping Bands For Fuel Tank

16 11 350 Replacing clamping bands for fuel tank







Necessary preliminary tasks:
- Partially detach rear underbody panelling Removing and Installing/Replacing Left or Right Underbody Panelling







IMPORTANT: Secure fuel tank against slipping and falling out.

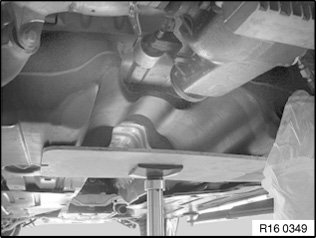

Heavily support the fuel tank.

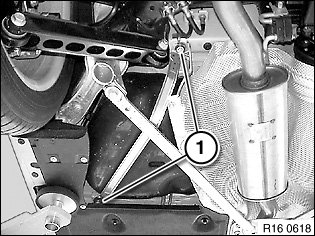

Release screws (1) and remove clamping band.







Installation:

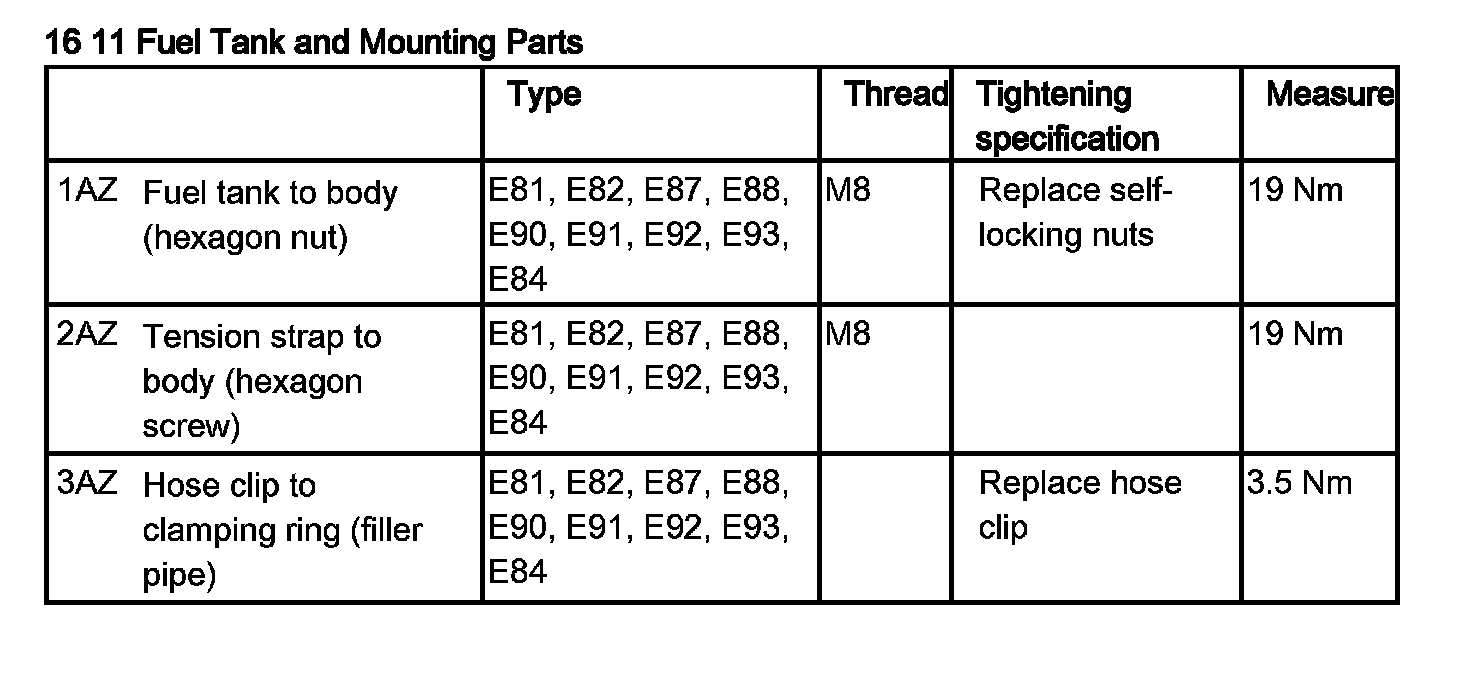

Tightening torque 16 11 2AZ.
