X60001 Adapter 127420, Storage Location Q204 (S85 or N52 Engine)
>>
A6000 DME Control Module (N52 Engine Up to 03/07)
A6000 DME Control Module (N52 Engine Up to 03/07)
X60001:

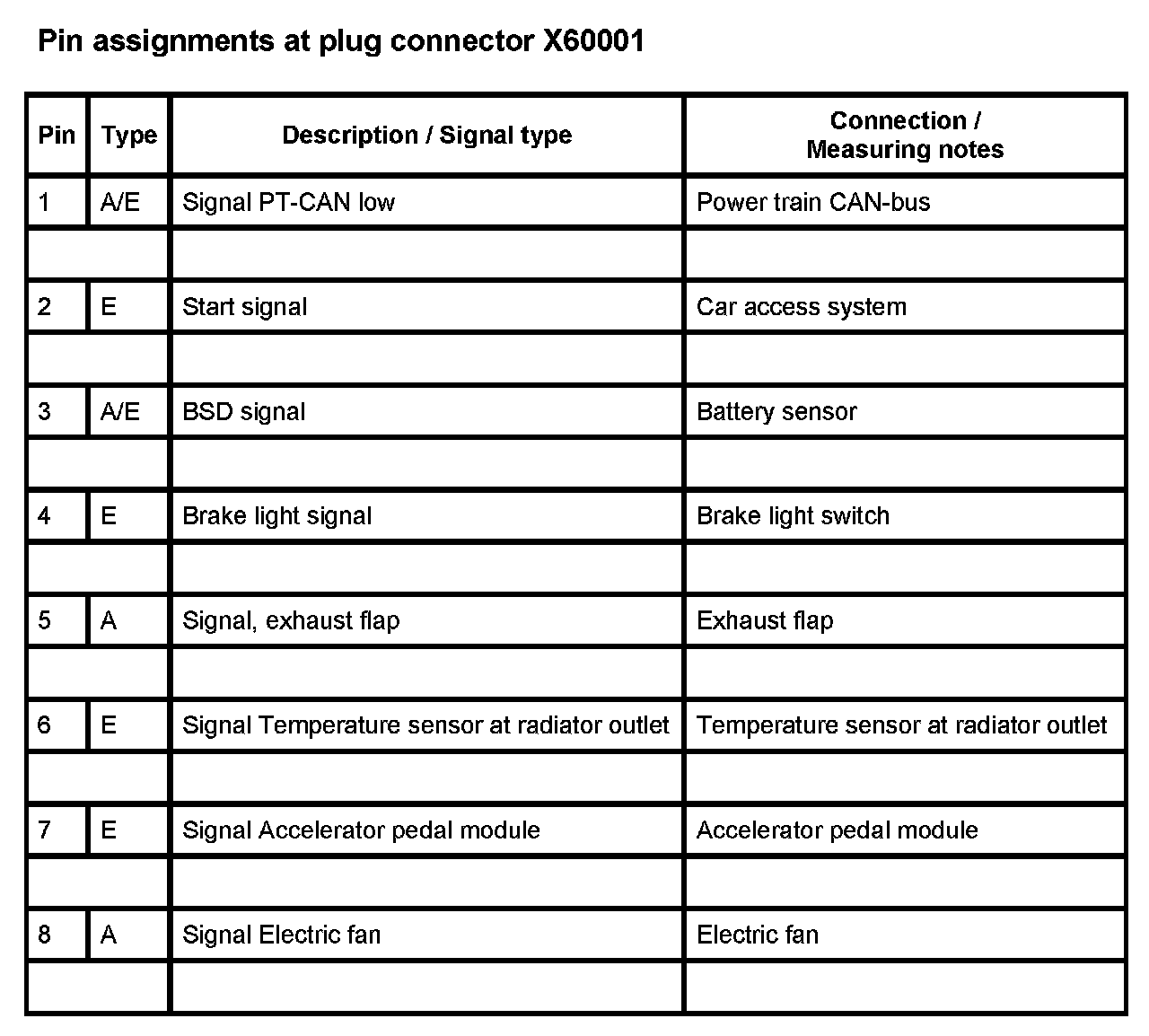

X60001 - Part 1:

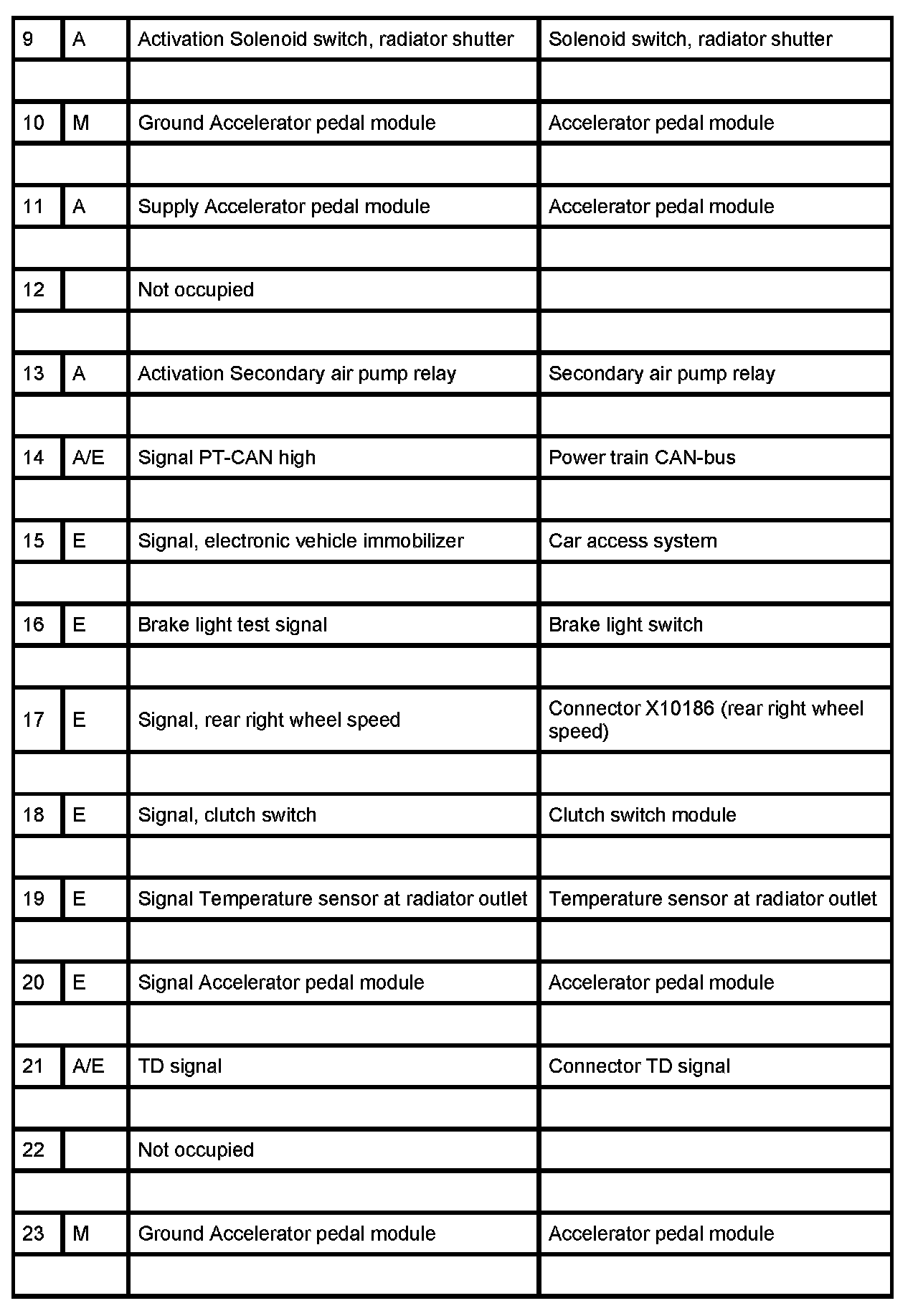

X60001 - Part 2:

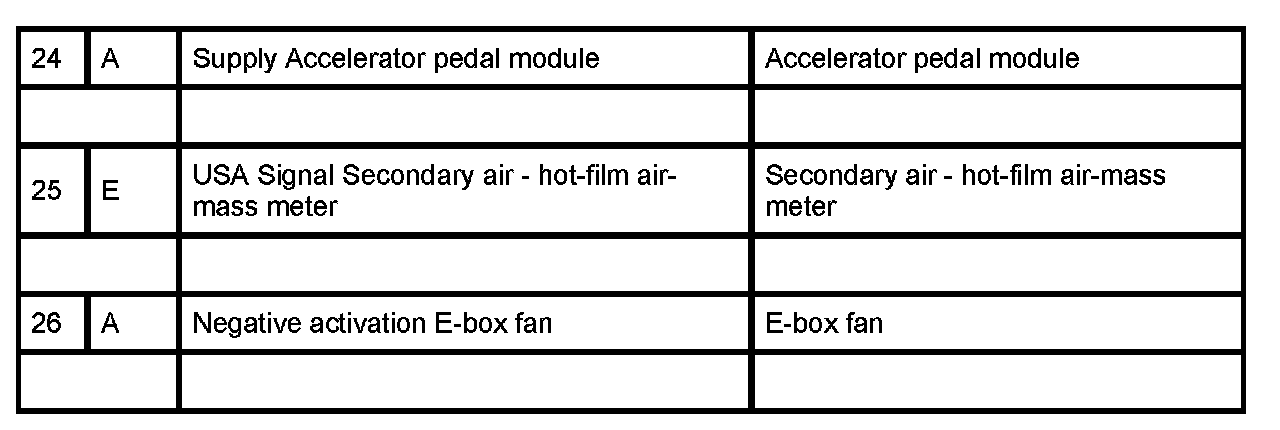

X60001 - Part 3:
