Removing and Installing/Replacing Antenna (AM Sensor)

65 24 100 - Removing and installing/replacing antenna (AM sensor)





Necessary preliminary tasks:
- Remove rear spoiler 51 71 412 Removing and Installing Rear Spoiler

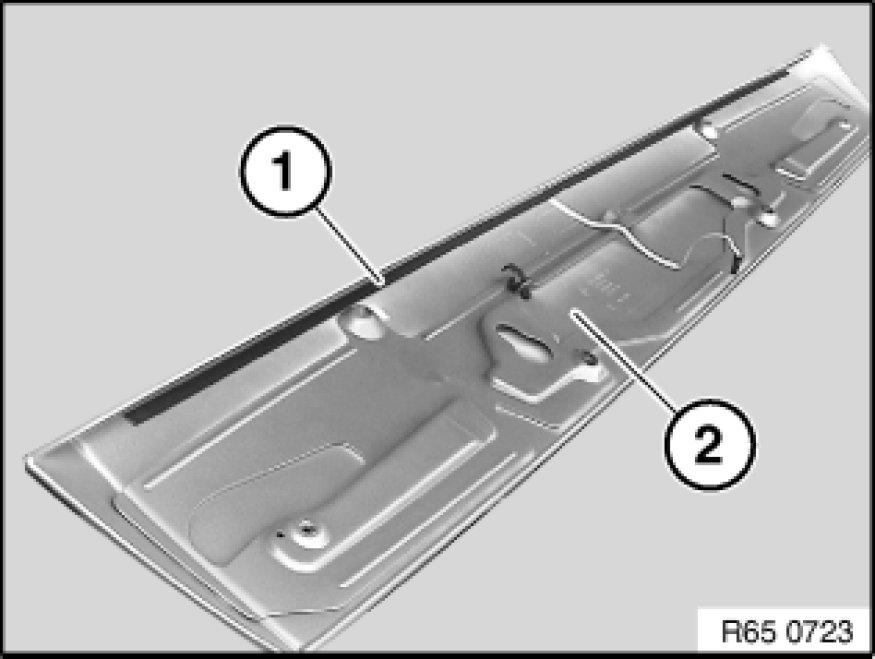

Detach antenna (1) from rear spoiler (2).

Installation Note:
- Clean adhesive area thoroughly.
- Component and ambient temperatures during bonding at least 18 °C.
