Home >> BMW >> 2007 >> 750Li (E66) V8-4.8L (N62TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation (MOST Network) >> Drives >> CD Changer (Audio) (CDC CD Changer) >> CD Changer

CD Changer

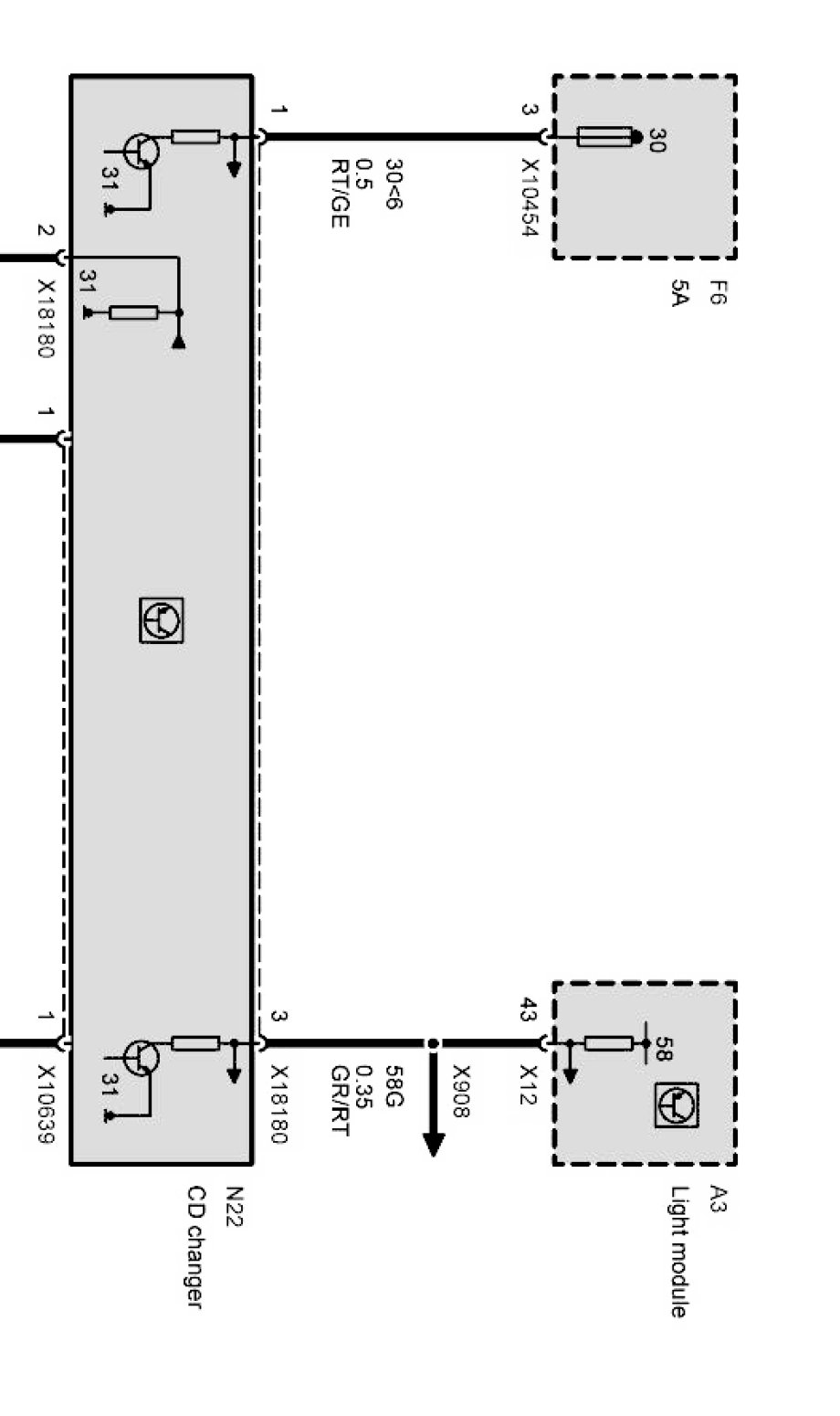

CD changer Part 1:

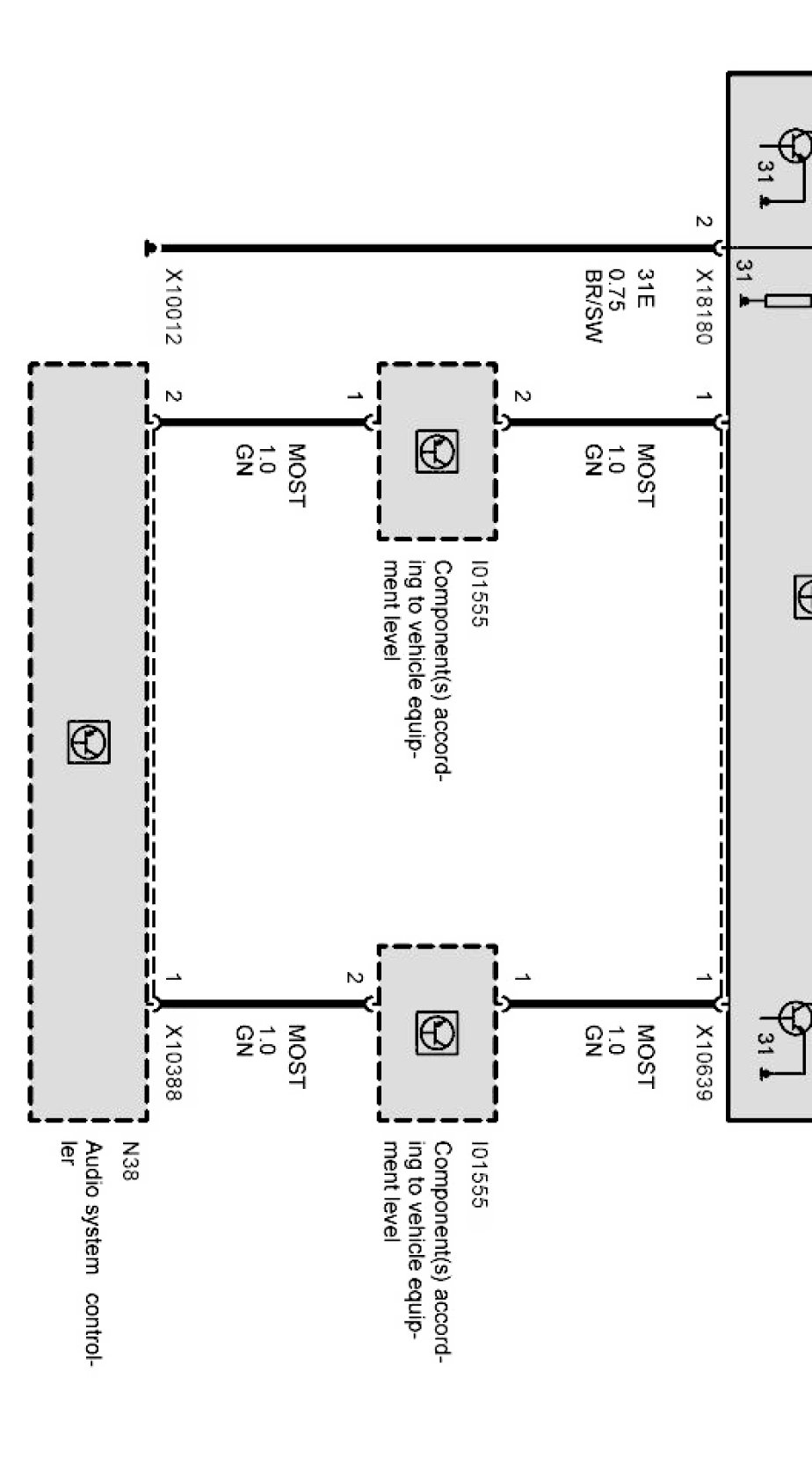

CD changer Part 2:
