Wiper Motor: Service and Repair

61 61 270 - Removing and installing complete wiper console





Remove 51 13 115 Removing And Installing/Replacing Cowl Panel Cover cowl panel cover from windshield.
Remove left fresh air duct.





Unlock plug (1) and detach.
Release screws.
Remove wiper bracket (2).





Installation:

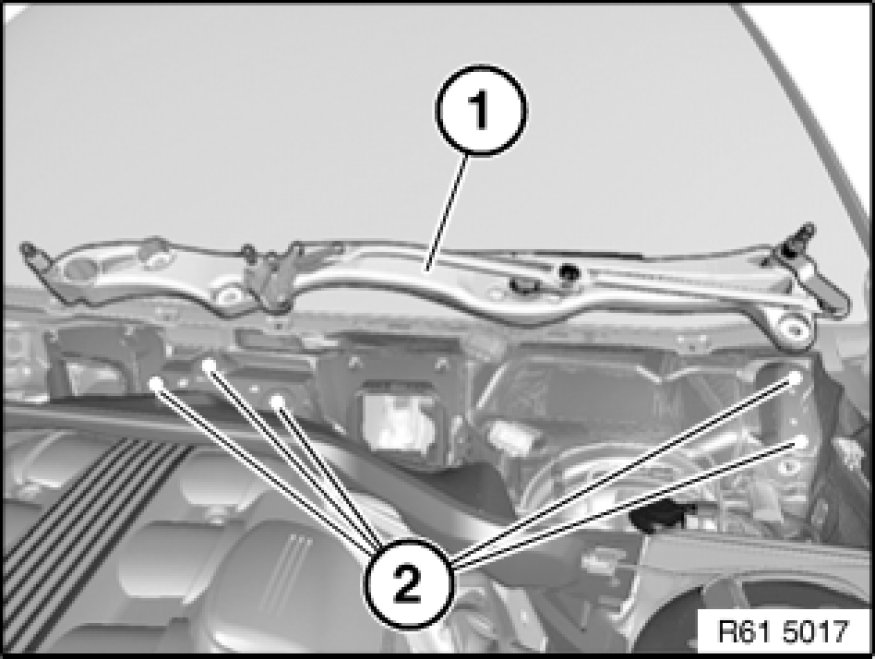

Wiper bracket (1) must rest by its own weight flat on all mounting points (2).





Installation:
Install screws in sequence 1 to 3 and tighten hand-tight.
You should be able to install all screws without having to exert effort or twisting the wiper bracket. If the tolerance compensation in the sleeves is insufficient or the wiper bracket does not rest flat by its own weight alone on all the mounting points, the wiper bracket and the body must be immediately aligned (refer to next work step).
Tighten down screws in sequence 1 to 3.

Tightening torque, 61 61 6AZ 61 61 Windshield Wipers.

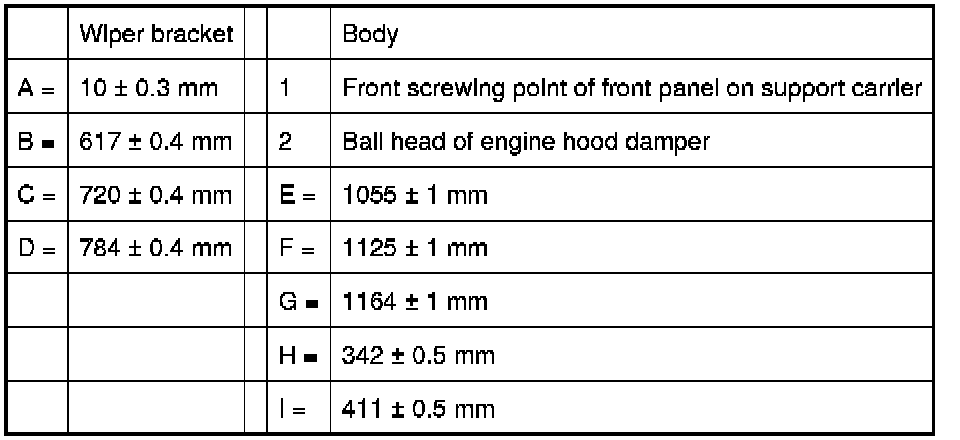

Alignment of wiper bracket/body:
