Operation CHARM
: Car repair manuals for everyone.
Home
>>
BMW
>>
2007
>>
760Li (E66) V12-6.0L (N73TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Drive
>>
Engine Management ME9/MED9 (N62 Engine or N73 Engine or N62/TU Engine)
>>
Interfaces
>>
PT-CAN
>>

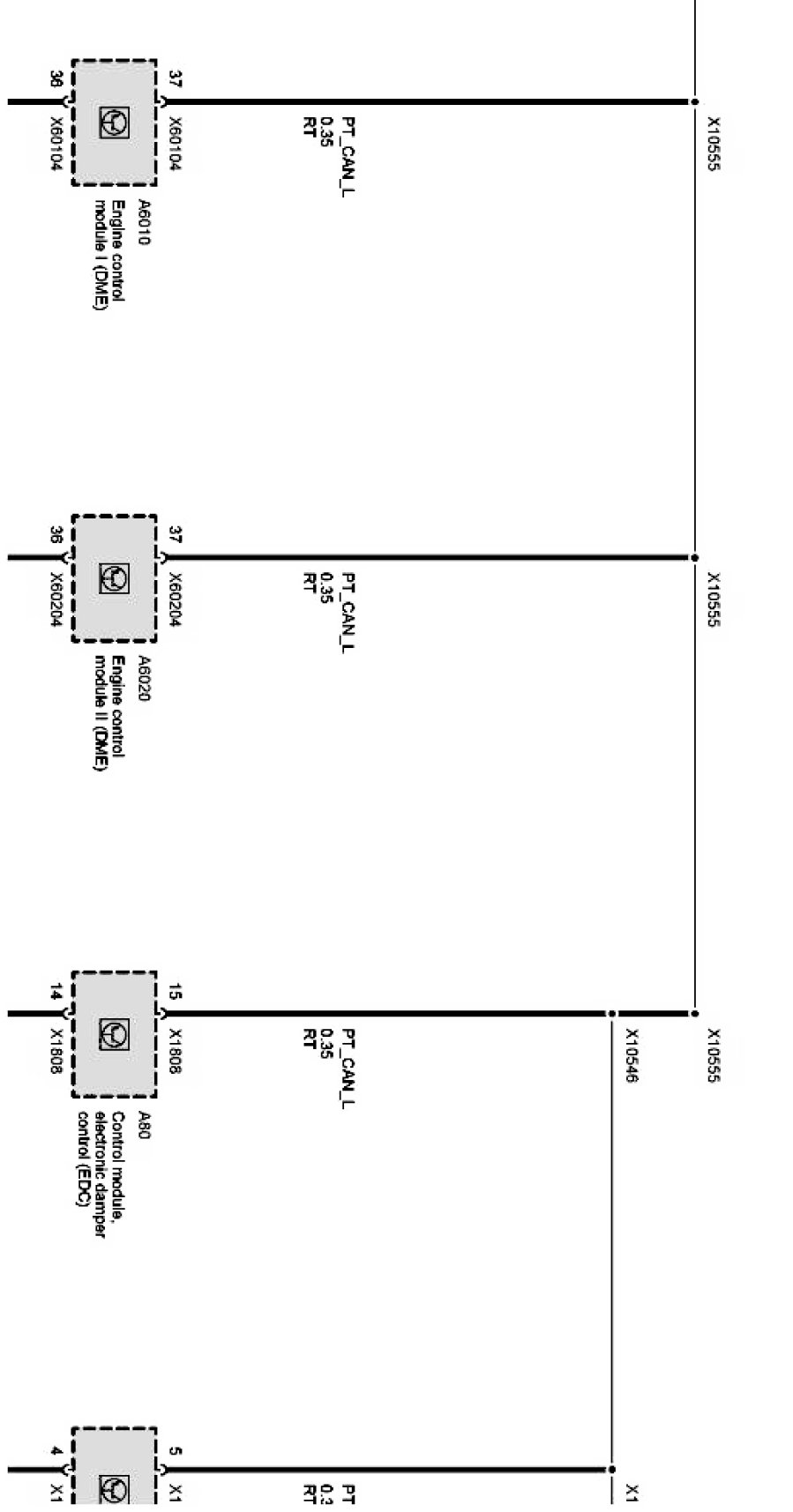

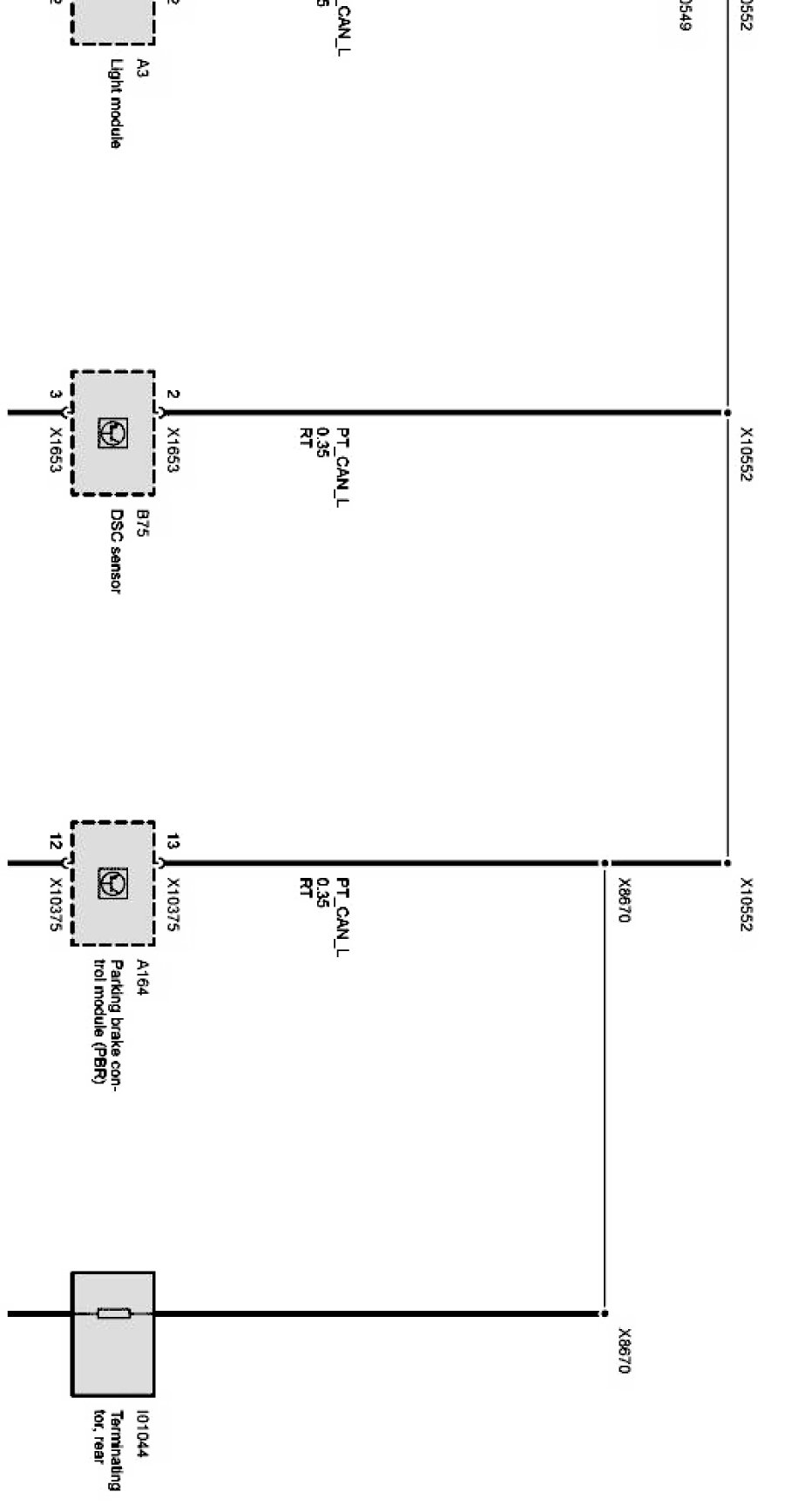

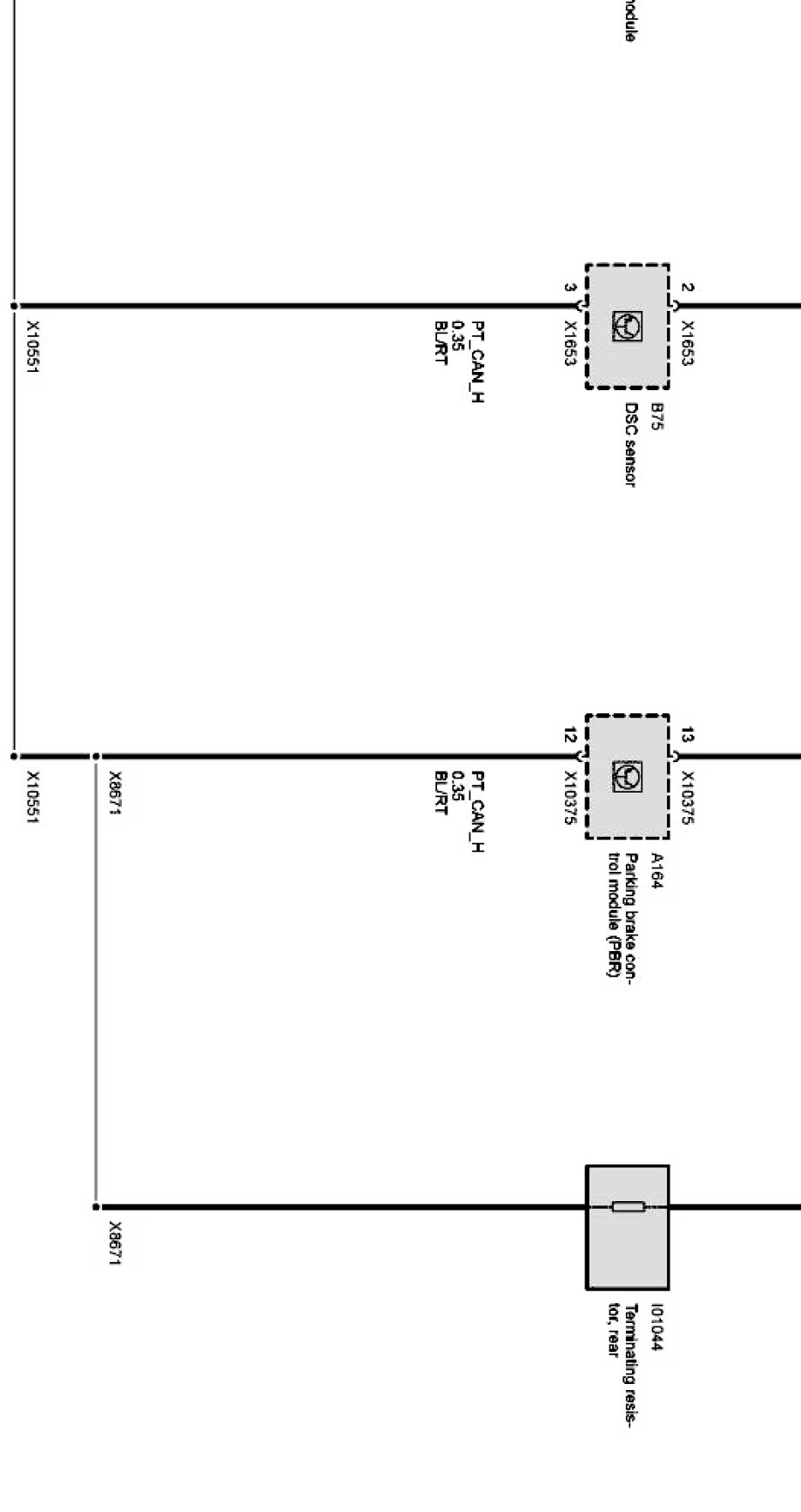

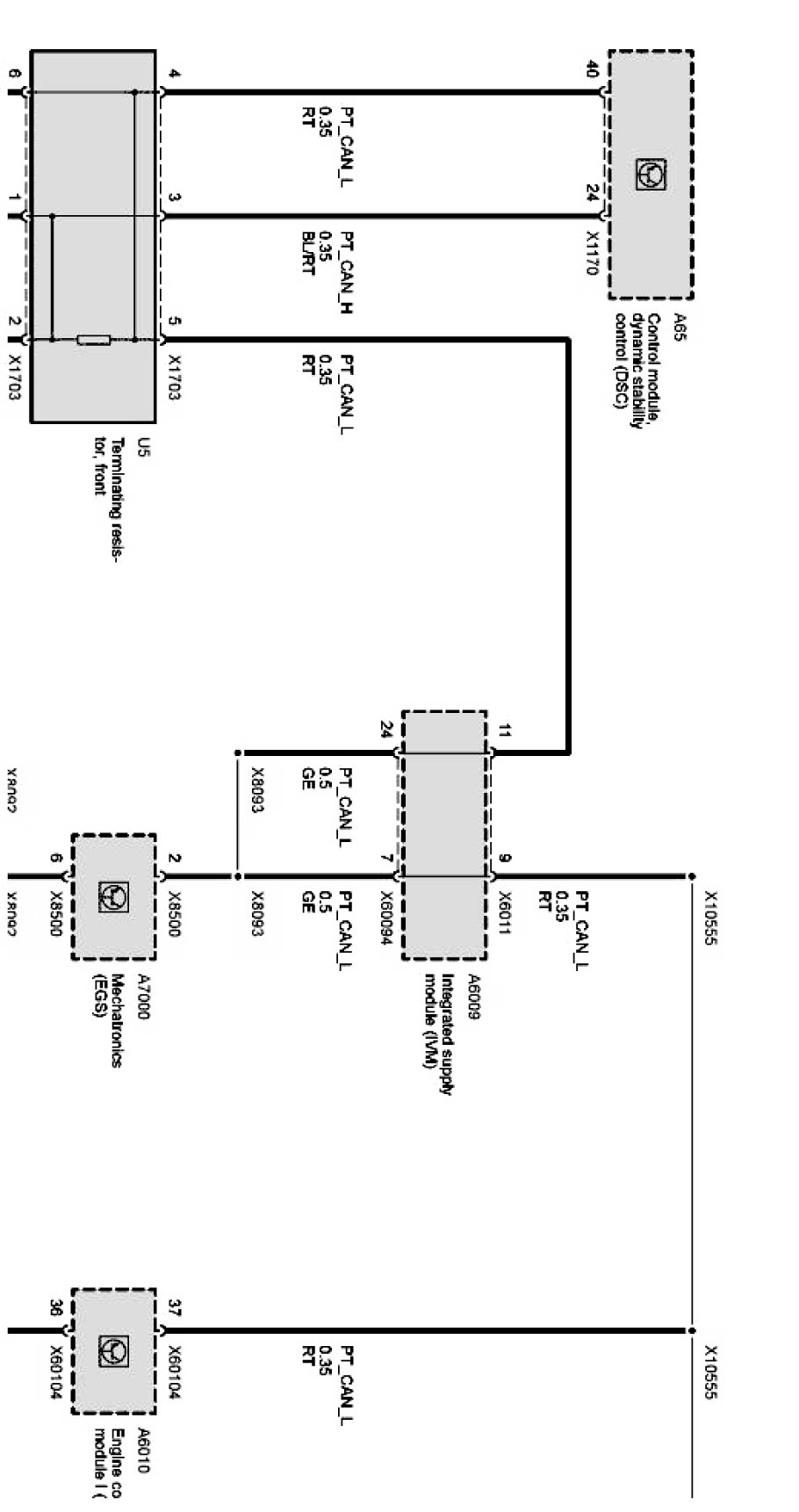

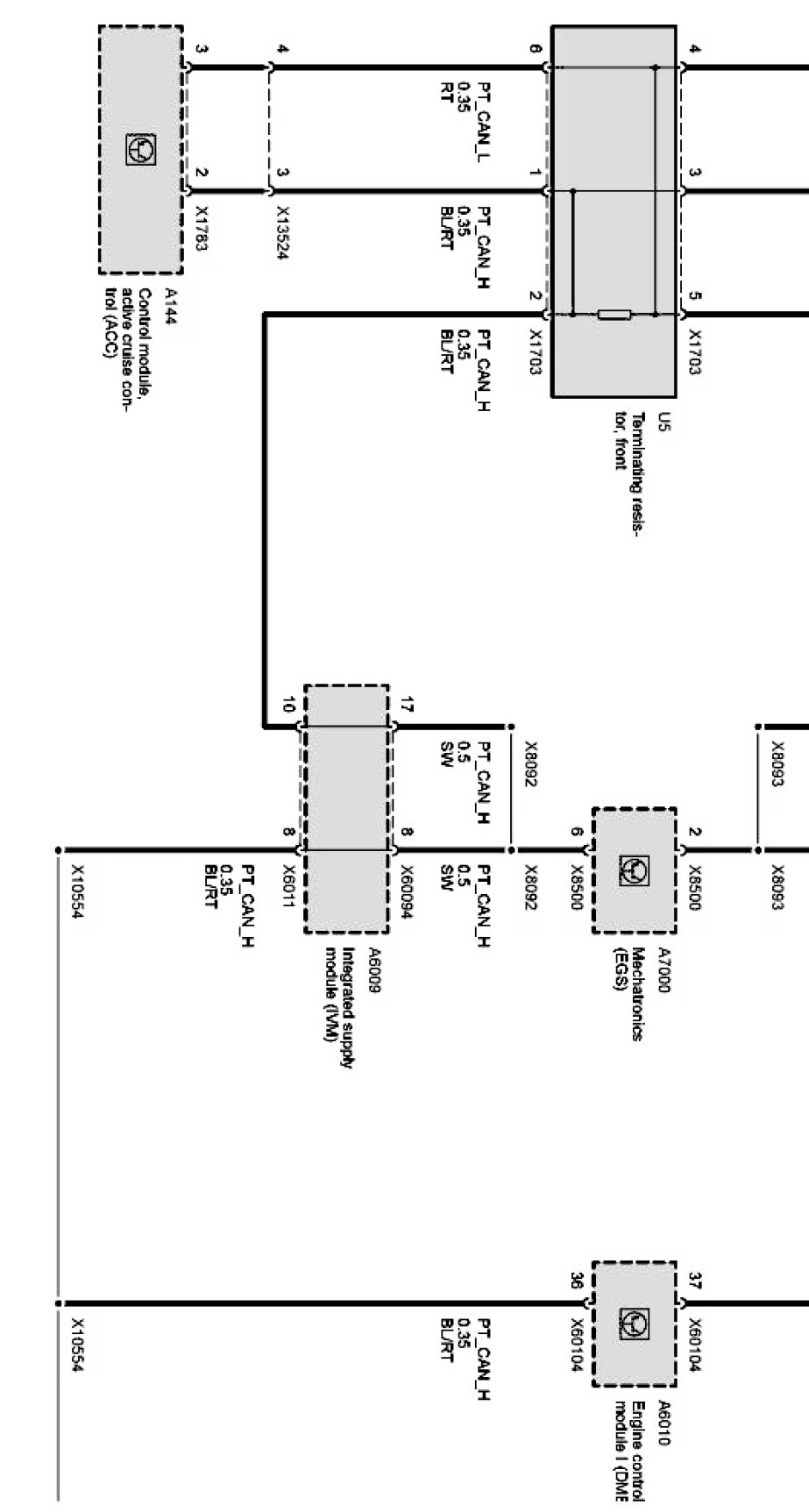

Power Train CAN-Bus (N73 Engine With Ahl Adaptive Directional Headlights As of 09/07)
Power Train CAN-Bus (N73 Engine With Ahl Adaptive Directional Headlights As of 09/07)
