Replacing Fan for Thigh Support on Front Seat (Comfort Seat)

67 32 620 - Replacing fan for thigh support on front seat (comfort seat)





Necessary preliminary tasks:
- Remove thigh support Removing and Installing/Replacing Left or Right Thigh Support.

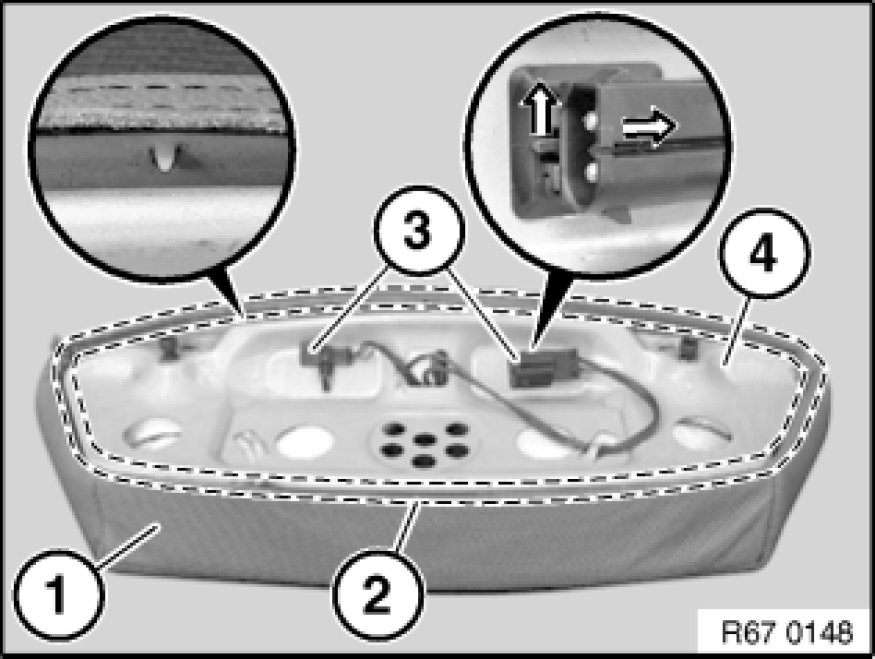

Unhook seat cover (1) in area (2).
Feed out plug housing (3) through opening in trim (4).
Remove trim (4).





Feed fan (1) in direction of arrow out of thigh support cushion section (2) and remove.
