Removing and Installing/Replacing Footwell Light (On Floor Trim Panel, Rear)

63 31 023 - Removing and installing/replacing footwell light (on floor trim panel, rear)





Special tools required:
- 64 1 020 64 1 020 Release Hook





Using special tool 64 1 020 64 1 020 Release Hook, lever out lens cover (1) in direction of arrow and remove.

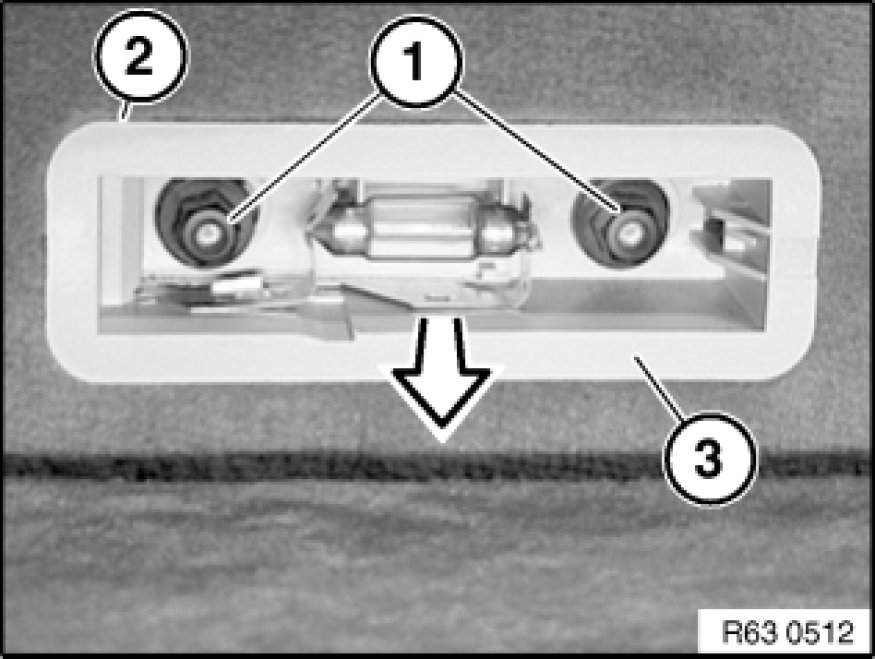

Unscrew nuts (1).

Pull out footwell light (3) in direction of arrow.

Disconnect plug connection (2) behind and remove footwell light (3).





Caution!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

Replacement:

If necessary, remove bulb.
