Removing and Installing/Replacing Rear Light (On Center of Rear Lid)

63 21 186 - Removing and installing/replacing rear light (on center of rear lid)

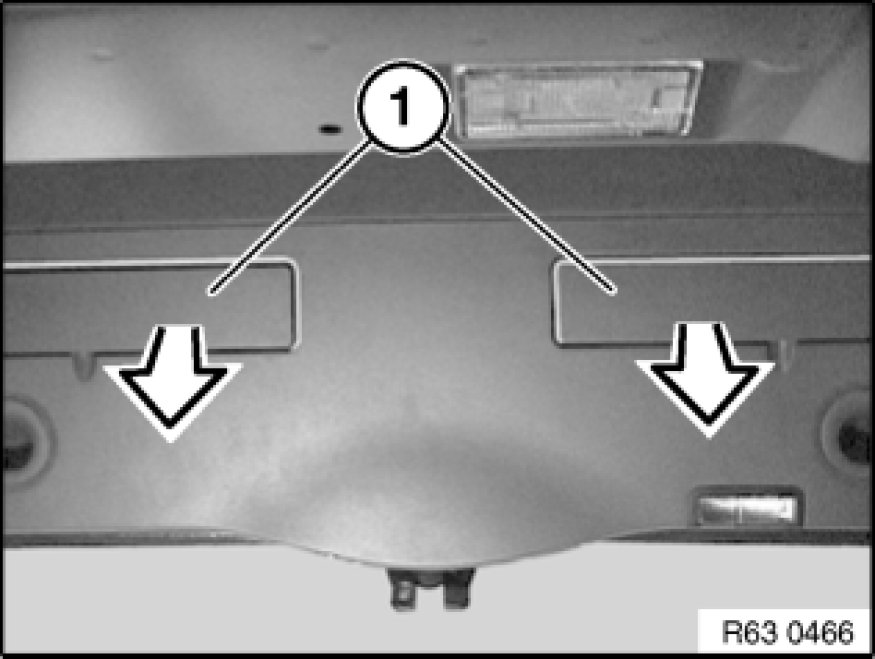

Lever out covers (1) at bottom and remove.





Note:
Releasing rear light is shown on left side.
Releasing rear light on right side is done in same way.

Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).

Note:
Secure rear light against falling out.
Lower luggage compartment lid.





Note:
If necessary, secure shims under rear light (1) against falling out.

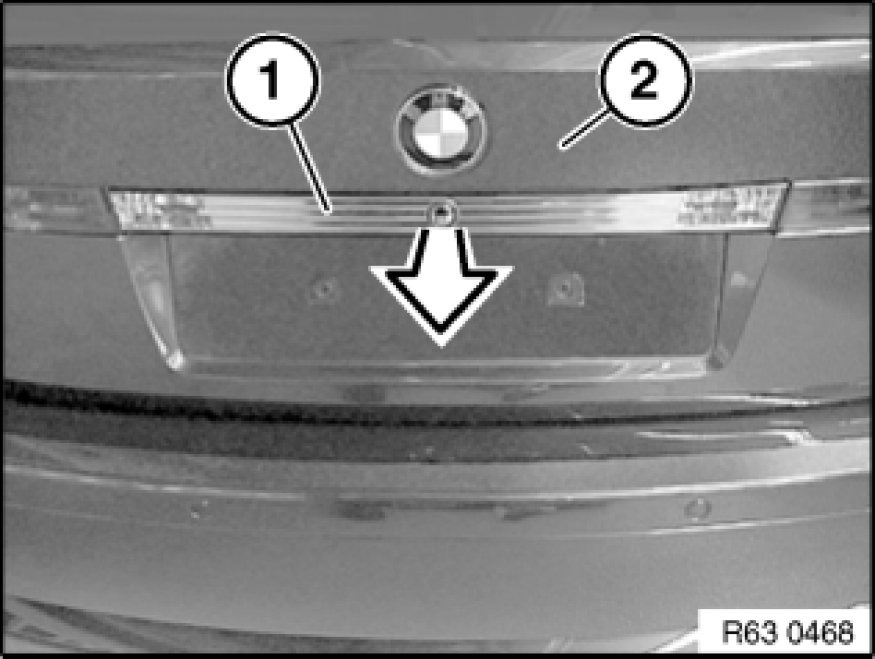

Pull out rear light (1) slightly in direction of arrow.
Disconnect plug connection underneath and remove rear light (1).

Installation:
Make sure gap is uniform all round between rear light (1) and luggage compartment lid (2).
Make sure sealing frame for rear light is correctly seated; replace Replacing Sealing Frame for Rear Light (On Center of Rear Lid) if necessary.





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).

Replacement:
- If necessary, remove bulbs.
