Removal and Replacement

17 11 046 - Removing and installing/replacing module carrier (N52K)





Necessary preliminary tasks:
- Remove fan cowl Service and Repair with electric fan
- Draining coolant Service and Repair
- Remove coolant radiator Service and Repair
- Draw off fluid from power steering

Installation:
Bleed power steering unit 32 13 006 Bleeding Power Steering Unit

- Unlock hydraulic lines on cooling loop and disconnect
- Secure A/C condenser against damage and against falling down.





Press lock (1) and remove holder (2) downwards.
Illustration shows the left holder: The same procedure applies to the opposite side.

Installation:
Rubber mounts fall out easily, ensure correct installation position.

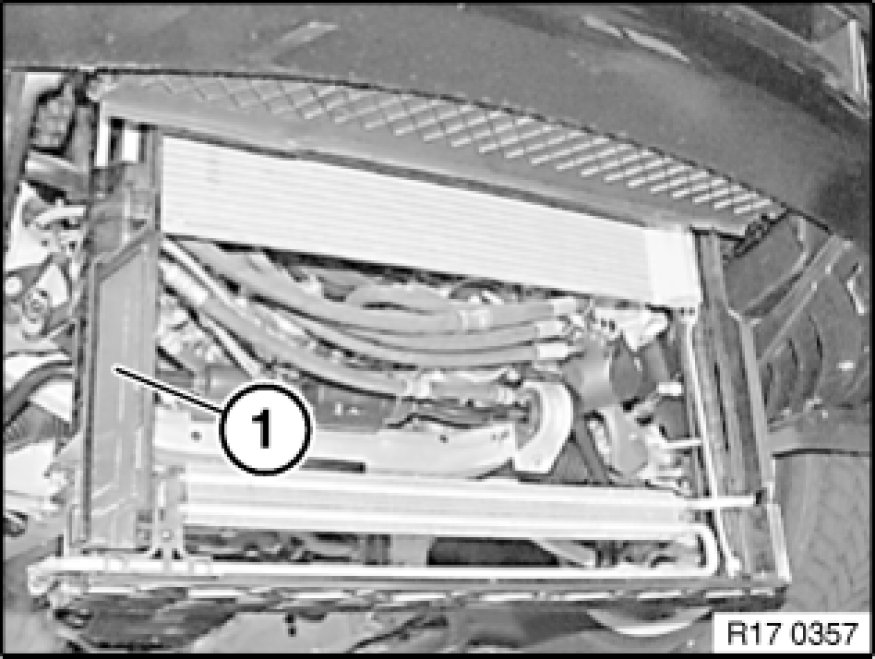

Remove module carrier (1) towards bottom.





When replacing module carrier:
Convert power steering cooling loop Service and Repair.
Add final details to vehicle.
Check system for leaks.
