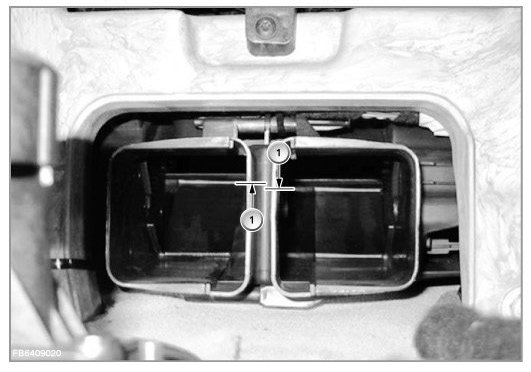

Rear Blower Stratification Flap Graphic



Rear Blower Stratification Flap Graphic

Differences in flap pretension and incorrect setting angles prevent the stratification flaps from fully closing.
