Transmission Designations

23 Transmission designations

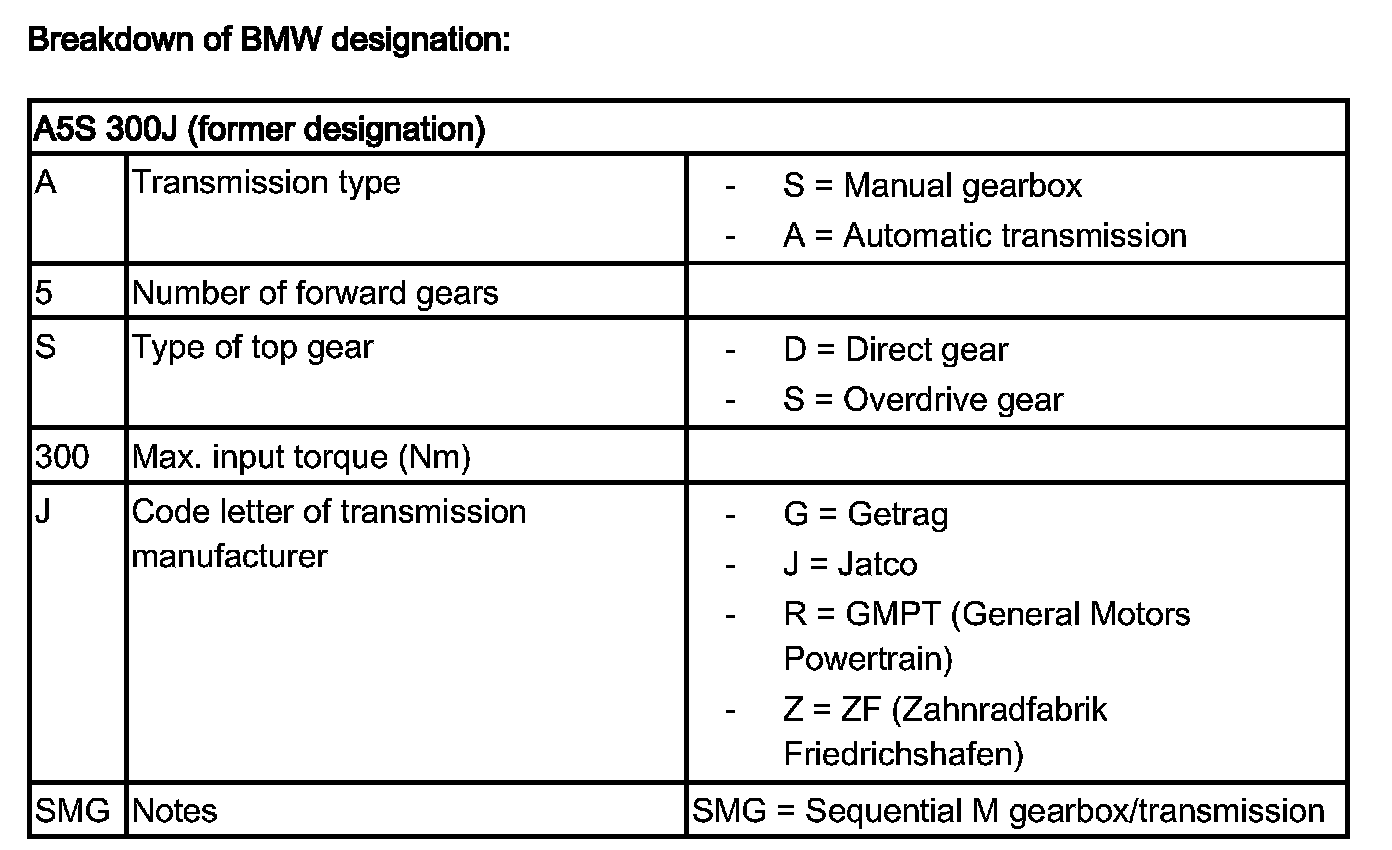

Breakdown of BMW designation:

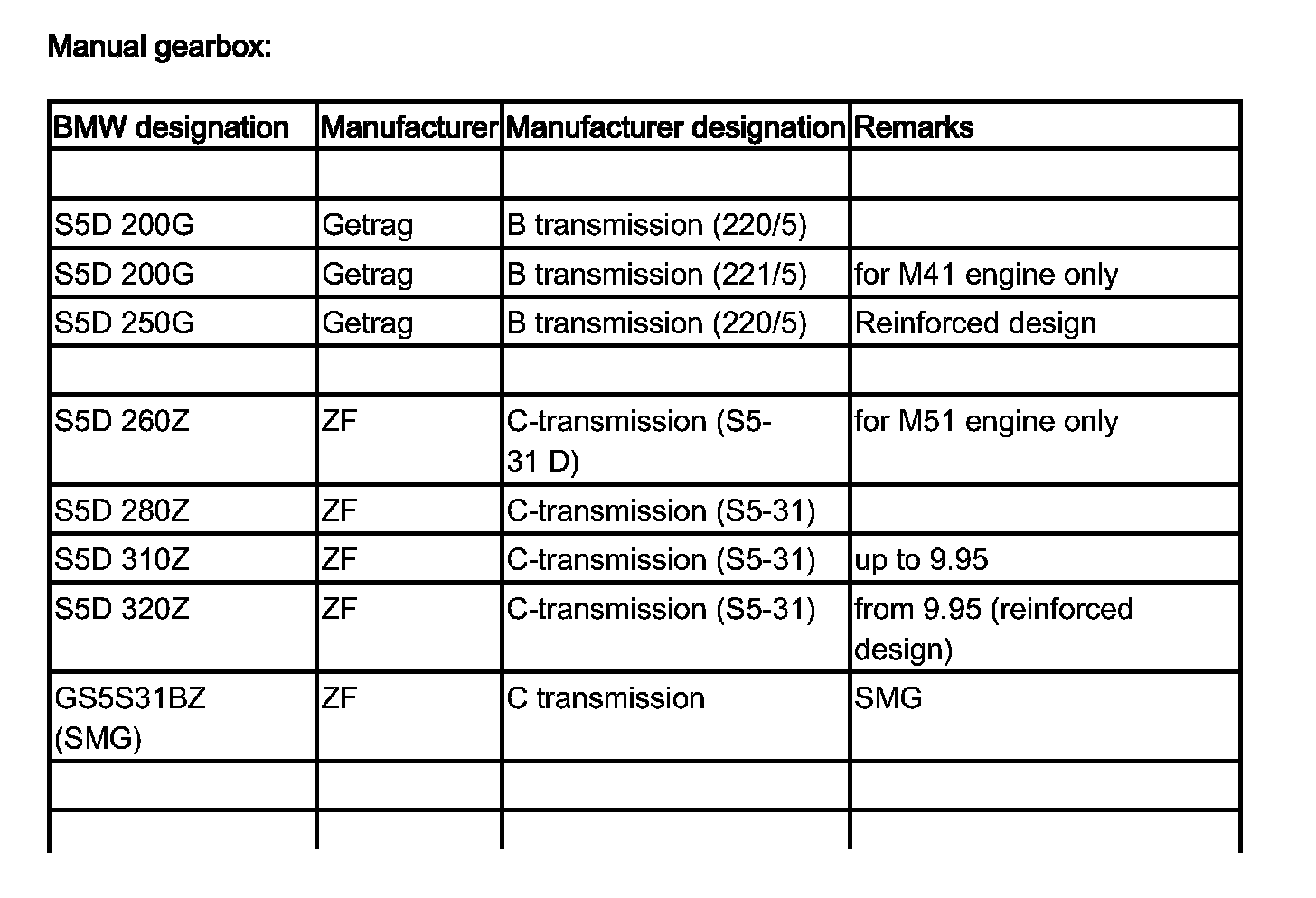

Manual gearbox:








Automatic transmission:
