Air Duct: Service and Repair




64 22 ... - Removing air ducts





Detach right footwell heating duct (1) in area (2) in direction of arrow.

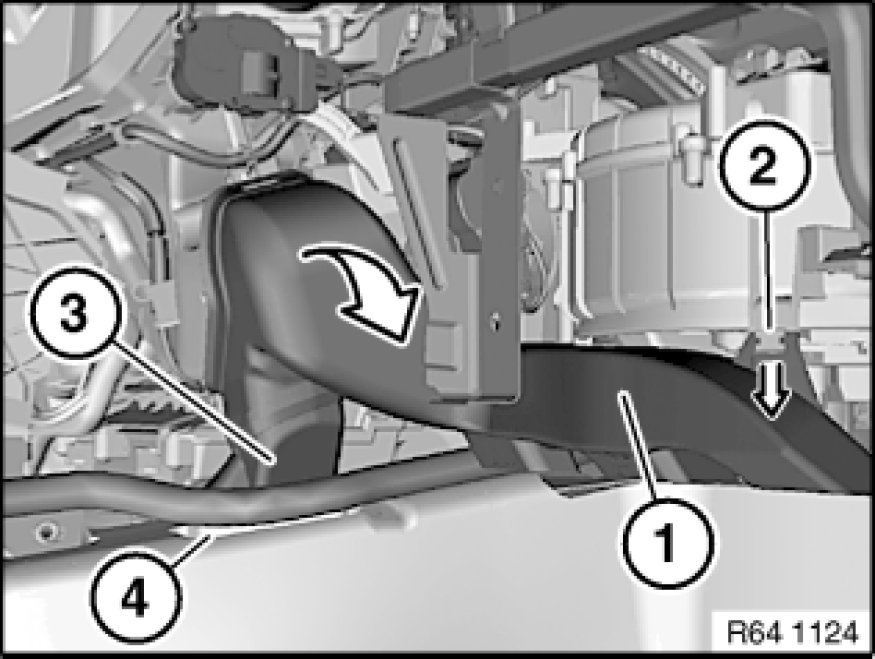

Detach right footwell heating duct (1) with adapter (3) from heater/air conditioner and remove in direction of arrow from right rear compartment heating duct (4).






Note:
Lower instrument panel trim partially shown.

Detach left footwell heating duct (1) in area (2) in direction of arrow.

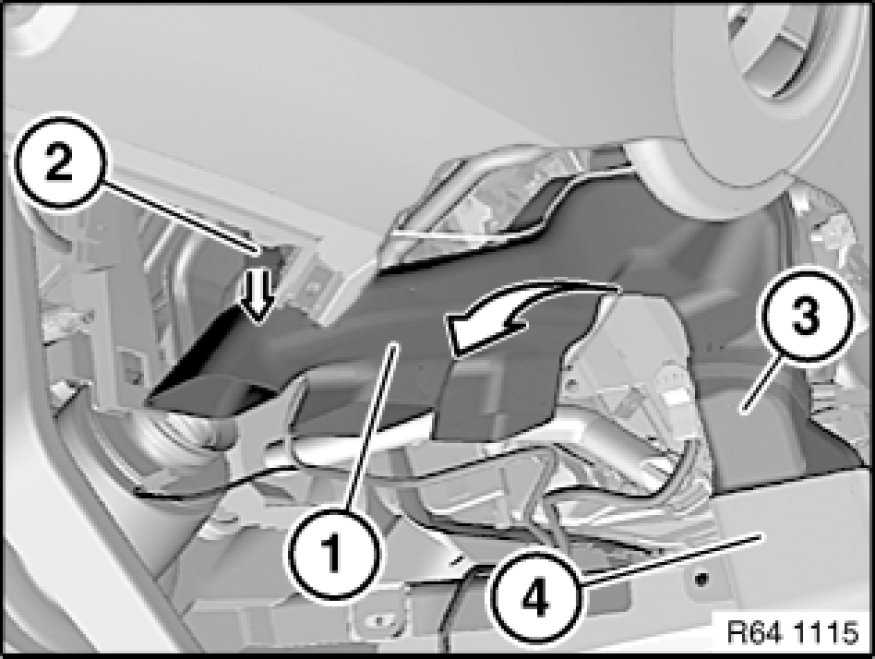

Detach left footwell heating duct (1) with adapter (3) from heater/air conditioner and remove in direction of arrow from left rear compartment heating duct (4).






Installation:
Make sure retainer (2) is correctly seated on left/right footwell heating duct (1).
Insert footwell heating duct (1) with adapter (3) in rear compartment heating duct (4).

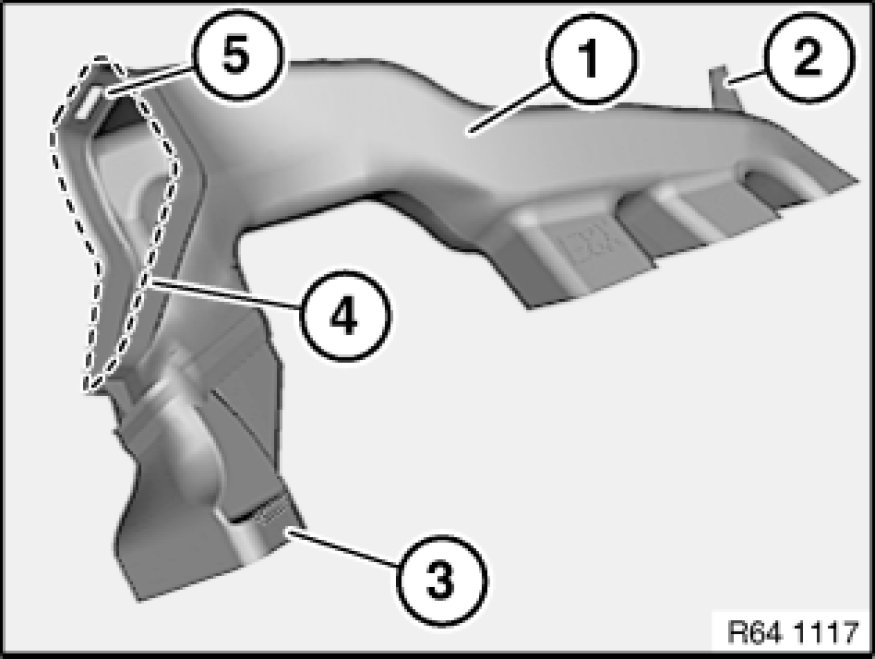

Attach footwell heating duct (1) in area (4) to heater/air conditioner. Make sure assembly is locked exactly at point (5).
