Ventilation Fan Motor: Service and Repair

65 12 355 - Removing and installing/replacing fan (luggage compartment recess)





Necessary preliminary tasks:
- Remove luggage compartment floor trim panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel.
- Remove spare wheel.





Take off cover for control units (1).

Installation:
Make sure cover for control units (1) is correctly seated on locating pins (2).





Note:
Illustrations show removal from the E60.

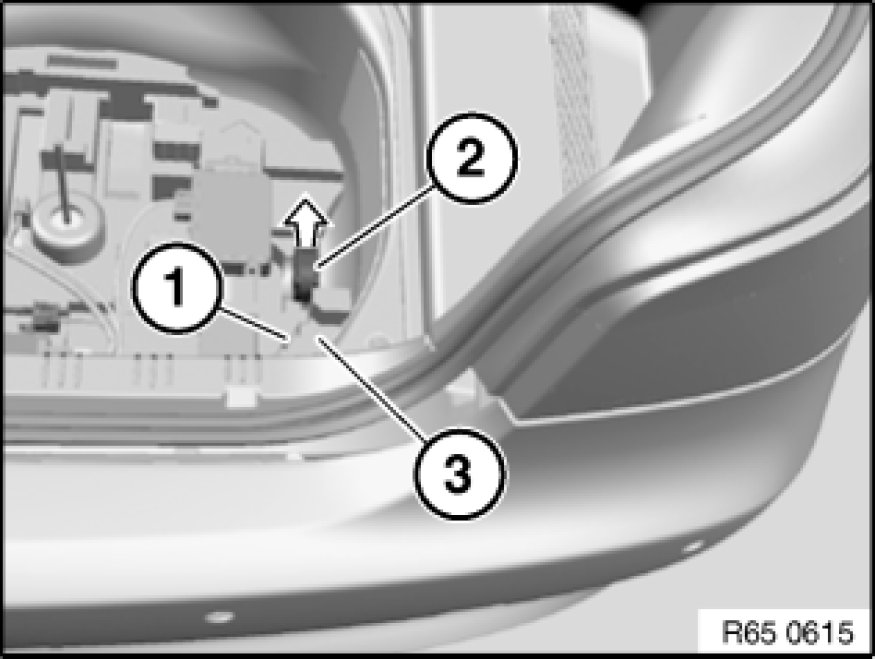

Disconnect plug connection (1).

Lift fan (2) out of mounting for control units (3).
