Body - Rattle From Cargo Cover Over Rough Roads
SI B 51 21 10Body Equipment
June 2010
Technical Service
SUBJECT
Rattle from the Cargo Cover
MODEL
E61 (5 Series Sports Wagon)
SITUATION
A plastic rattle may be heard from the cargo area when driving over rough roads with the cargo cover in the closed position.
CAUSE
Hard contact between two mating plastic parts in the D-pillar area
CORRECTION
Isolate the trim with felt tape.

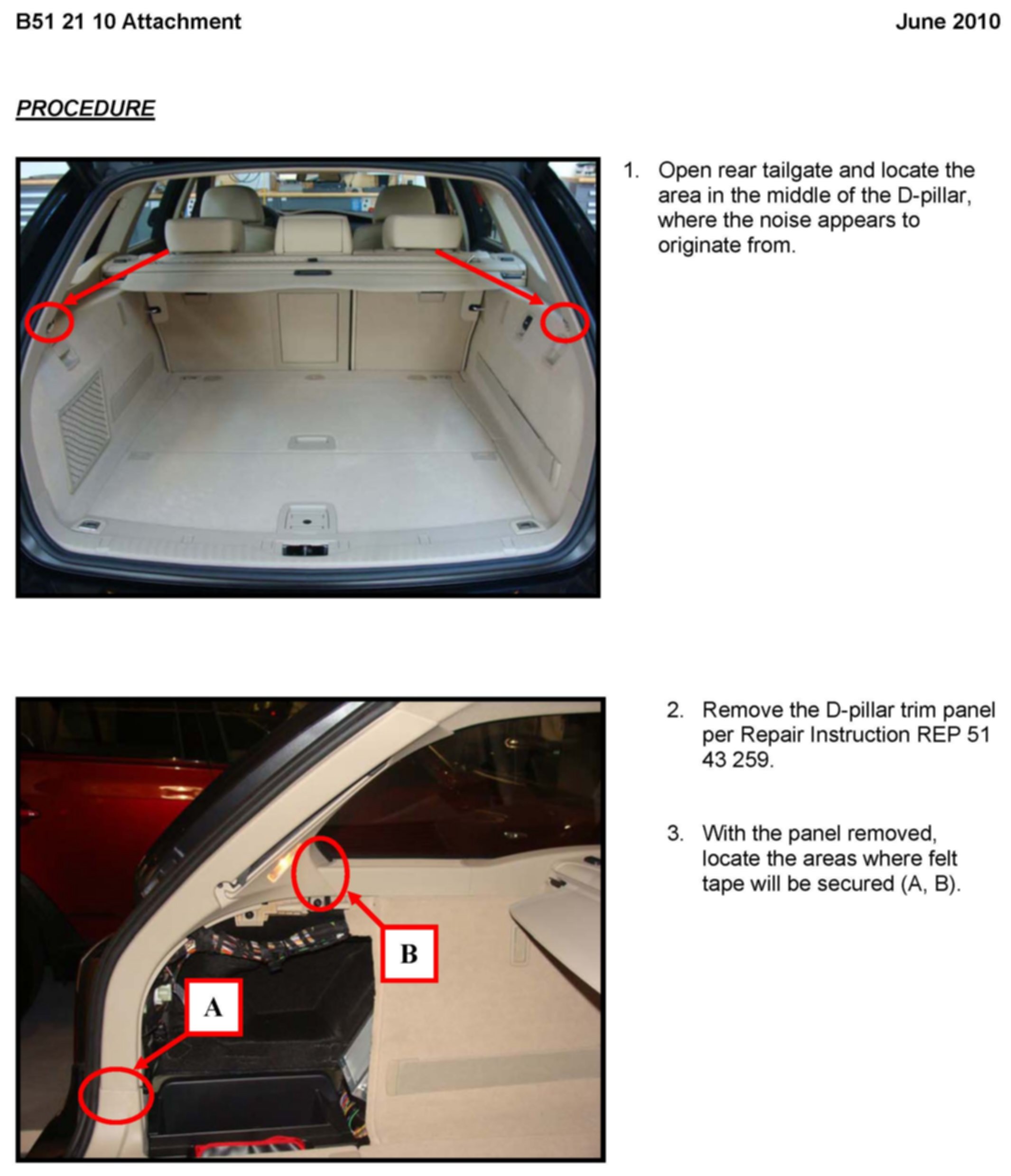

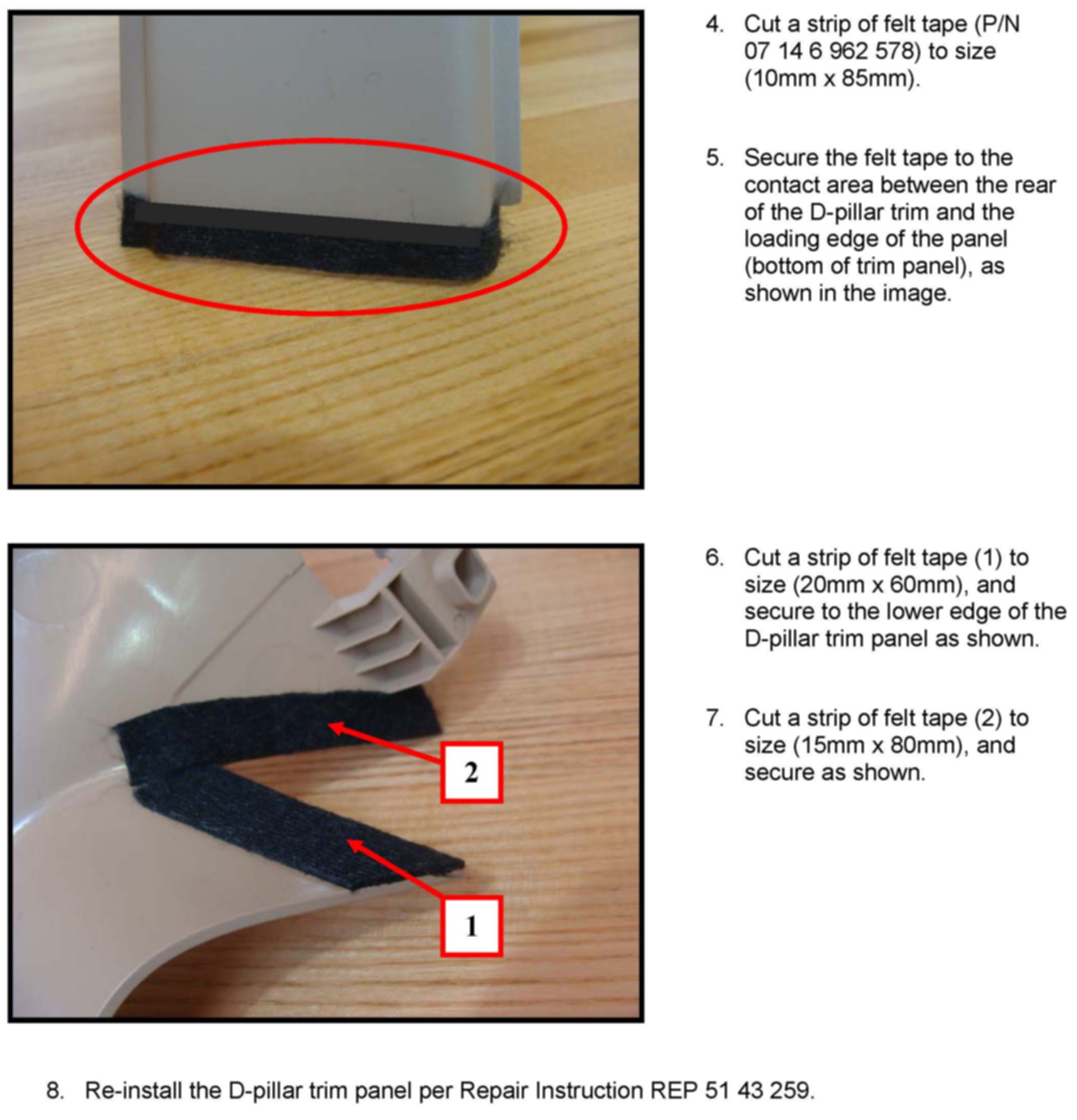

PROCEDURE
Refer to the attachment B512110 Procedure.pdf.

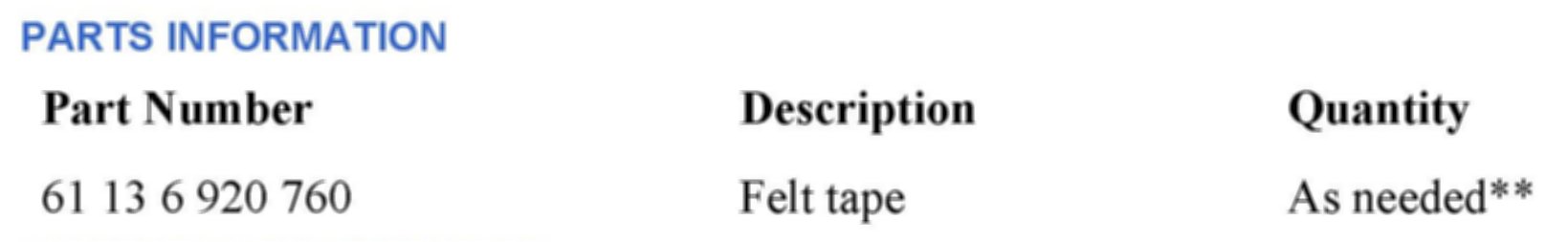

PARTS INFORMATION

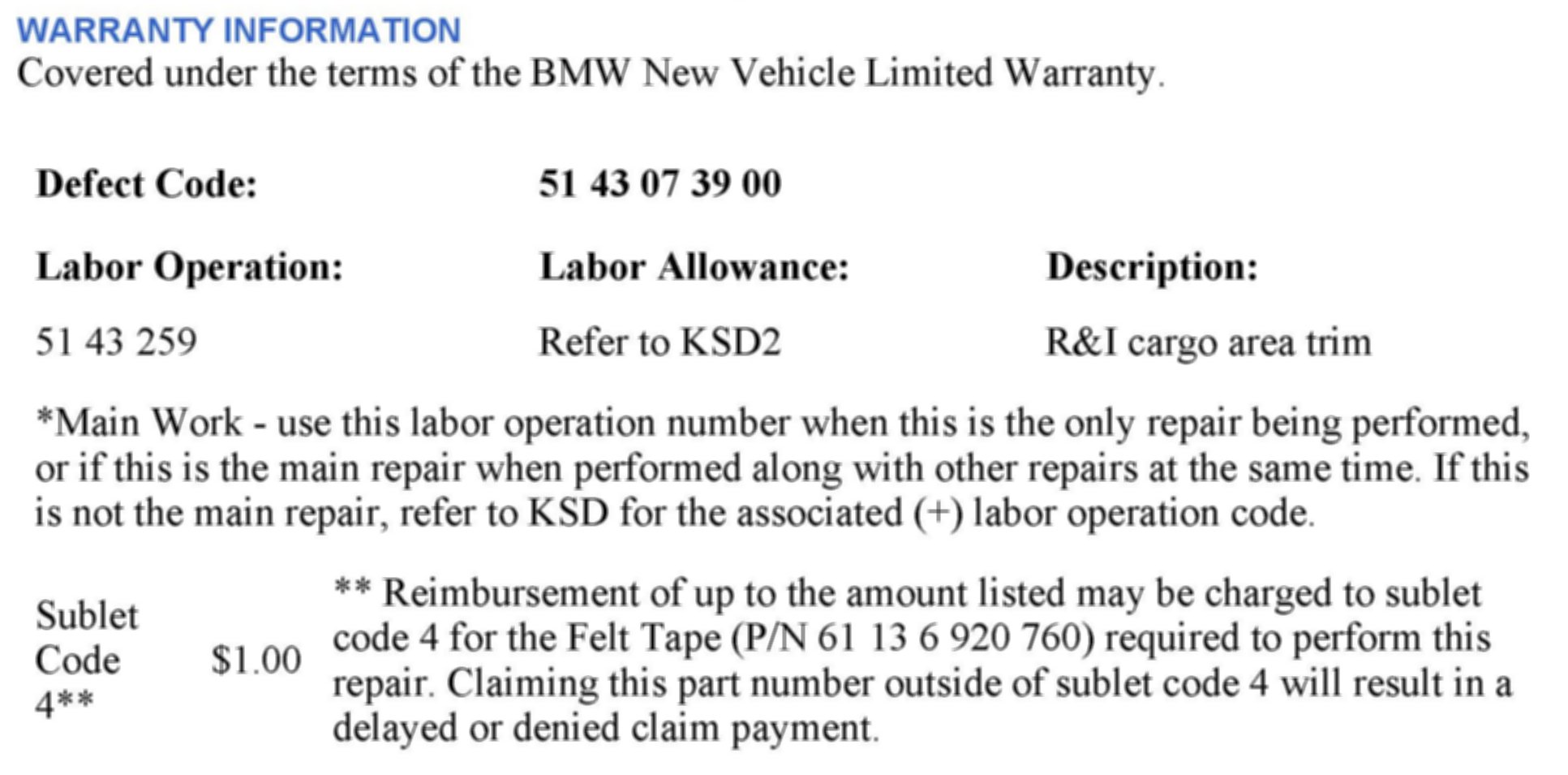

WARRANTY INFORMATION
ATTACHMENTS
view PDF attachment B512110Procedure.
