Electrical - Various Electrical Malfunctions
SI B61 07 10General Electrical Systems
November 2012
Technical Service
This Service Information bulletin supersedes SI B61 07 10 dated July 2010.
[NEW] designates changes to this revision
SUBJECT
Various Electrical Problems
MODEL
[NEW] E61
SITUATION
There are various electrical malfunctions, for example: central locking, radio reception, tailgate, and rear lighting.
CAUSE
Fatigued and broken wires in the tailgate harness.
The problem may affect either the left or the right side harness at the tailgate.
CORRECTION
Install a repair harness on the affected side of the vehicle.
[NEW] PROCEDURE
Refer to following ISTA Repair Instructions:
^ "61 12 162 Installing the repair harness of the tailgate and rear window on the left"
^ "61 12 164 Installing the repair harness of the tailgate and rear window on the right"

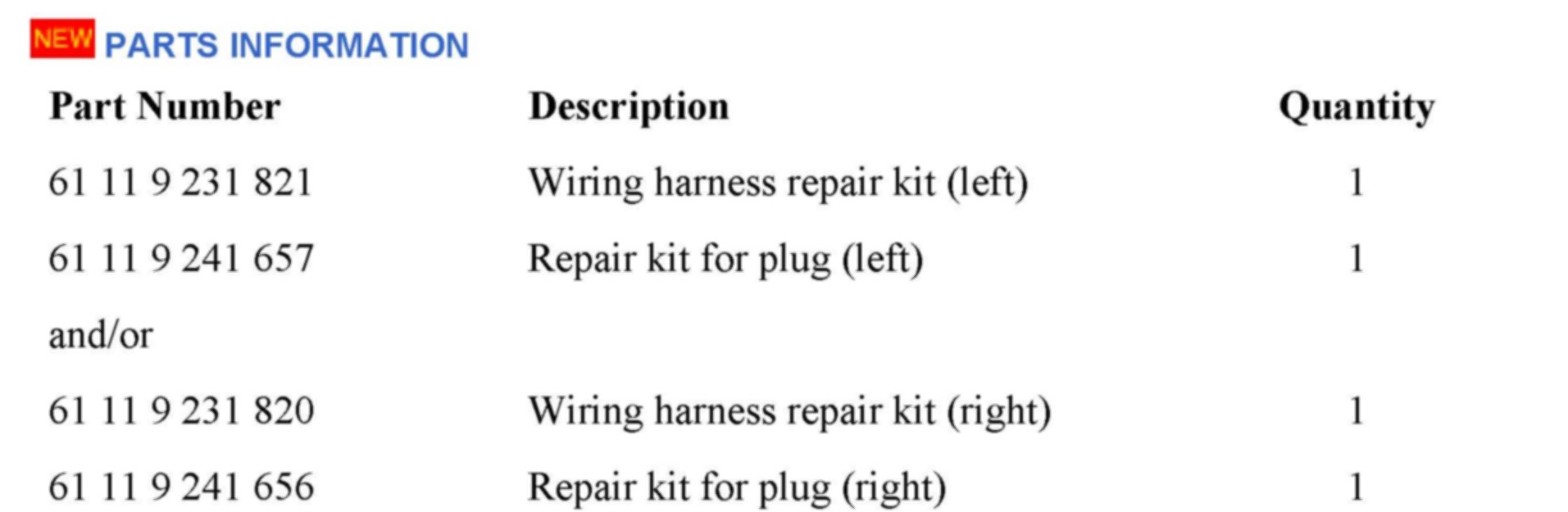

[NEW] PARTS INFORMATION

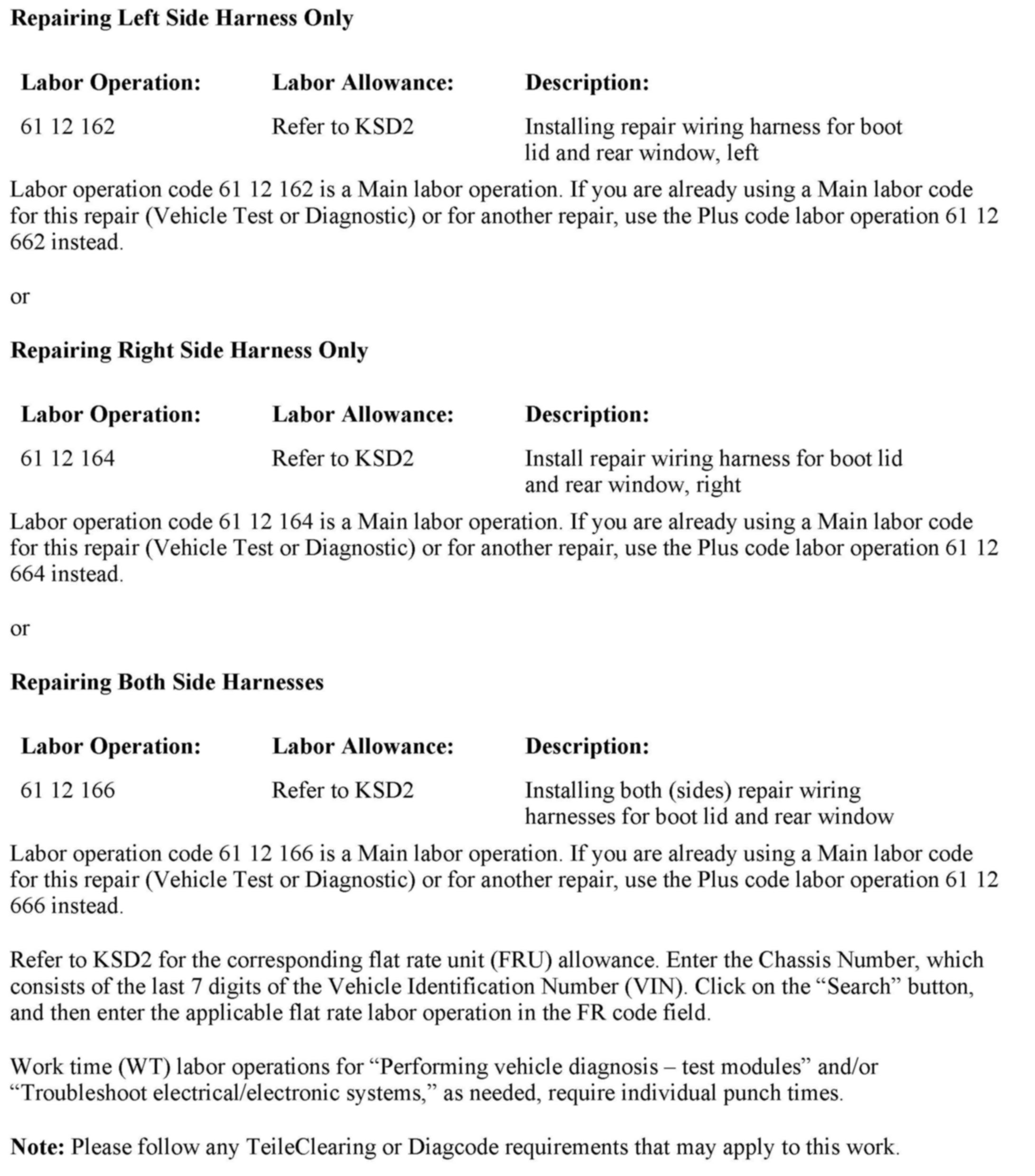

[NEW] WARRANTY INFORMATION
