Home >> BMW >> 2008 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Directional Headlight/Beam Height Control (AHL Adaptive Directional Headlights Without LM2 Light Module 2 W/ Adaptive Headligh >> Adaptive Headlight (6 Series With Ahl Adaptive Directional Headlights)

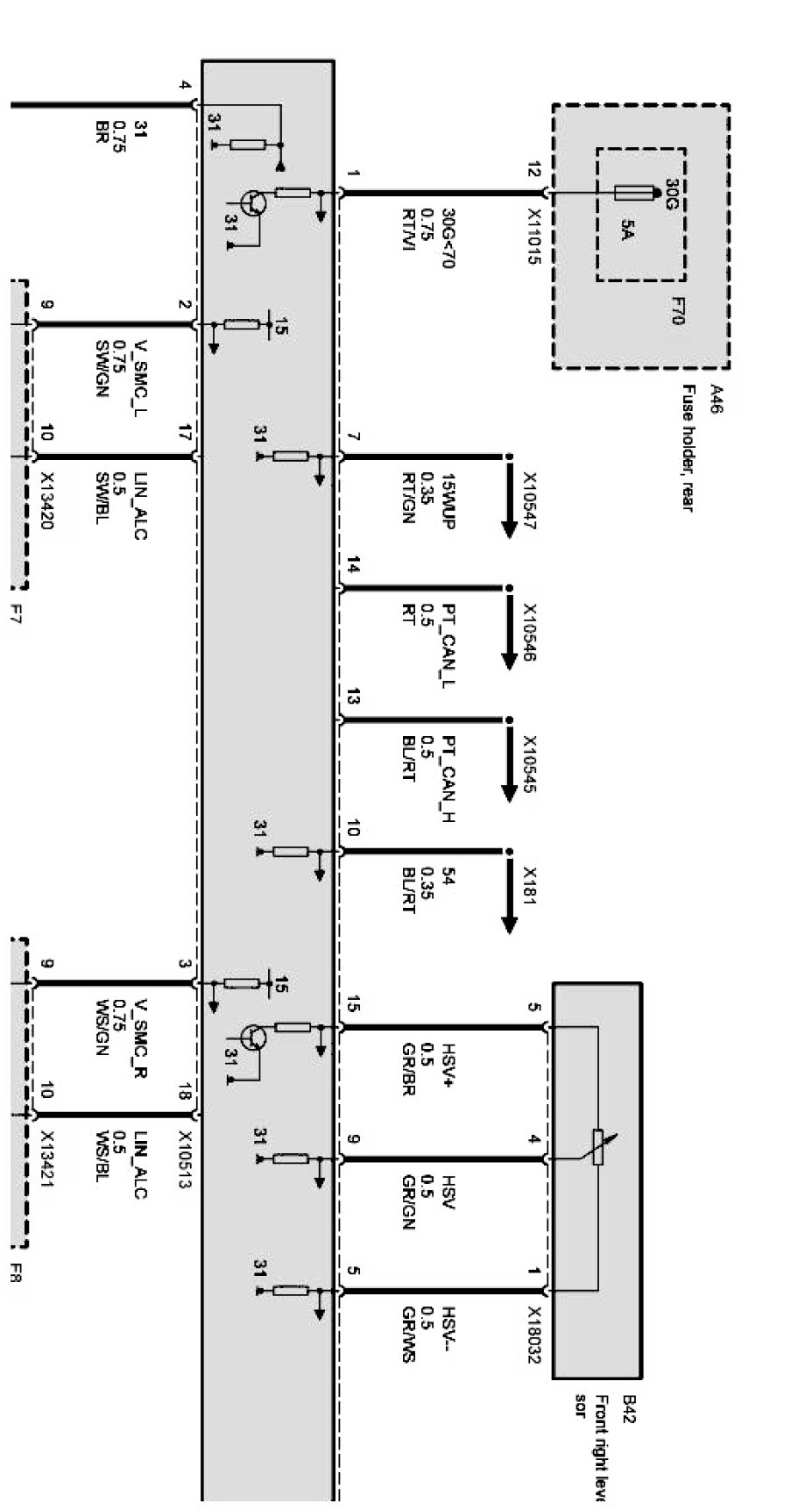

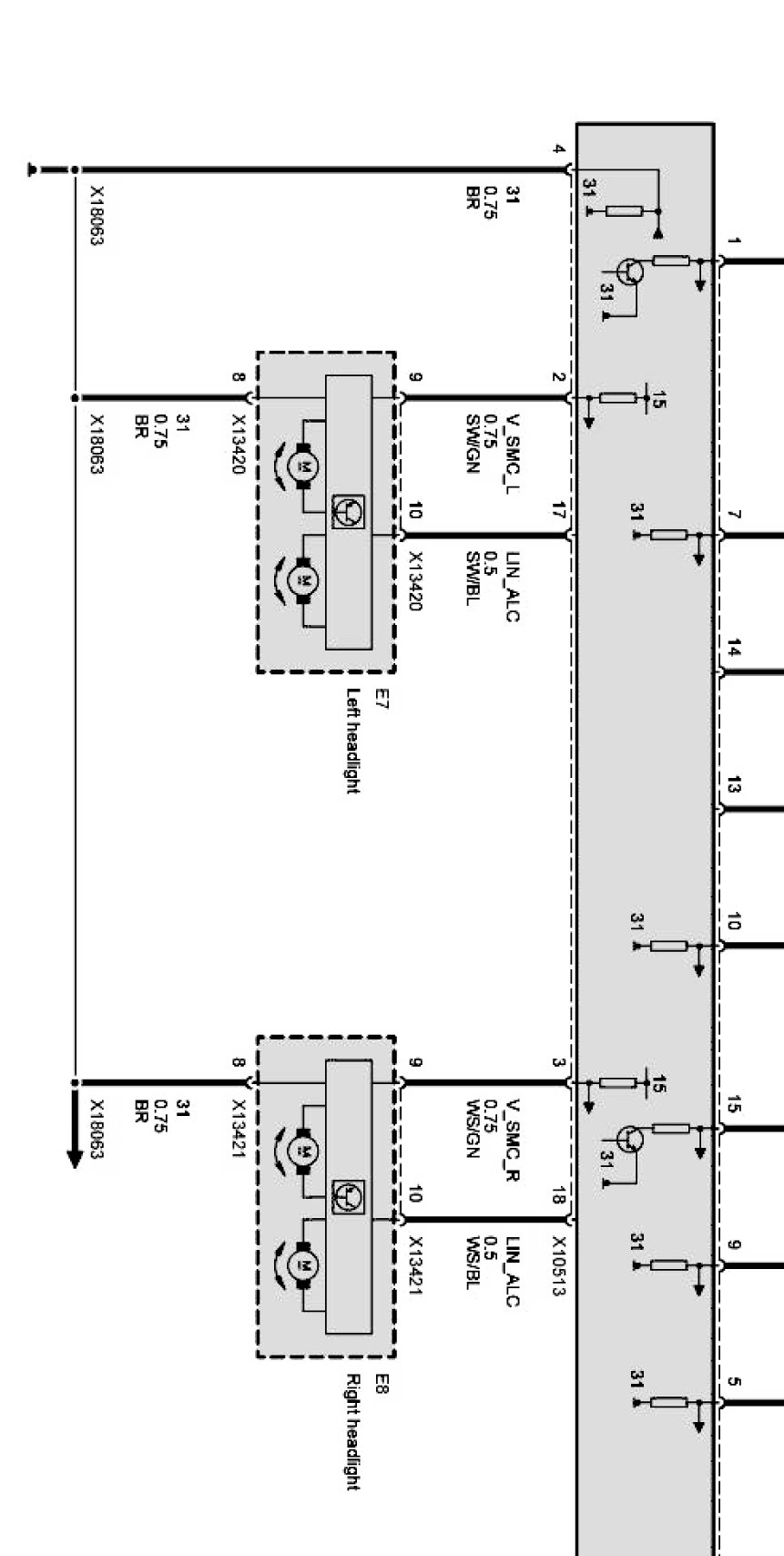

Adaptive Headlight (6 Series With Ahl Adaptive Directional Headlights)
