Sunroof (SHD Sliding/Tilting Sunroof or SHD Slide/Tilt Sunroof 2)
>>
Electric Sunroof (Coupe or Touring) As of 09/05)
Electric Sunroof (Coupe or Touring) As of 09/05)
Electric sunroof Part 1:

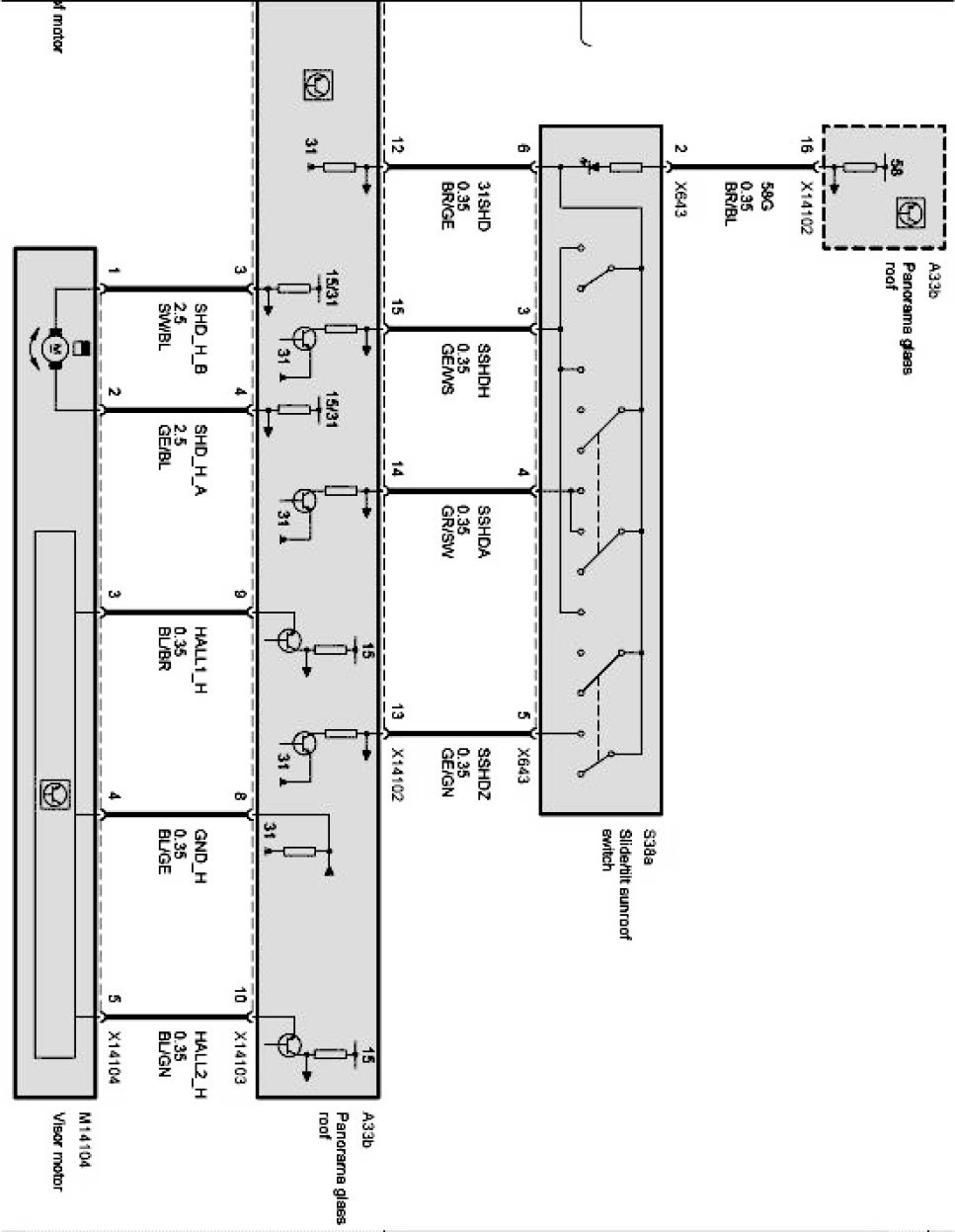

Electric sunroof Part 2:
