Electrical - Various Electronic Systems Malfunctions

SI B 61 13 07
General Electrical Systems

November 2007
Technical Service

SUBJECT
Electronic Malfunction CC Message Caused by Shorted Wiring

MODEL
E70 (X5)

SITUATION
The customer may complain of one or more of the following:

^ The "Electronic Malfunction" check control message may be displayed.

^ The sounds system emits a static noise from the speakers.

^ The RFK (Rear View Camera) does not pan.

^ The Airbag Warning light may be illuminated.

^ K-CAN communication, K-CAN line and K-Can wire faults are stored in various control modules.

CAUSE

Shorted wiring at the left or right subwoofer speaker mounted under the front seats

PROCEDURE

1. Troubleshoot any faults in the system using the BMW diagnosis system.

2. Perform the CAN Analysis test plan for any CAN faults in the system.

3. Check the area of the left or right front subwoofer speakers.

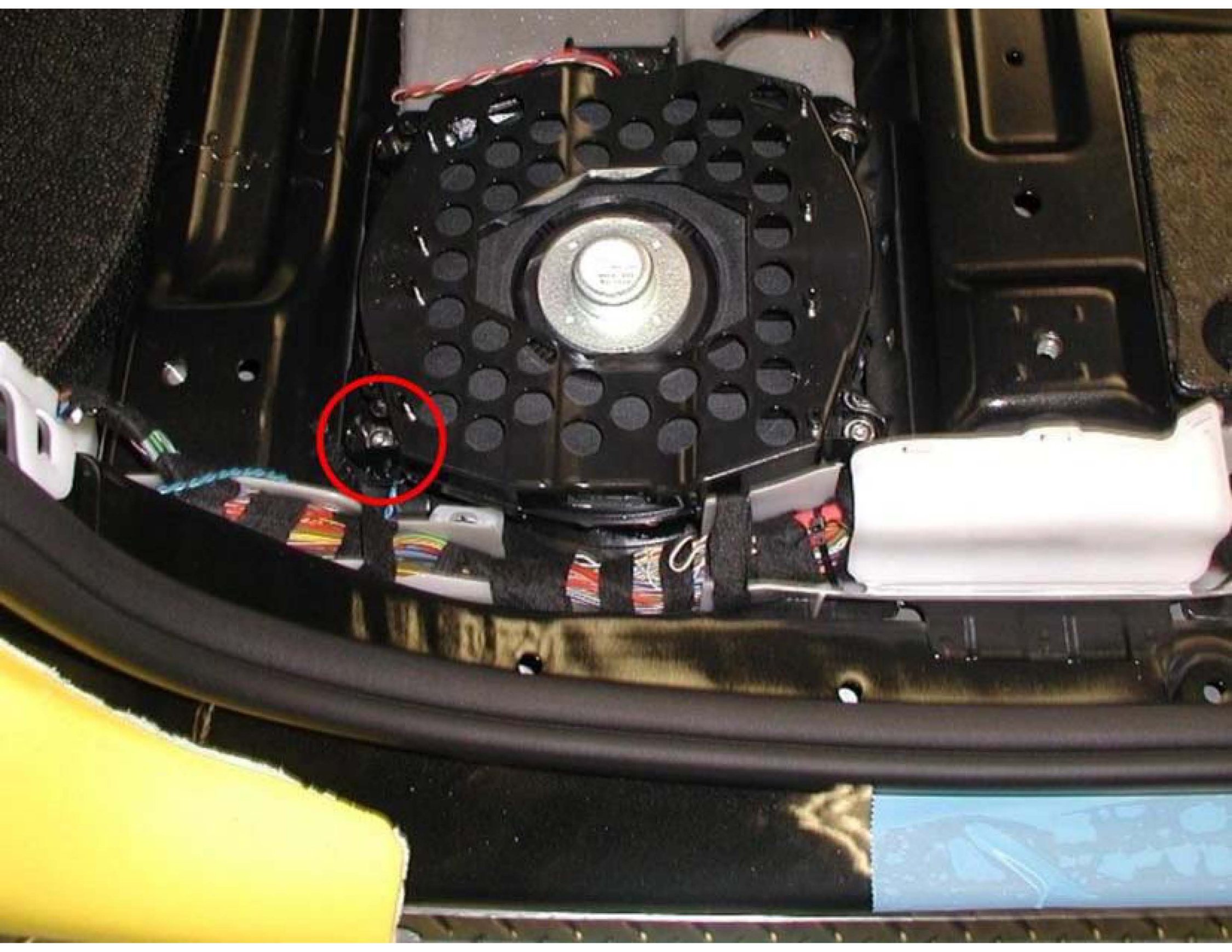

4. The wiring harness may be pinched by the subwoofer mounting bolts. Refer to the pictures attached to this service information.

5. Repair the shorted wiring as needed.

WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty.
Please refer to the latest KSD for all applicable labor operations and allowances.

If the appropriate labor operation is not contained in KSD, then a work time labor operation should be used.

Defect Code 61 11 19 79 00

Attachments





B611307Subwoofer_Right





B611307Subwoofer_Left.
