Condenser HVAC: Service and Repair

64 53 551 Removing And Installing Or Replacing Condenser For A/C System

Special tools required:







WARNING:
Risk of injury.
Refrigerant circuit is under high pressure.
Follow safety instructions for handling R 134a refrigerant.
Follow safety instructions for handling refrigerant oil.
Avoid contact with refrigerant and refrigerant oil.







IMPORTANT:
Risk of damage.
Restart engine only when A/C system has been correctly filled.
Follow instructions for opening and replacing parts in refrigerant circuit.
If A/C system is opened for more than 24 hours: Replace desiccant insert for A/C system







Necessary preliminary tasks:
- Drawing off, evacuating and filling the A/C system are not included in the time value given for this work operation
- Remove intake duct
- Remove radiator cover







Slacken screws (1) on both sides and pull fan cowl upwards.

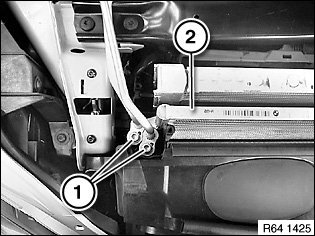

Release screws (1) and pull condenser (2) up and out.

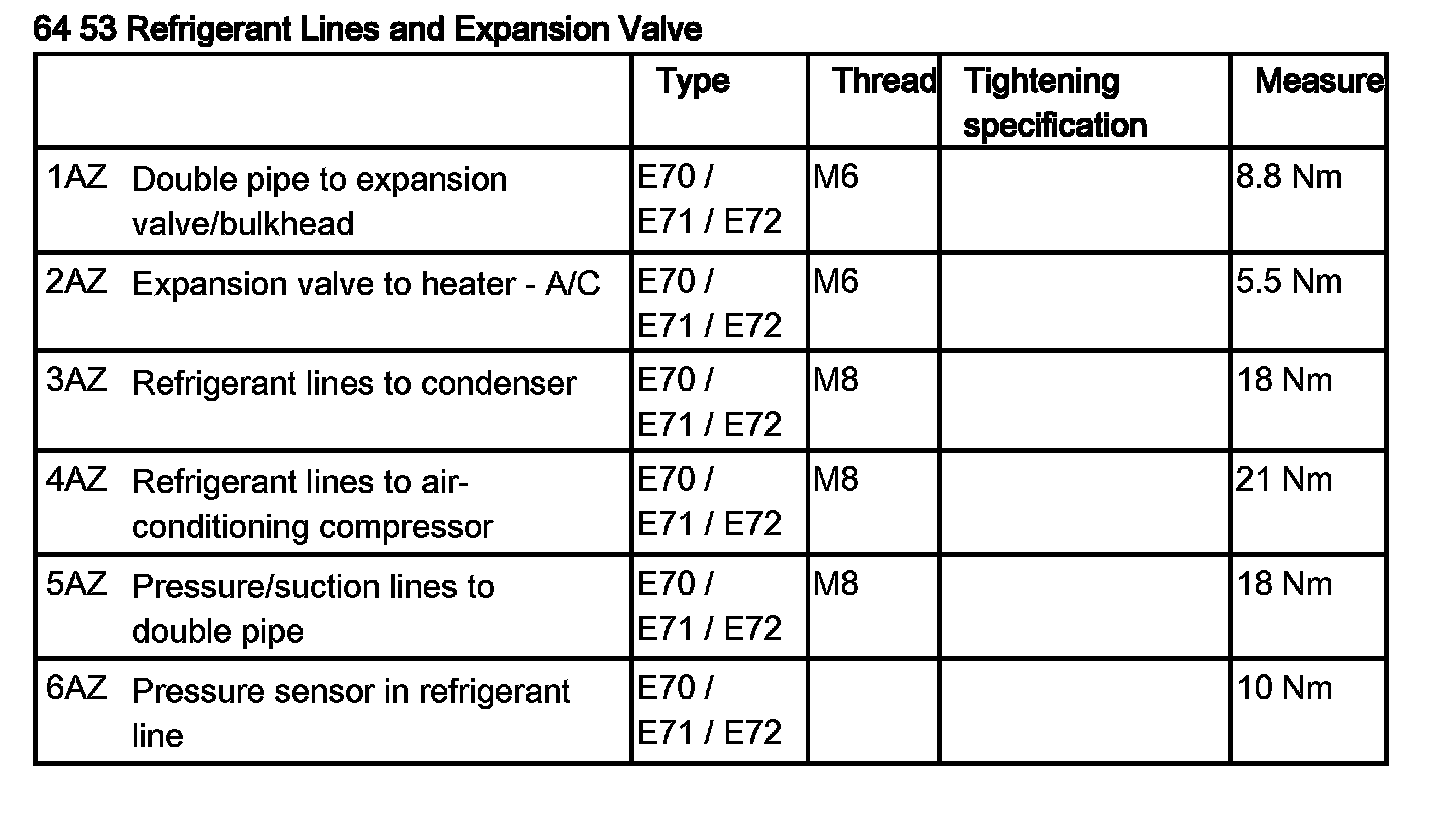

Tightening torque 64 53 3AZ.

Installation:
Replace sealing rings.
Use special tool 00 9 030 to mount sealing rings without damaging them.







After installation:
- Evacuate and fill A/C system
